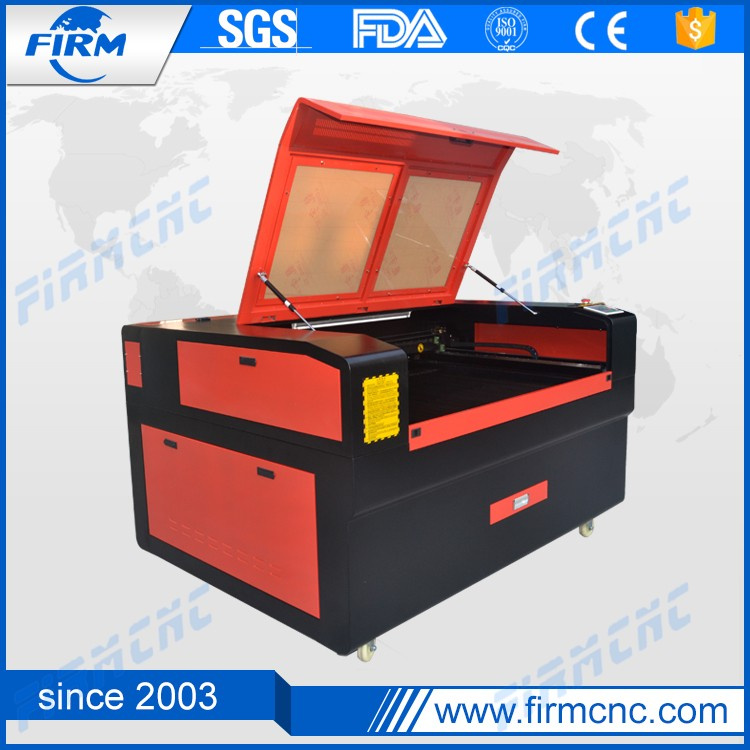

Blade Table Wood Laser Cutting Machine Engraving Laser Cutter
| Price: |
US $ 2000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FMJ1390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Plastic |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Control: |
Automatic |
| Certification: |
SGS, Ce |
| Laser Type: |
CO2 |
| Current: |
AC |
| Condition: |
New |
Product Description
Blade Table Wood Laser Cutting Machine Engraving Laser Cutter
We have different models laser machine.
such as FMJ4060,FMJ1260,FMJ1290,FMJ1390,FMJ1490,FMJ1325,etc.
equipped with reci laser tube, high precision belt driver, HIWIN gudie rial, water chiller etc.
all parts are in excellent quality.
Features
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
to protect the laser tube.
Technical specification| Model | FMJ1290 |
| Working area | 1200* 900mm |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100% software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ |
| Operating system | DSP off-line control system |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Temperature | 5°C-40°C |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube |

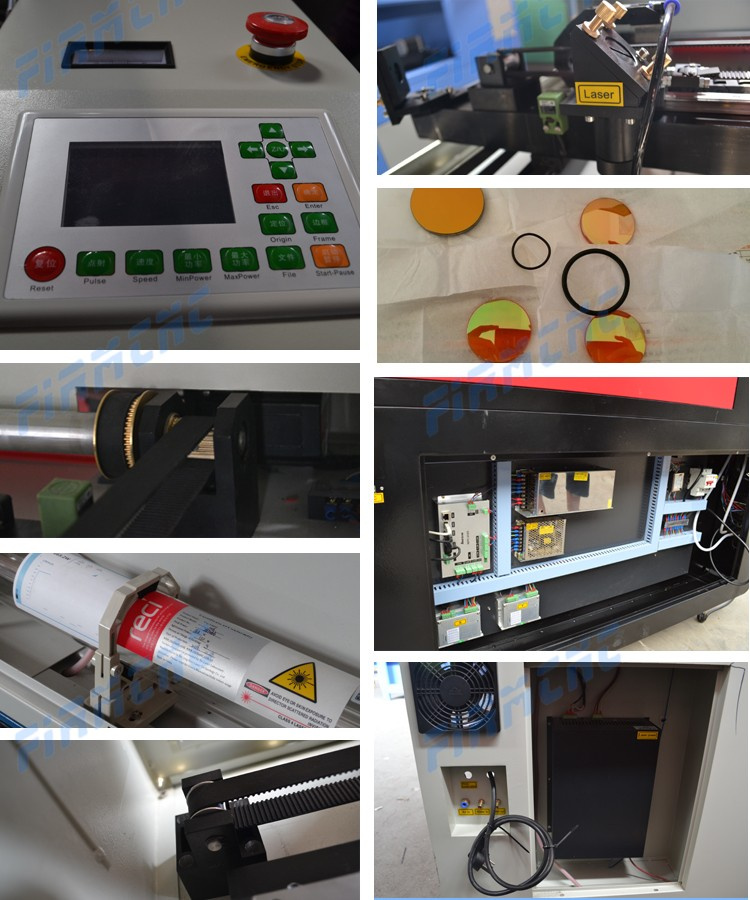

Main parts
Ruida control panel (optional Leetro control)
RECI co2 laser tube

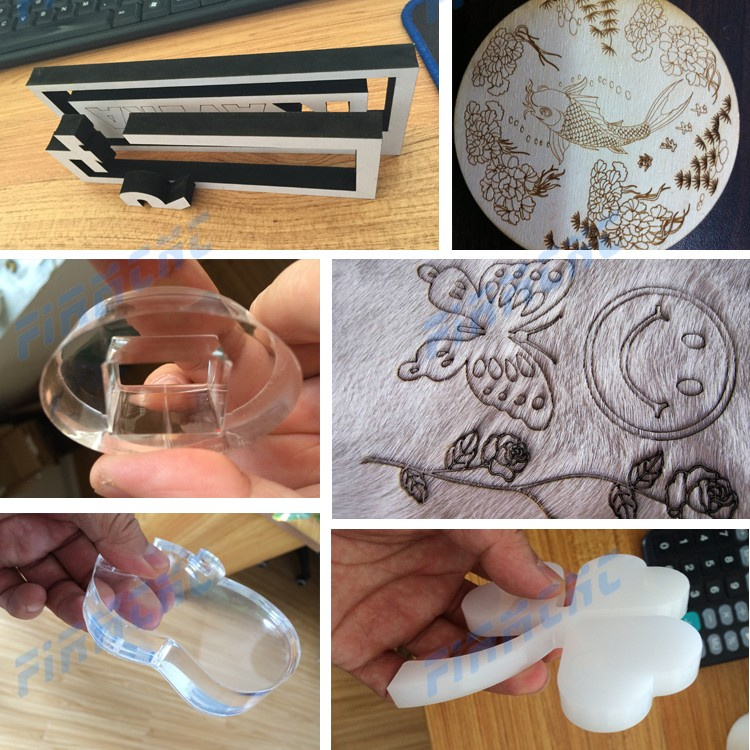

Applications
Applicable Materials: wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, and other non-metal materious,plastic,
cloth toys,leather ,computer embroidery cutting ,mould ,crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing ,paper products.
Typical Application: Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,applique,special-shaped trademark,
engraving and hollowing out patterns or designs on garment and leather

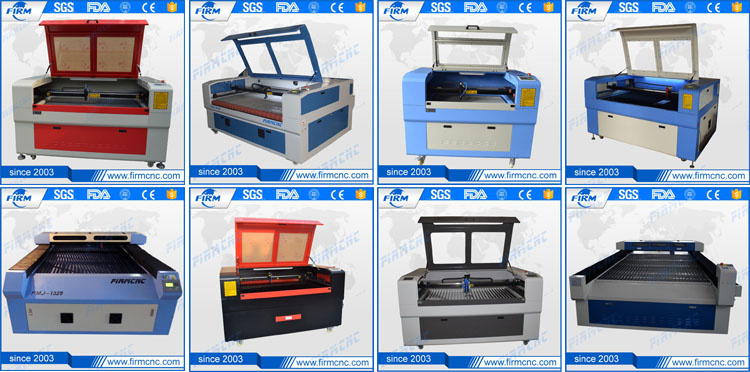

Other related laser machines for metal and nonmetal materials
# Standard co2 laser machine
# Fabric Leather laser cutting machine
# Mini laser machine
# FMJ1325 laser engraving cutting machine
# Metal laser cutting machine
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Packaging & Shipping
1. Water-proof plastic film package with foam protection in each corner.
2. Solid Seaworthy Wood Box Package with Steel Belt.
3. Save space as much as possible for container loading.
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091Welcome contact us if you need the high quality machine, best price and the reassuring after sale service.
Any questions, please do no hesitate to contact me.
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
