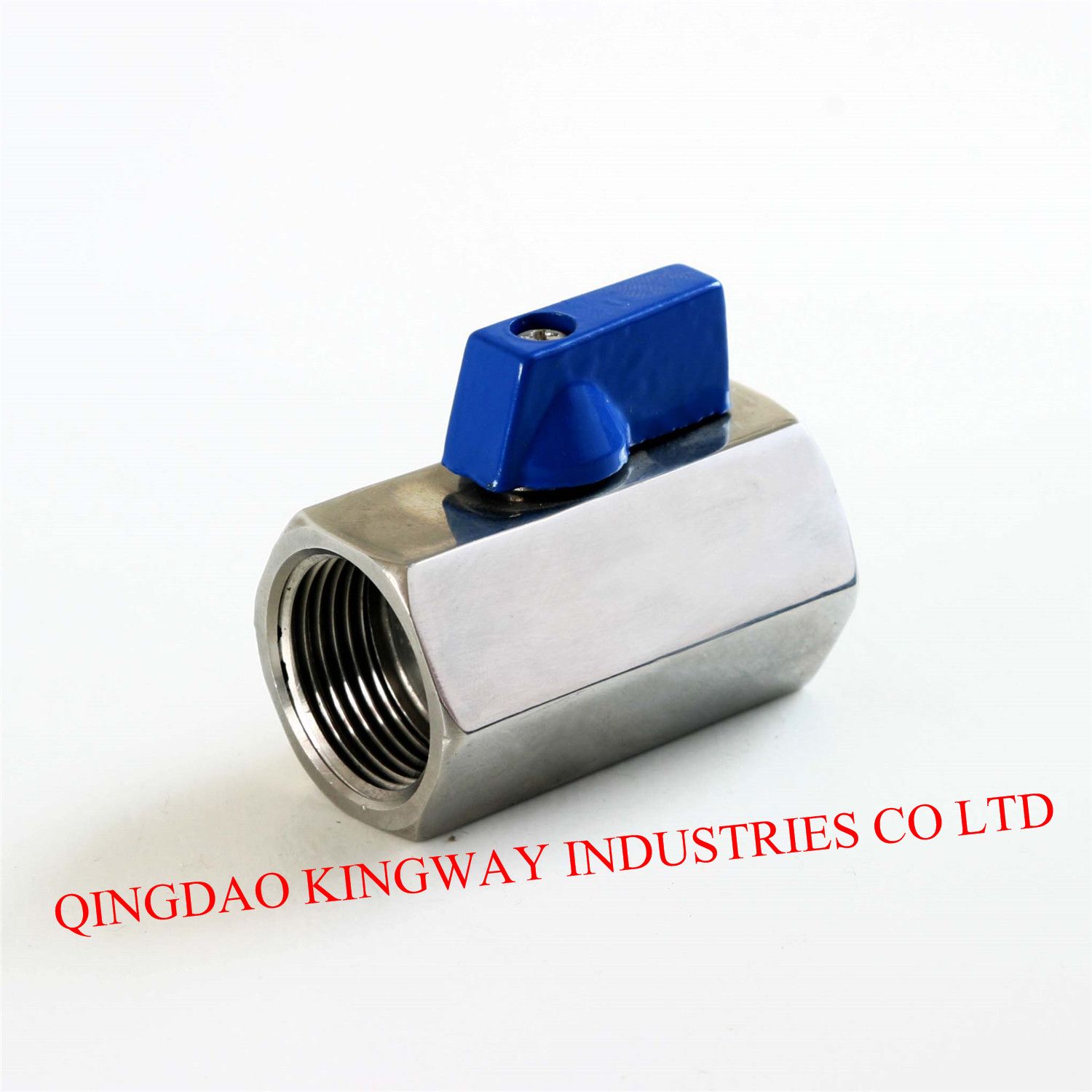

| Prod Model: |
BTM-1R |
| Size: |
1/4"-4" |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000psi |
Product Description
FEARURES:
1.1000PSI/PN63
2.Reduce Port
3.Investment Casting
4.Blow-out Proof Stem
5.Sanitary Design
6.PED97/23/EC(c∈ 0035)Approved
7.Casting Approved AD2000-W0
8.Thread: ASME B1.20.1 BS21. DIN2999/259,
ISO228-1, JIS B 0203, ISO7/1
9.Inspection Testing:AP1598, EN12266
| ITEM | DESIGNATION | MATERIAL |
| 1 | O-RING | NBR |
| 2 | SREM | SUS304 |
| 3 | BOLT | SUS304 |
| 4 | LEVER | ALUMINUMALLOY |
| 5 | BODY | CF8/CF8M |
| 6 | CAP | CF8/CF8M |
| 7 | BALL SEAT(A) | RPTFE |
| 8 | BALL | CF8/CF8M |
| 9 | BALL SEAT(B) | RPTFE |
| ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 42 | 42 | 46 | 54 | 65 |
Qingdao kingway Industries Co., Ltd. is one of the experienced manufacturerS & exporters
specialized in producing and exporting kinds of stainless steel valves as per international
standards such as API,ANSI,BS,DIN with the materials of CF8M,CF8,CF3,CF3M & WCB under
the quality system of ISO9001:200
Our advantage
1.We have more than 20 years experience in import and export
2.We Have Own Export License
3.We can do OEM and ODM products
4.The stable delivery time in 1-2 month
5.We market our products around the world---Canada,USA, Australia, Middle East, Southeast Asia
,Europe, South Africa and so on
6.Our price and quality is really competitive
Qingdao Kingway Industries Co., Ltd. Is one of the experienced manufacturers & exporters, specialized in producing and exporting all kinds of Valves & Fittings, Including Ball Valves, Gate Valves, Check Valves, Angle Valves, Foot Valves, Stop Valves, Strainers, Bibcocks & all series of Fittings, According to International Standards such as ANSI, BS, JIS, DIN, API, etc., under the Quality system of ISO9001: 2000.
Qingdao Kingway Industries Co., Ltd. Is especially strong in producing the other products as per the customers' special requirements & designs. Under the Spirit of " Quality First, Customer Highest, Service Excellent", Qingdao Kingway Industries Co., Ltd. Is sincerely hoping to set up a successful & long term cooperation relationship with customers from all over the world: Step by Step, Farther and Farther...
