| Prod Model: |
ST-V1057 |
| Size: |
3/4"-4" |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Clamped |

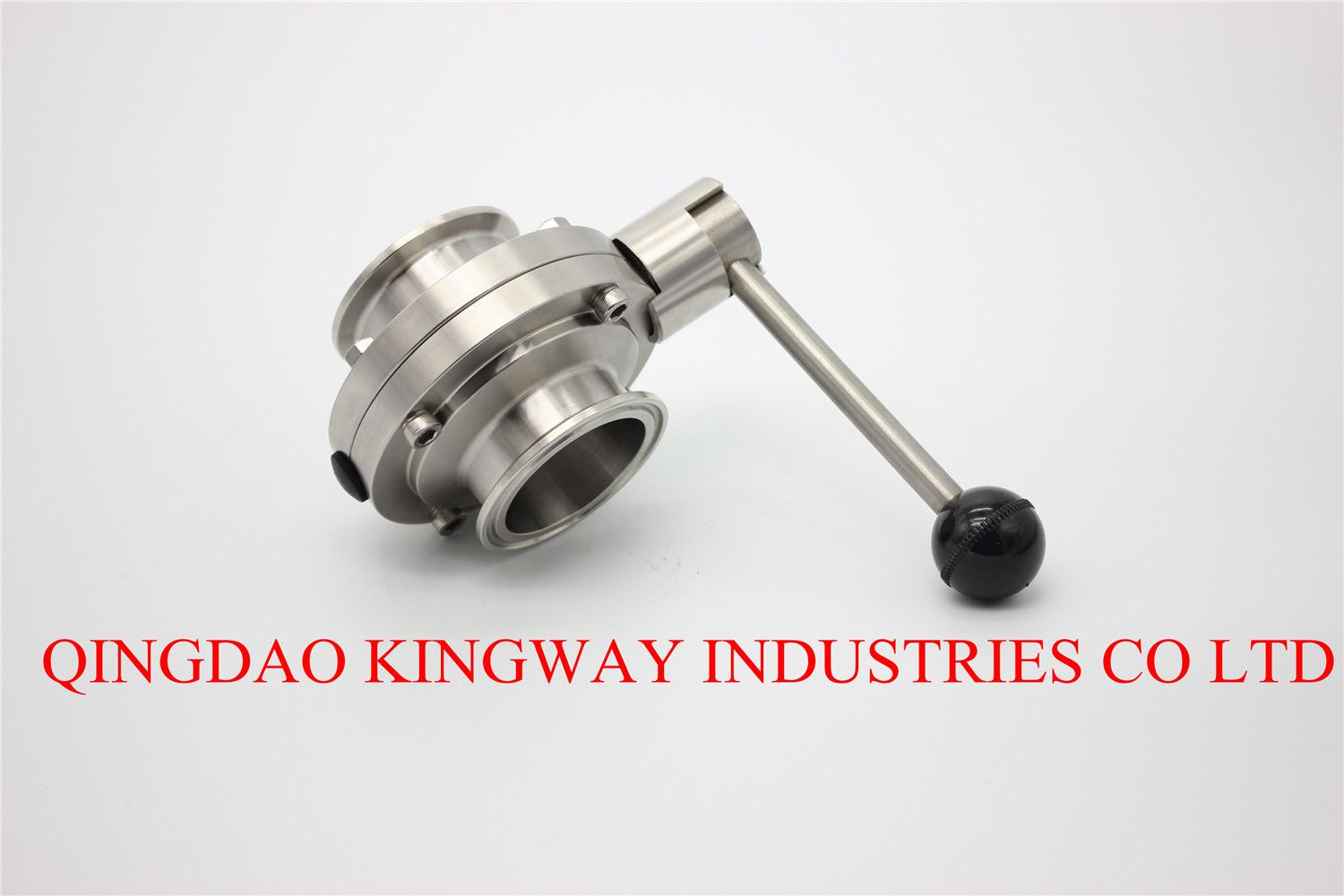

Product Description
(1)APPLICATION
It is widely used in beverage, Brewing, Oil Refinery, Cosmetic, Chemical Industries.
(2)DESIGN AND FEATURES
1.Free of maintenances
2.Compact and portable
3.Small operating torque
4.Gasket complies with PTFE FDA 177.2600
5.Hand lever can be installed on the side of the valve body, no matter of the flow direction.
6.Connection ends:Thread, clamp, weld, flange, DIN, SMS, RJT, FIL.
7.It can match with pneumatic and electric actuators
8.Material for the part contacted with media is AISI 304/316L.Other part is 304
9.Type of valves:One way ball valve, three-piece ball valve.Three-way ball valve
10.Type of cores:T type, L type, direct type
11.Material quality:AISI 304,316L
| SIZE | D | A | H | J | K |
| 3/4" | 25.4 | 72 | 86 | 126 | 8X8 |
| 1" | 50.5 | 72 | 90 | 126 | 8X8 |
| 1.1/4" | 50.5 | 83 | 92 | 126 | 8X8 |
| 1.1/2" | 50.5 | 87 | 104 | 133 | 10X10 |
| 2" | 64 | 101 | 113 | 144 | 10X10 |
| 2.1/2" | 77.5 | 121 | 128 | 160 | 11X11 |
| 3" | 91 | 135 | 138 | 220 | 11X11 |
| 3.1/2" | 106 | 140 | 144 | 220 | 11X11 |
| 4" | 119 | 170 | 161 | 284 | 14X14 |
Qingdao kingway Industries Co., Ltd. is one of the experienced manufacturerS & exporters
specialized in producing and exporting kinds of valves, fittings,flanges and some other steel products.
Our products have been well exported to Canada,USA, Australia, Middle East, Southeast Asia
,Europe, South Africa and so on
Our advantage
1.We have more than 20 years experience in import and export
2.We Have Own Export License
3.We can do OEM and ODM products
4.The stable delivery time in 1-2 month
5.We market our products around the world---Canada,USA, Australia, Middle East, Southeast Asia
,Europe, South Africa and so on
6.Our price and quality is really competitive
Qingdao Kingway Industries Co., Ltd. Is one of the experienced manufacturers & exporters, specialized in producing and exporting all kinds of Valves & Fittings, Including Ball Valves, Gate Valves, Check Valves, Angle Valves, Foot Valves, Stop Valves, Strainers, Bibcocks & all series of Fittings, According to International Standards such as ANSI, BS, JIS, DIN, API, etc., under the Quality system of ISO9001: 2000.
Qingdao Kingway Industries Co., Ltd. Is especially strong in producing the other products as per the customers' special requirements & designs. Under the Spirit of " Quality First, Customer Highest, Service Excellent", Qingdao Kingway Industries Co., Ltd. Is sincerely hoping to set up a successful & long term cooperation relationship with customers from all over the world: Step by Step, Farther and Farther...
