3000*1500 mm Steel Sheet & Pipes CNC Cutting Machine Metal Fiber Laser Cutter

Name: 3000*1500 mm Steel Sheet & Pipes CNC Cutting Machine Metal Fiber Laser Cutter
Brand: tool-buy.com
SKU: 729183472
Availability: InStock
Rating: 4.6 (50 reviews)

Price:	US $ 40000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

WUHAN KING'S LASER CO., LTD.

Showroom Product Company Profile

Prod Model:	RS-CF3015SS

Product Description

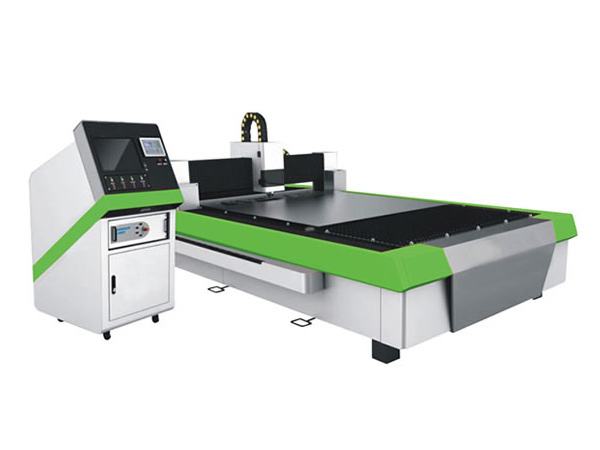

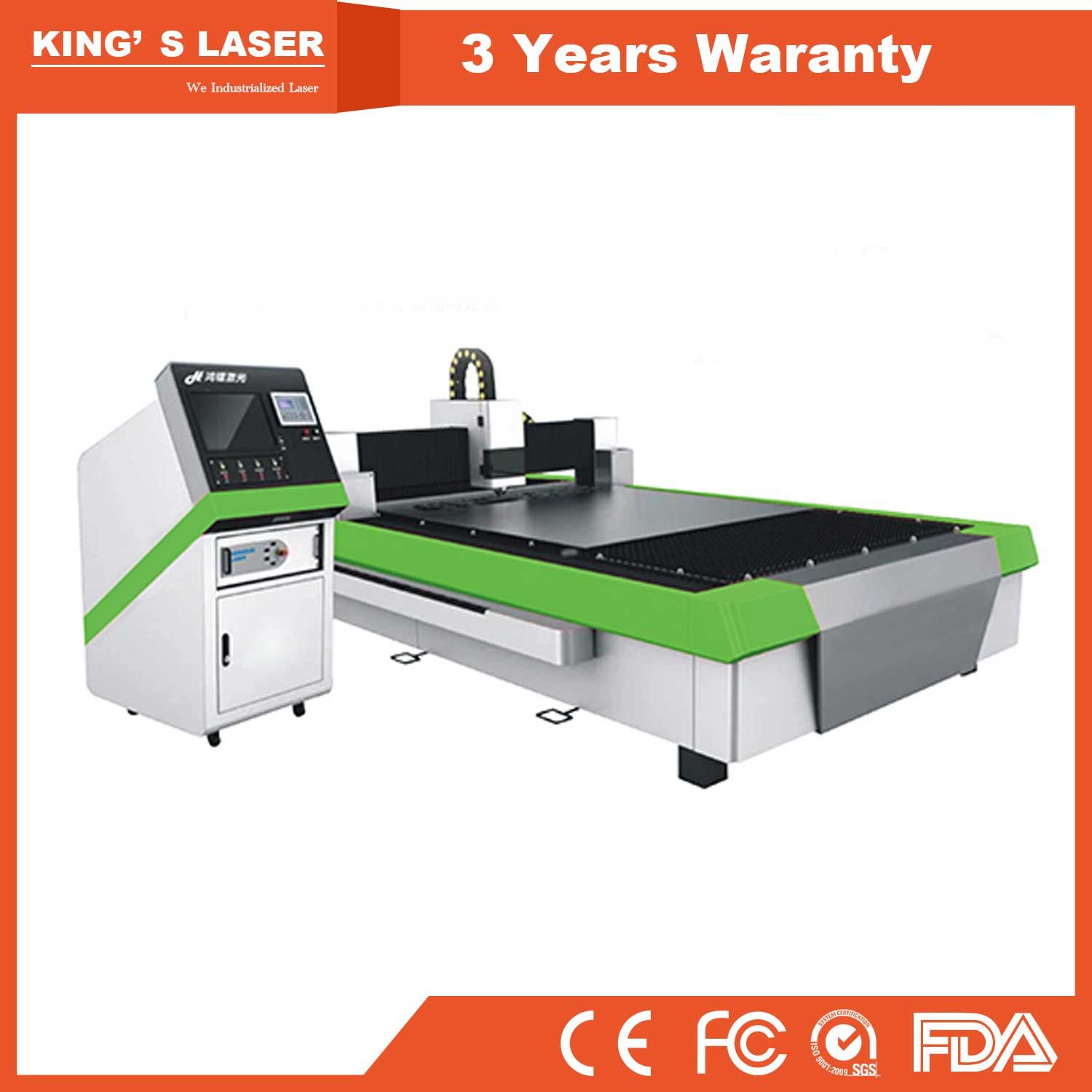

3000*1500 mm Steel Sheet & Pipes CNC Cutting Machine Metal Fiber Laser Cutter
RS-CF3015S 500W 750W 1000W 1500W 2000W 3000W

Features:

1.Adopts laser CNC system, ensure high precision, high efficiency under high running speed.
2.Imported laser cutting head, Non-contact capacitance sensor, strong security measures, high stability.
3.Provide auxiliary gas auto changing system (pressure-air, nitrogen, oxygen) for processing different type of materials
4.Cutting bed equipped gathering unit for recollecting and processing metal powder.
5.Advanced programming jacking software (including material management,cutting optimization functions), profound performance for punching, sharp point processing, sophisticated laser cutting processing database, operator only need to match the cutting parameters according to the materials which makes the operation smarter and easier.
6.Optimized optical lens, special designed nozzle and sensing technology, ensure the cutting process more smoothly and steadily.
7.Adopts IPG Germany fiber laser source

Specification:

Laser type:	Fiber laser
Laser output power	500W-3000W
Laser safety class	class 4
Wave length:	1064nm
X,Y axis positioning accuracy:	±0.03mm
Repeated positioning accuracy:	±0.05mm
Servo type:	AC servo
Acceleration	1.5G
Max.travelling speed:	80-150m/min
X axis travel:	3000mm
Y axis travel:	1500mm
Z axis travel:	100mm
Protection level:	IP65
Continuous working hrs:	24hrs
Working size:	<1500mm×3000mm
Power supply:	380V?50Hz/50A

Application:

Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials

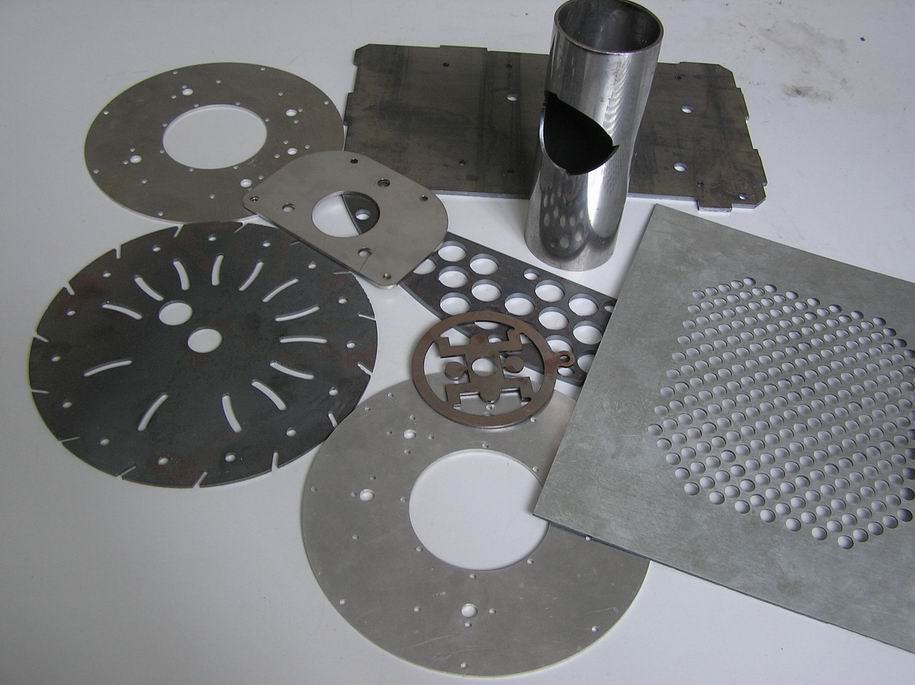

Samples

Materials:

Mild steel

Aluminum

Stainless steel

Copper

Brass

Titanium

Zinc

Coated steel
