| Price: | US $ 30000-200000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | RS-FC6040P |
|---|
1 High precision;
2 High speed;
3 Small size
4 Smooth cutting surface;
5 CCD automatic positioning
5 Dust-proof enclosed machine body
| Laser type: | Fiber laser |
| Laser output power | 500W-2000W |
| Laser safety class | class 4 |
| Wave length: | 1064nm |
| X,Y axis positioning accuracy: | ±0.03mm |
| Repeated positioning accuracy: | ±0.05mm |
| Servo type: | AC servo |
| Acceleration | 1.5G |
| Max.travelling speed: | 80-150m/min |
| X axis travel: | 600mm |
| Y axis travel: | 400mm |
| Z axis travel: | 100mm |
| Protection level: | IP65 |
| Continuous working hrs: | 24hrs |
| Working size: | <600mm×400mm |
| Power supply: | 380V?50Hz/50A |

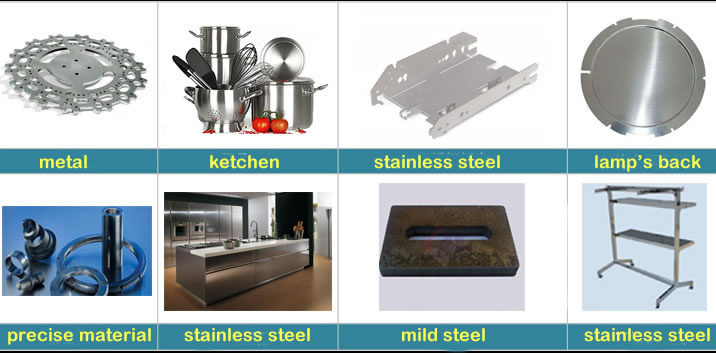

Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials
Materials:
Mild steelAluminum
Stainless steel
Copper
Brass
Titanium
Zinc
Coated steel
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
