Prod Model: |
RS-FC3015S |
Weight: |
5ton |
Waranty: |
2years |
Driving Way: |
Imported Servo Motor |
Cutting Area: |
1500*3000mm/1500*4000mm |
Certification: |
Ce, SGS, FDA |
Graphic Format: |
Ai, BMP, Dst, Dwg, Dxf, Dxp. Las, Plt |
Cutting Speed: |
0-60m/Min |
Minimum Line Width: |
0.15mm |
Laser Source: |
500W/1000W/2000W Ipg Laser Generator(Optional) |
Product Description

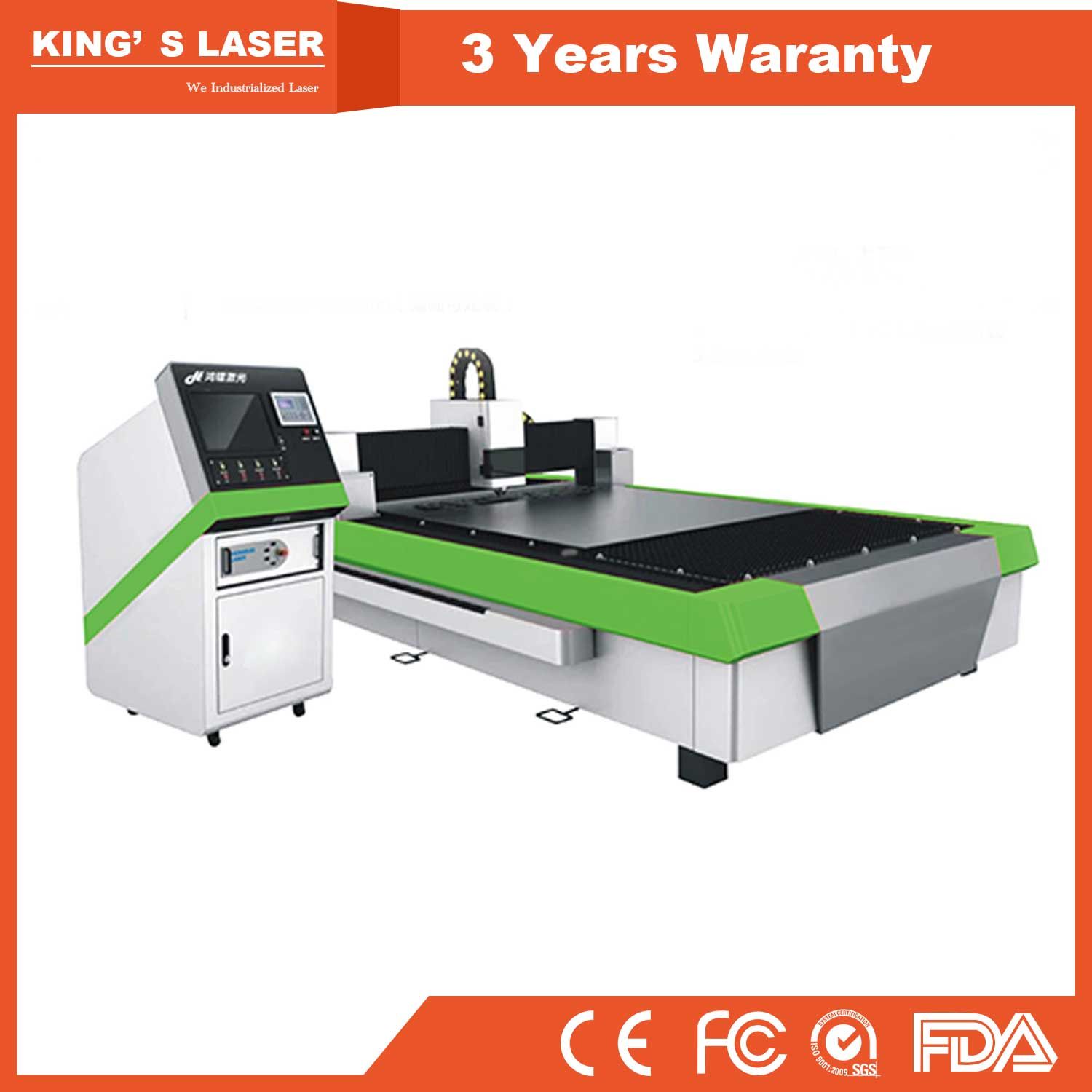

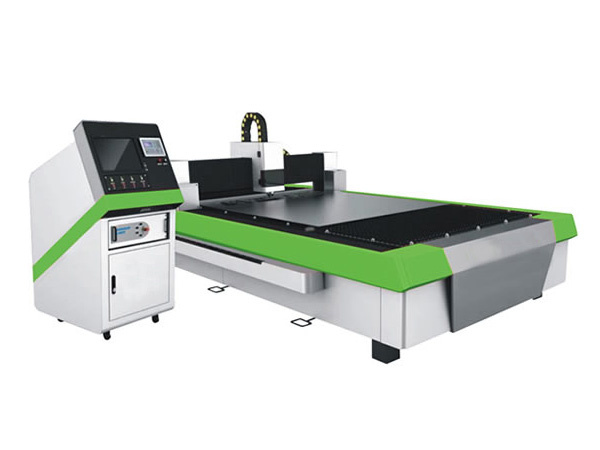

Metal Sheet Cutting Machine cnc Fiber Laser Cutter
RS-CF3015 500W 750W 1000W 1500W 2000W
Germany laser source | Germany Cutting head | 3 warranty years
Introduction
300W-3000W Fiber laser cutting machine with working area 3000mm*1500mm mianly used for laser cutting on metal sheets and pipes with high precision.Machine Features:
High Performance LAFERT Bus Motors from Italy, completely bus line control, realizing precise control
Auto Focus laser head from Switzerland with anti-collision function
ALPHA Rack&Pinion from Germany, high quality motion parts
World famous IPG laser generator
Germany Beckhoff CNC system, the most advanced control system
Direct laser control with PWM (Pulse width Modulation)
14 inch LCD screen with HD pixel resolution
Automatic Gas Assist System
Pallet shuttle system with two 3000mm by 1500mm working pallets
Windows7 Driven Software with materials Parameters Database
Fully interlocked Safety Enclosure on cutting table
Advanced Beckhoff operating software Twincat, supporting powerful function
CNC Control System
High stability
IWS type service and parts replacement
CNC system for complex tasks
High performance and flexibility, especially for high-speed cutting
ParameterTotal weight | Tons | 10 |
Total Electrical Power Consumption | Kw | 26.5 |
Laser Type | | CW fiber laser |
Laser Wavelength | nm | 1070 |
Resonator Power | w | 1000 | 1500 | 2000 | 3000 |
Fiber Core diameter | um | 100 |
Maximum Cutting Thickness | Mild steel | mm | 10 | 14 | 18 | 20 |
Stainless steel | mm | 6 | 7 | 8 | 10 |
Aluminum | mm | 3 | 4 | 5 | 6 |
Net Cutting Diameter | mm | 1500*3000 |
X.Y Axis Drive system | | Rack and Pinion |
Z Axis Drive System | | Ball screw |
Z Axis stroke | mm | 130/230 |
Maximum Simulation X,Y Axis Speed(Idle speed) | M/min | 150 |
Maximum Acceleration X,Y Axis Speed | G | 1.5G |
Position Accuracy | mm/M | 0.02 |
Repeatablity Accuracy | mm/M | 0.03 |
Cooling Style | | water |
Bearing Weight | kg | 1000 |
Assistant Gas | | Oxygen,Nitrogen, Compressor Air |
Dimension | MM | 8600*2800*2000mm |
Continuous Working Time | Hrs | 24 |
Service
Based on our customer-oriented marketing strategy, we set up Marketing Management Center which including National Market Department, Oversea Market Department and Customer Service Department. All these departments have qualified technicians and engineers who provide active pre-sale, sale and after-sale services within the shortest response time.We offer 24 hours after-sales service, any kind of technical support are available for you. Including TeamViewer online, video guiding, telephone, skype.
Pacakge1.Durable wooden case or as per required.2.The delivery lead time would be 30-40 working days after recieving the payment.
3.As for the wholsalers/distributors, we could send the cargo by sea or by railways via reliable forwarder
About Us
KING'S laser is specialized in design, R&D, and production of laser machines in the field of laser marking,laser engraving, laser cutting and laser welding.
Since foundation, with strict management and innovative spirit, we have successfully developed a number of advanced expertise. Our products include laser marking machine,laser cutting machine, laser welding machine, as well as the whole set of production solutions designed for clients.
Currently, our products have been exported to India, S Korea, Pakistan, Spain, Slovenia, Russia, Italy, France, Chile, Argentina and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries. We not only provide clients with excellent satisfying equipments but also timely lifetime service, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
We not only provide clients excellent satisfying equipments but also timely lifetime services, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
