Product Description

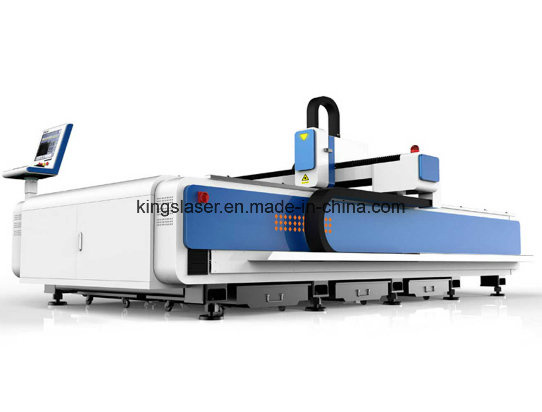

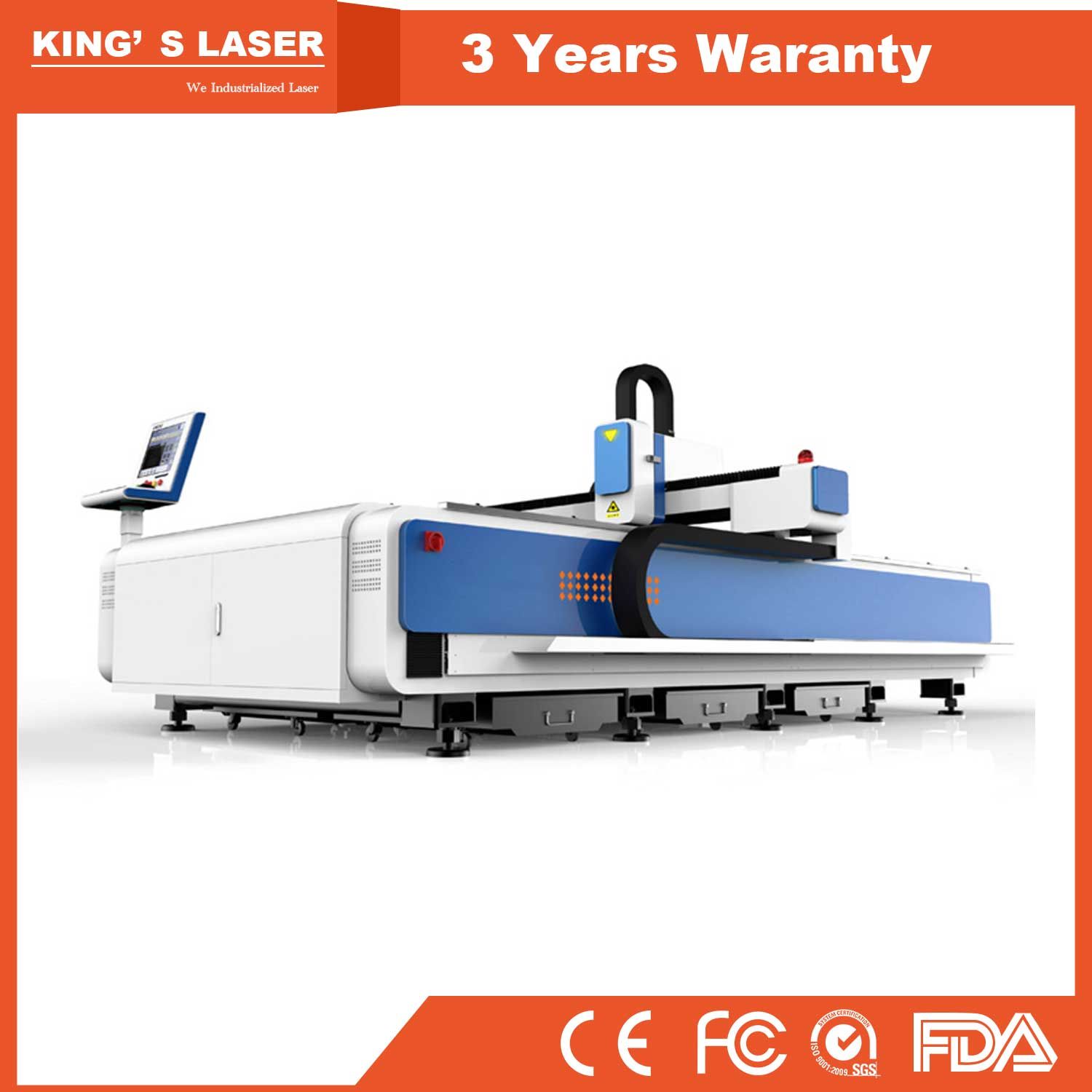

Cnc Fiber Laser Cutter Machine For 6m Metal Tube
Germany laser source | Germany Cutting head | Fast delivery | 3 warranty years
Features:1.Adopts laser CNC system, ensure high precision, high efficiency under high running speed.
2.Imported laser cutting head, Non-contact capacitance sensor, strong security measures, high stability.
3.Provide auxiliary gas auto changing system (pressure-air, nitrogen, oxygen) for processing different type of materials
4.Cutting bed equipped gathering unit for recollecting and processing metal powder.
5.Advanced programming jacking software (including material management,cutting optimization functions), profound performance for punching, sharp point processing, sophisticated laser cutting processing database, operator only need to match the cutting parameters according to the materials which makes the operation smarter and easier.
6.Optimized optical lens, special designed nozzle and sensing technology, ensure the cutting process more smoothly and steadily.
7.Adopts IPG Germany fiber laser source
Specification: | Laser type: | Fiber laser |
| Laser output power | 500W-3000W |
| Laser safety class | class 4 |
| Wave length: | 1064nm |
| X,Y axis positioning accuracy: | ±0.03mm |
| Repeated positioning accuracy: | ±0.05mm |
| Servo type: | AC servo |
| Acceleration | 1.5G |
| Max.travelling speed: | 80-150m/min |
| X axis travel: | 3000mm |
| Y axis travel: | 1500mm |
| Z axis travel: | 100mm |
| Protection level: | IP65 |
| Continuous working hrs: | 24hrs |
| Working size: | <1500mm×3000mm |
| Power supply: | 380V?50Hz/50A |
Application:Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials
Materials:
Mild steel
Aluminum
Stainless steel
Copper
Brass
Titanium
Zinc
Coated steel
Welcome to visit us!
Contact person
Vince Xu
+86 13277998363
KING'S laser is specialized in design, R&D, and production of laser machines in the field of laser marking, laser engraving, laser cutting and laser welding. Since foundation, with strict management and innovative spirit, we have successfully developed a number of advanced expertise. Our products include laser marking machine, laser cutting machine, laser welding machine, as well as the whole set of production solutions designed for clients. Currently, our products have been exported to India, S Korea, Pakistan, Spain, Slovenia, Russia, Italy, France, Chile, Argentina and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries. We not only provide clients with excellent satisfying equipments but also timely lifetime service, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
