| Prod Model: |
SJZ |
| Rated Capacity: |
500kg |
| Max Platheight: |
7000-11000mm |
| Min Paletheight: |
1125-2350 |
| Platform Size: |
2150*1140 |
| Lift Motor Power: |
48/2.2 V/Kw |
| Drive Motor Power: |
48/2.5 V/Kw |
| Gear Ratio: |
1:22 |
| Battery: |
48/56*4 V/Ah |
| Charge: |
48V/10A |
| Netweight: |
1590kg |
| Application: |
Building Crane |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
AC |
| Running Mode: |
Moving |
Product Description
1.WHITE brand hydraulic motor, stable performance;
2.TROJAN large capacity maintenance free battery, long working hours.
3.Foldable guardrail, easy for stroage and transportation.
4.Extended platform,wide working scope.
Introduction and technical characteristicsIt makes your work more safety and more easier. For example:Indoor and outdoor cleaning (ceilings, curtain walls, windows, eaves, raincoats, chimneys, etc.), installation and maintenance of billboards, installation and maintenance of street lights and traffic signs. This aerial work platform platform is characterized by small and flexible, convenient and quick.You can use a lift platform instead of scaffolding to achieve the height you need to solve your problems. At the same time, you can also save your costs and valuable time.It had the following features:
1.safety certificateEN280 standard, CE certification.2)it can walk when person is on platformSelf-propelled scissor-type aerial work platform, it has the function of automatic walking, in different working conditions, fast, slow walking, just one person at high altitude operation can be completed continuous lifting, forward, And other actions, the more traditional hydraulic platform greatly improve the efficiency, reduce the number of operators and labor intensity. Particularly suitable for airport terminals, stations, docks, shopping malls, sports venues, residential properties, factories and mines and other large-scale high-altitude continuous operation 3,)safety protectionThe machine installed a horizontal alarm, when the vehicle tilt more than 3 degrees, the machine automatically enter the protection system, allowing only the machine has a downward action, to the safe state, before the normal use. Platform in the bottom of the car with a safety board device, as long as the platform rises, both sides of the safety board then open in working condition, so that the distance from the ground to reduce the height of walking due to uneven ground caused by dumping accident. The platform is equipped with a tubing explosion protection system at the cylinder.4,)Step-less speed change Only one person can operate it. All the action on the table with the operating handle control, the motor for the variable speed. Effectively extending the battery and motor life, the motor only consumes the energy at work.5),Large angle steering systemThe design of large angle steering system, making the machine has excellent flexibility6),Disc brake systemThe platform uses a hydraulic disc brake system, the machine is in a stopped state, the wheel is always in the braking state, and can be 6 degrees slope when the reliable braking. 7),Intelligent charging systemIt is equipped with a fully automatic charger, can automatically complete the entire process of charging, the battery will automatically stop charging after charging. 8),extended platform Platform can be removed, expanding the scope of work, to meet the special needs of some users.9),overload protection
1.Products advantages
- Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
- Moving forward,turning around and lifting up are easily operated.
- Short chargeable time and long dural time of the battery.
- Easily moved, spacious working platforms, smooth working condition and high working efficiency
2. Moving method
- The chargeable battery provides the power to move and steer around.
3. Lifting Power
- The chargeable battery provides the power to raise up the lift platforms.
- Working heights rangs from 5.0M,5.9M.7.8M,8.0M,10M,12M,13.8M,15.7M
- It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
PRODUCT INFORMATION:| Model | / | 3 | 3.9 | 5.8 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 |
| safe work capacity | kg | 240 | 240 | 380 | 380 | 230 | 320 | 230 | 200 |
safe work capacity of
extended platform | kg | 100 | 100 | 113 | 113 | 113 | 113 | 113 | 113 |
| Ma. Person No. | / | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Max. work height | m | 5 | 5.9 | 7.8 | 8 | 10 | 12 | 13.8 | 15.7 |
| Max.Platform height | m | 3 | 3.9 | 5.8 | 6.0 | 8.0 | 10.0 | 11.8 | 13.7 |
| Length | m | 1.3 | 1.3 | 1.81 | 2.43 | 2.43 | 2.48 | 2.43 | 2.48 |
| width | m | 0.76 | 0.76 | 0.76 | 0.81 | 0.81 | 1.15 | 1.15 | 1.29 |
| height (unfolded guardrail ) | m | 1.86 | 1.94 | 2.16 | 2.18 | 2.30 | 2.47 | 2.55 | 2.77 |
| 2.77height (folded guardrail ) | m | 1.5 | 1.59 | 1.82 | 1.85 | 1.87 | 1.99 | 2.03 | 2.37 |
| work platform size | m | 1.15*0.7 | 1.15*0.7 | 1.67*0.74 | 2.27*0.81 | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*0.82 |
| extended platform size | m | 0.55 | 0.55 | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 |
| Min. Ground clearance (folded) | m | 0.05 | 0.05 | 0.09 | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 |
| Min. Ground clearance (lifting) | m | 0.05 | 0.05 | 0.019 | 0.019 | 0.019 | 0.019 | 0.019 | 0.019 |
| wheel base | m | 1.03 | 1.03 | 1.36 | 1.87 | 1.87 | 1.87 | 1.87 | 1.87 |
| Min. turning radius | m | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Min. turning radius | m | | | 1.64 | 2.10 | 2.10 | 2.2 | 2.2 | 1.98 |
| Lift motor | kw/v | 0.8/24 | 0.8/24 | 3.3/24 | 3.3/24 | 3.3/24 | 4.5/24 | 4.5/24 | 3.3/24 |
| driving speed (folded) | km/h | 4 | 4 | 3.0 | 3.0 | 3.0 | 3.5 | 3.0 | 3.0 |
| ()driving speed (lifting) | km/h | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| 0.8 ascend/descend speed | sec | 28/20 | 32/21 | 18/22 | 24/54 | 28/40 | 45/36 | 84/38 | 84/60 |
| battery | V/Ah | 2*12/55 | 2*12/55 | 4.*6/210 | 4*6/225 | 4*6/225 | 4*6/125 | 4*6/240 | 4*12/300 |
| charger | V/A | 24/11 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 |
| Max. Grade ability | % | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. Working angles | / | 1.5/2° | 1.5/2° | 1.5/3º | 1.5/3º | 1.5/3º | 2-3º | 1.5º/3º | 1.5º/3º |
| Inner and outer radius of tire | mm | 230*80 | 230*80 | 230*80 | 230*80 | 305*102 | 380*127 | 380*127 | 380*127 |
| overall weight | kg | 630 | 660 | 1400 | 1945 | 2100 | 2430 | 2830 | 3130 |

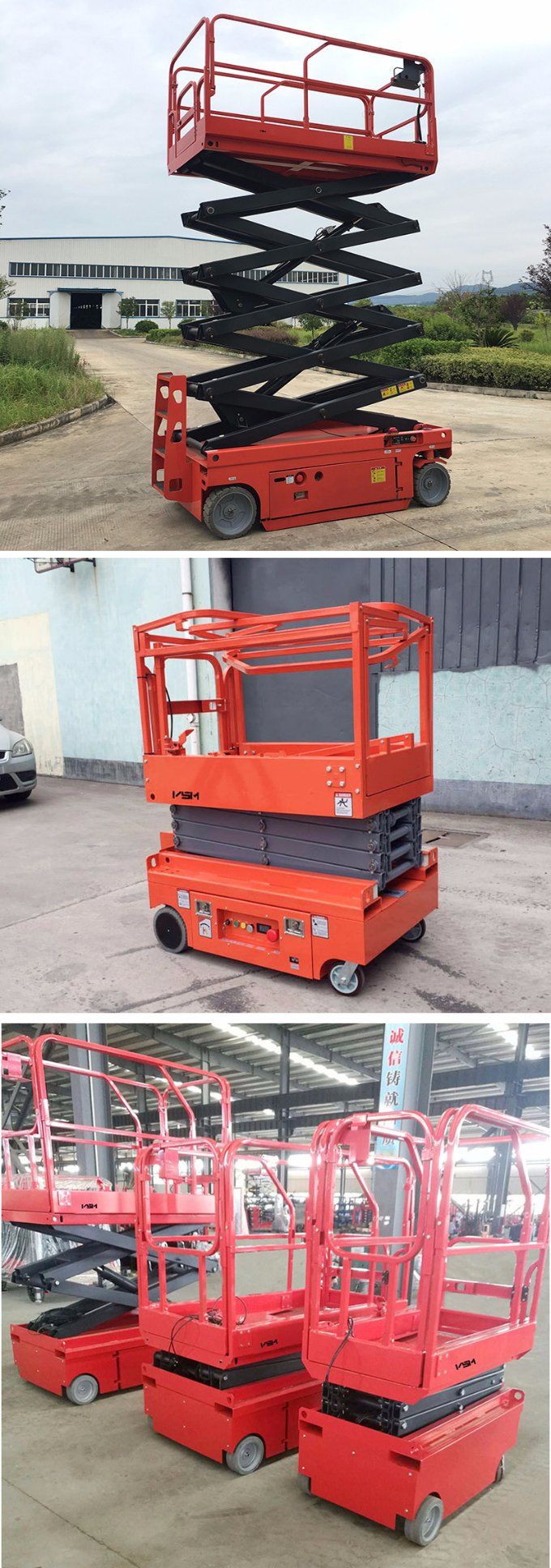

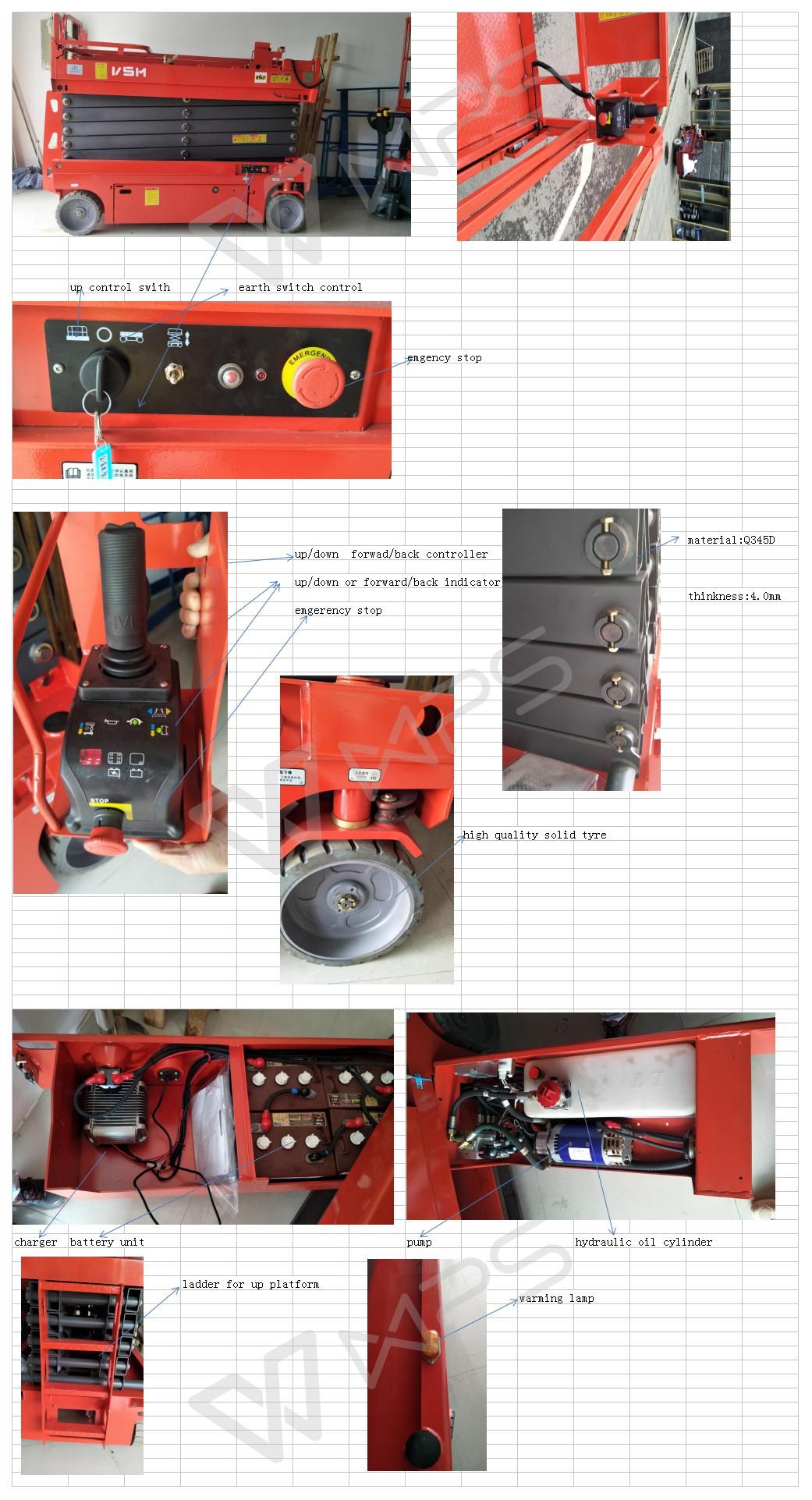

DETAILED IMAGES

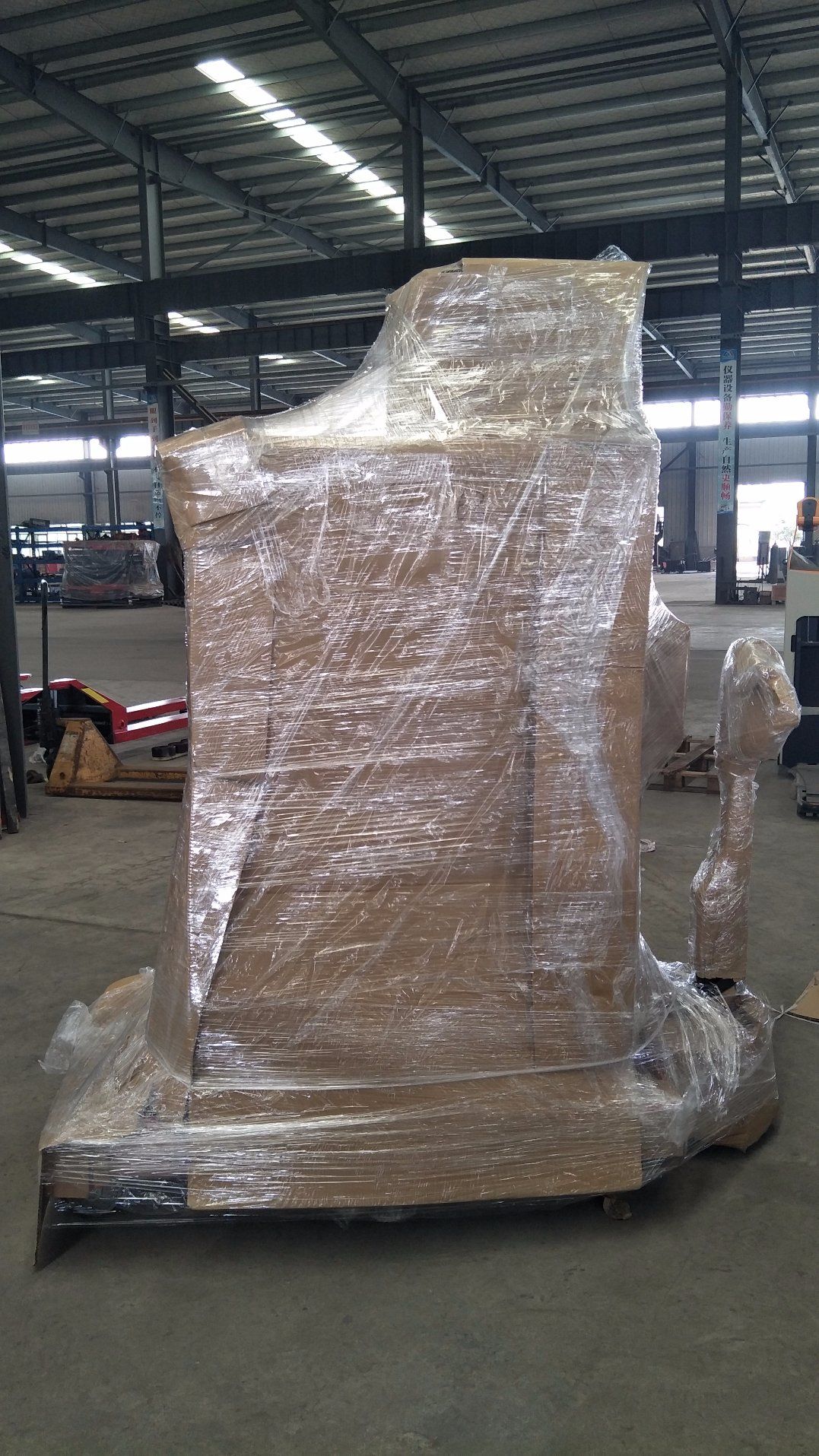

Packing:standard packing or according to customer's requirement.
COMPANY INFORMATION:
Our Services:
1) We can design the hydraulic scissor lift table as per your requirement.
2) The exactly hydraulic scissor lift will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 12 months warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
Mobile: 86-153-4226-1630
Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.
The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.
We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.
We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home and abroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.
As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.
