| Prod Model: |
SJZ |
| Drive Unit: |
Electric |
| Wheel Material: |
PU |
| Whole Height: |
2556mm |
| Whole Weight: |
1660 |
| Voltage: |
48V |
| Driving Speed Laden/Unlenden: |
4km/6h |
| Max Gradient Performance Laden/Unladen: |
4/6% |
| Battery Type: |
AC |
| Pump Motor Rating: |
2.2 |
| Net Weight: |
1660kg |
| Power: |
AC Motor |
| Load Capacity: |
≤1T |
| Load Center: |
550 |
| Lift Height: |
1600-3000 |
Product Description
1.Folding guardrails conforms with international safety standard, which can effectively protect the safety of high-altitude operation.

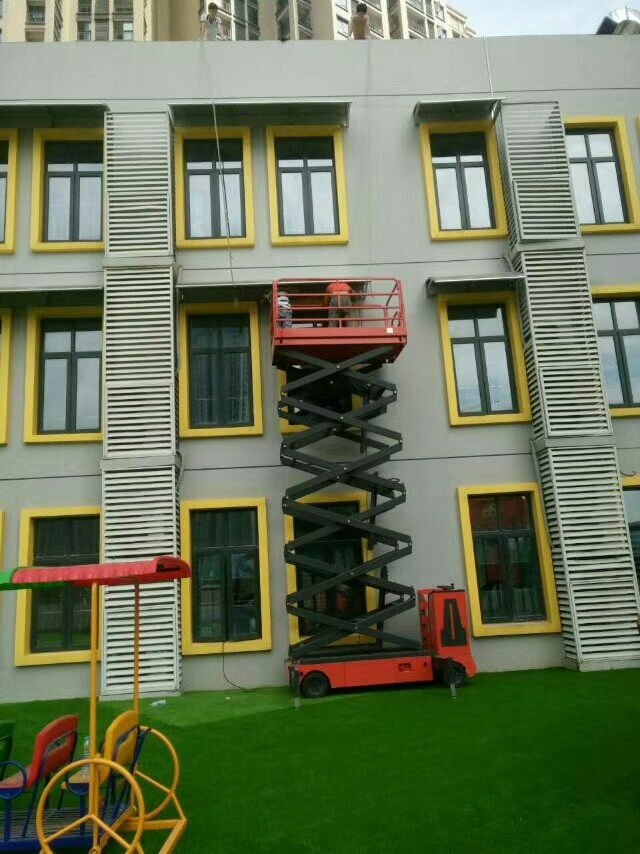

2.The operator can control the movement,lifting and descending to realize continuous operation at high altitudes.
3.Installed with emergency stop switch to protect personal safety.
color: yellow or red, can be customerlized.

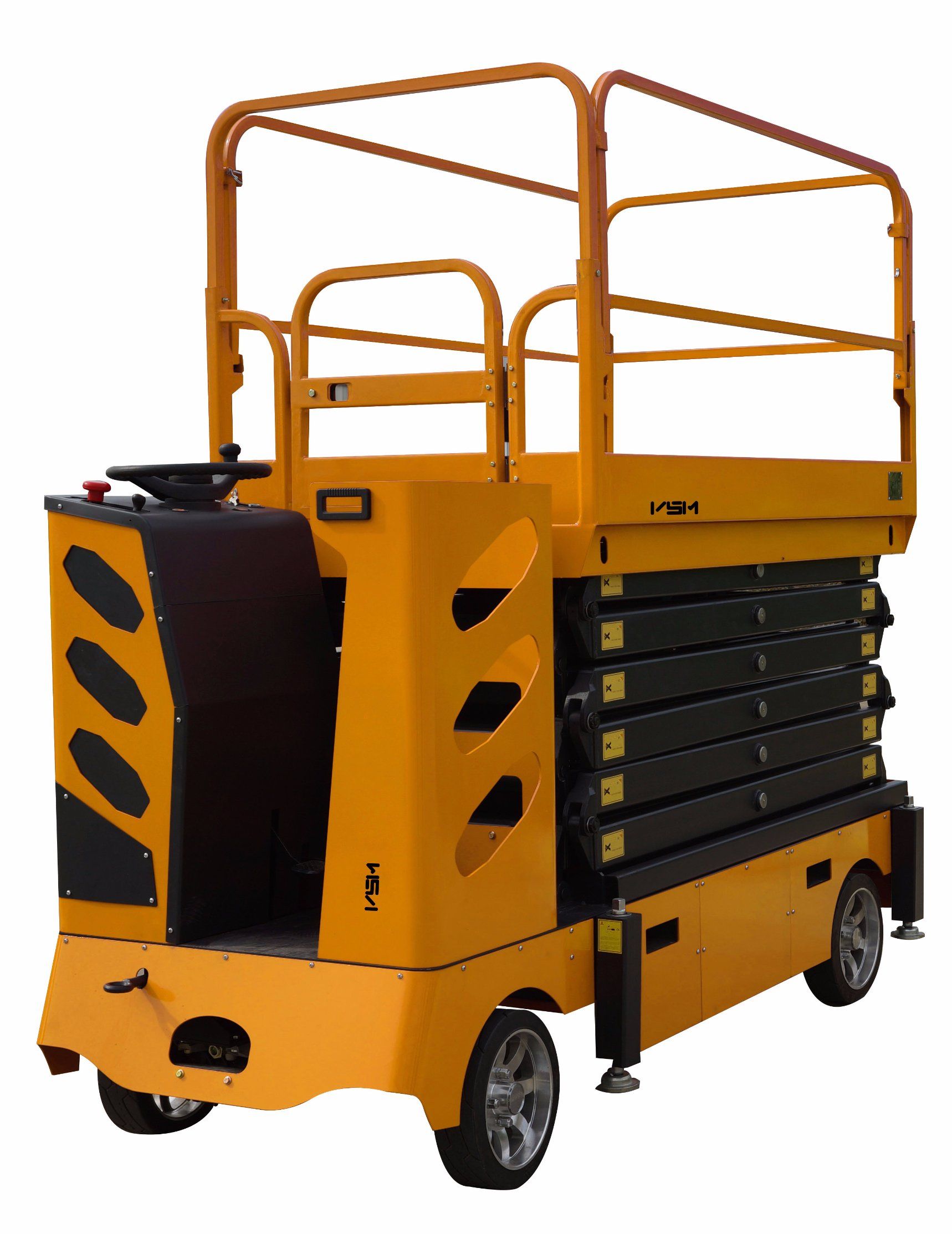

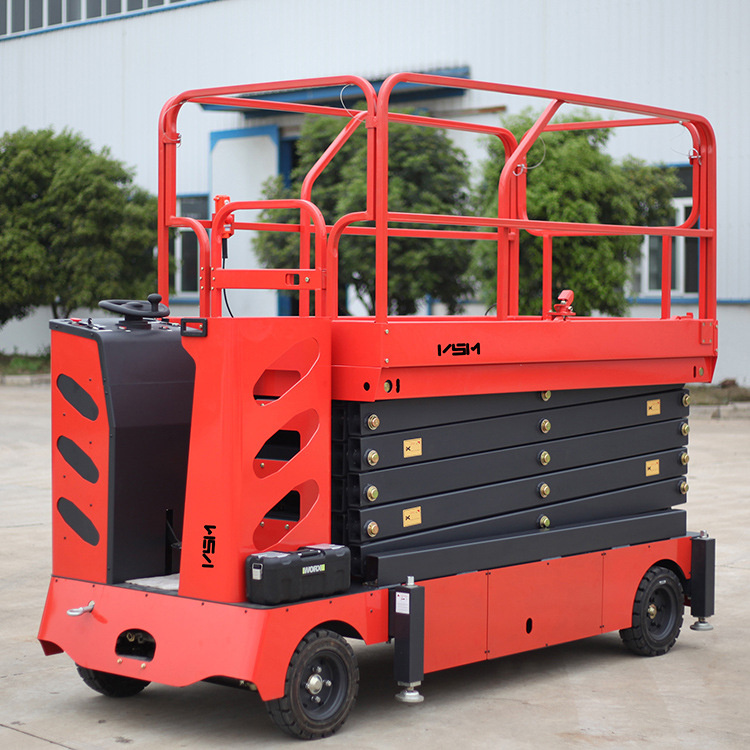

PRODUCT PHOTOES
PRODUCT INFORMATION:| Model | SJZ0.5-9 | SJZ0.5-11 | SJZ0.5-12 |
| Platform rated load /kg | 500 | 500 | 500 |
| Max.Platform height /mm | 9000 | 11000 | 12000 |
| Min.Platform height /mm | 1558 | 1560 | 1560 |
| Platform working dimension /mm | 1850×1000 | 2150×1140 | 2300×1140 |
| Support leg expansion size /mm | 1860×2195 | 2250×2895 | 2280×2895 |
| Whole length width /mm | 2490×1170 | 2760×1295 | 2957×1135 |
| Whole height /mm | 2558 | 2560 | 2596 |
| Whole weight/kg | 1660 | 1750 | 2080 |
| Lifting motor /V/kw | 48/2.2 | 48/2.2 | 48/2.2 |
| kwDrive motor /V/kw | 48/2.5 | 48/2.5 | 48/2.5 |
| Travel speed /h /km | 4-6 | 4-6 | 4-6 |
| The max ramp rate/% | 10-15 | 10-15 | 10-15 |
| AhBattery /V/Ah | 48/75 | 48/100 | 48/135 |
| harger /V/A | 48/10 | 48/10 | 48/10 |
| Voltage /V | 48 | 48 | 48 |

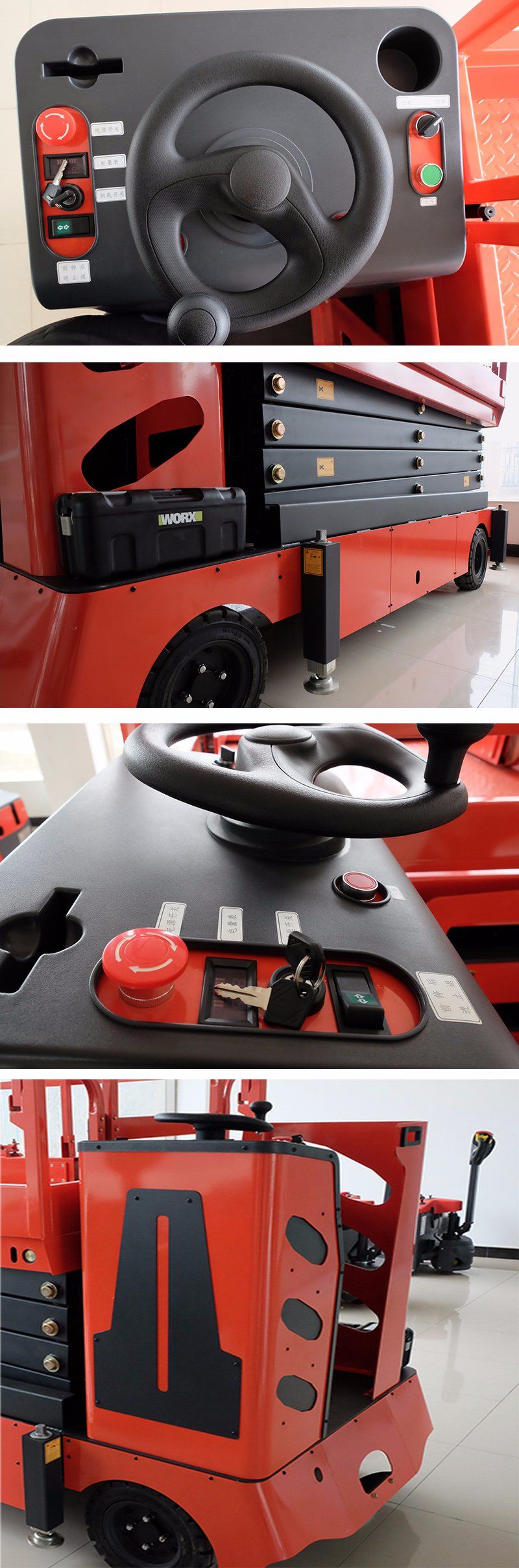

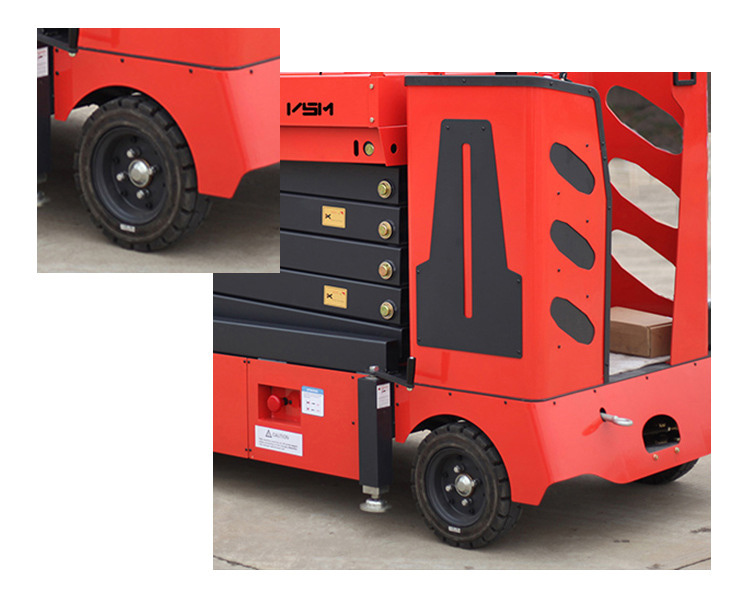

DETAILED PHOTOES
MORE HOT SALE PRODUCTS:
Why choose us?1. Real Factory with exporting experience.More than 60 years of producing material handling equipment (former named Hubei Goldmill Machinery Factory,China's first manufacturer of lifting equipment. )2. Price.Provide factory direct price, will save your cost than buy from third party3.Excellent quality.Mainly parts imported from Europe and USA, assembly in China,we can ensure the long time use and safety.4. Adequate Stock.We have many kinds of spare parts in stock, we can delivery in 24 hrs.5. Services.Professional service team can give powerful support for our products. Engineers have more than 10 years' experience in products and ready to solve all your problems.6. Innovation.Technical and management innovation guarantee our quality to be in top position in our industry. What products do we have? Electric Stacker, Semi Electric Stacker, Hand Stacker, Electric Pallet Truck, Semi Electric Pallet Truck, Hand Pallet Truck, Table Lift, Electric order picker, Hand manual order picker, Scissor Lift, Electric Aluminium Alloy Platform etc. F A QWelcome to ask us questions . Don't be shy. We are very professional.1. How to place an order?A:Tell us your detail requirements of Top but cheapest small type electric forklift pallet truck-electric stacker(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.2. What's your Price Terms?A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.3. Are you Factory?A: Yes. 4. Can i place mix order?For example, i need 1 pc Electric Stacker and 1 pc Hand Pallet Truck,can this ok?A: Yes, of course. You can mix different models as you wish. 5. Can you send the machine to my factory in other city to load the container?A: Yes, please tell us the detail address, we can arrange to send your factory in time.6. Are the forklift trucks covered by a warranty?A: Yes. All our machines carry a full 1 year major parts warranty.7. Can i get discounts?A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.8. How to place an order?A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.9. How could i pay them?A: We accept Western Union (for parts order, order value less than $1500); T/T(bank transfer,order value at least $1500); L/C (Irrevocable LC at sight, order value at least $10000 )10. How long could i get my order?A: Mainly depend on the order quantity1) Stock products: deliver within 24 hours.2) If don't have items in stock, then produce 1 pc, delivery time is 7days;produce 2~5 pcs, delivery time is 15 days;produce 6~12 pcs, delivery time is 25 days.11. Can you add our own logo on the products or use our designs?A: Yes,of course you can add logo on our products! We provide OEM/ODM service.In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright. Welcome your factory tour at any time!
Contact us:
Sunny Huang
Mobile: 86-153-4226-1630

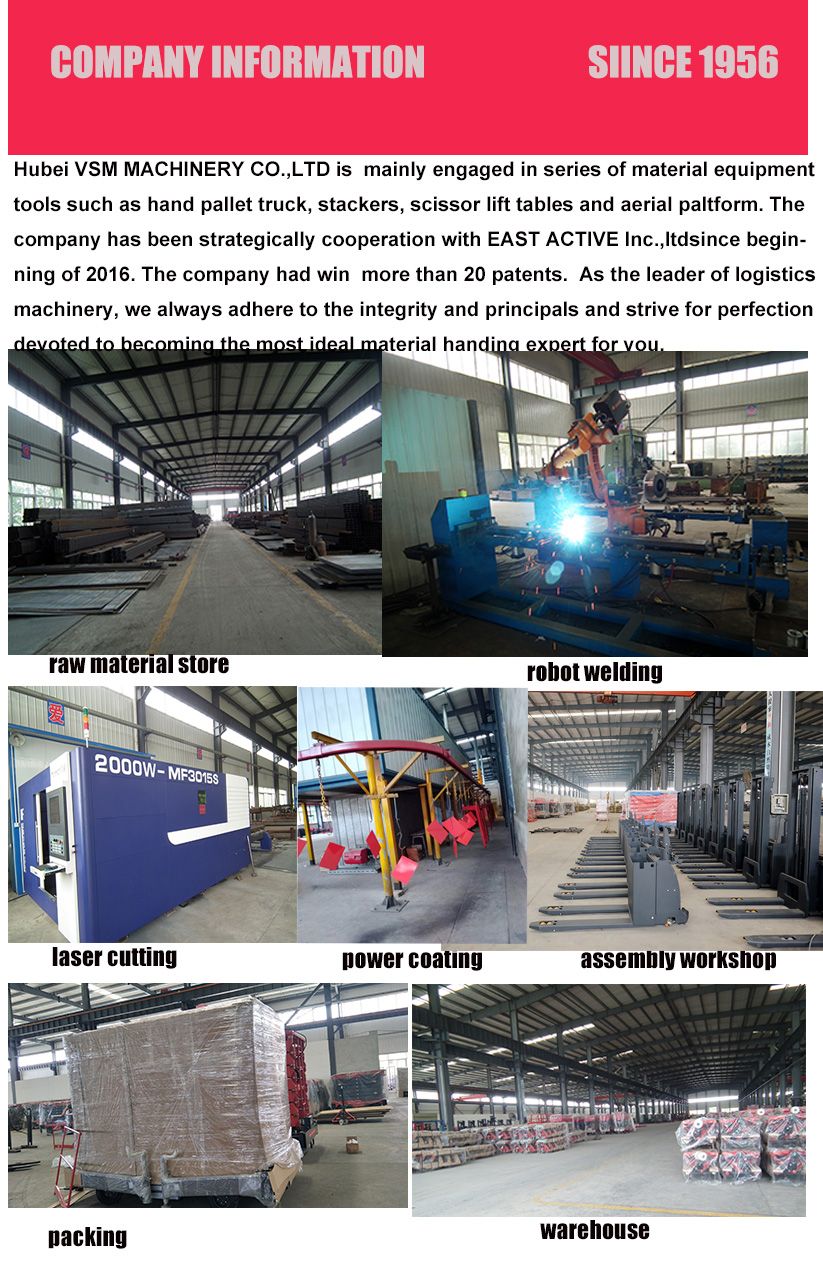

Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.
The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.
We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.
We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home and abroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.
As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.
