| Prod Model: |
CBD20 |
| Drive Unit: |
Battery |
| Fork Demesion: |
72*170*1220mm |
| Fork Width: |
690 |
| Wheel Type: |
PU |
| Drive Wheel Size: |
230*70 |
| Load Speed: |
0.035 |
| Unload Speed: |
0.048 |
| Battery Voltage/Rated Capacity(5h): |
24V210A |
| Battery Weight: |
190kg |
| Battery Size: |
650*201*590mm |
| Type: |
Powered Pallet Truck |
| Power: |
AC Motor |
| Load Capacity: |
1T - 5T |
| Load Center: |
400 |
| Lift Height: |
110mm |
Product Description
CBD power pallet truck offers a huge advantage over hand pallet its quick and effortsless loading and transporting features.
The compact design can easily mobbe in the most confiined space and narrow aisle as in retail stores small warehouse and factories.
1. Control setystem:CURTIES, New design, national patented producpatent Number 201430452556.5). Unique Transformers series appearance;2.high perfmance traction battery,long working time.
3.Imported driving wheels,strong power.
4.External inteligent charger,reliable and convenient.
5.Ergonomic handle design, easy to operate.

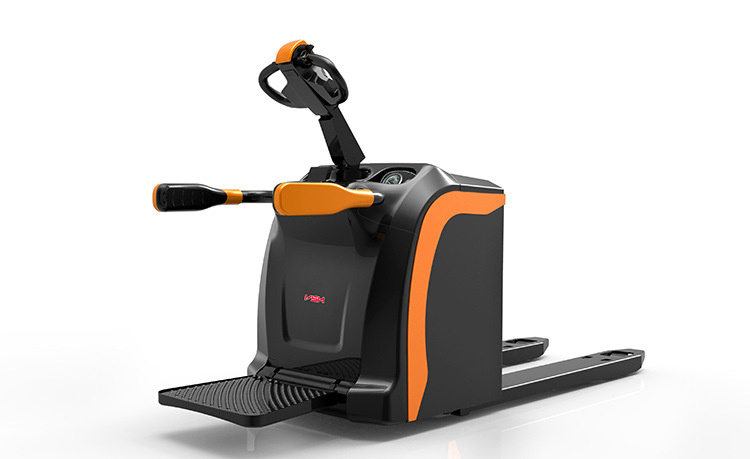

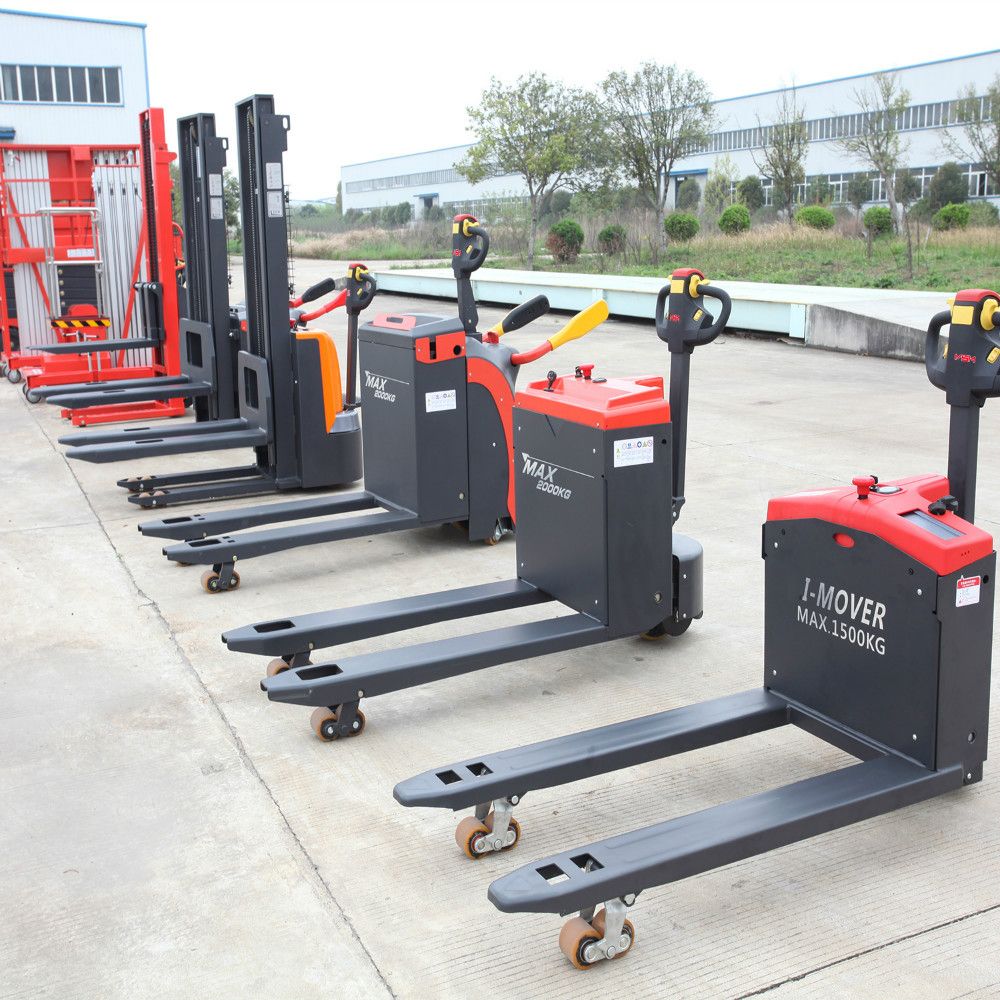

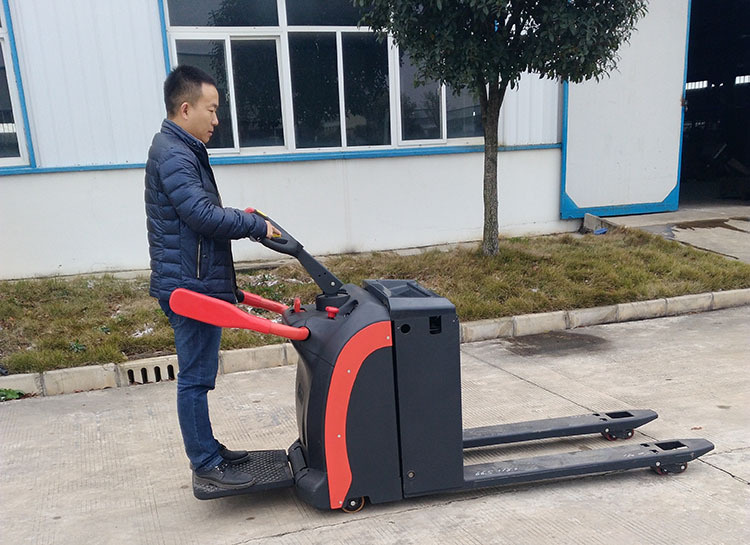

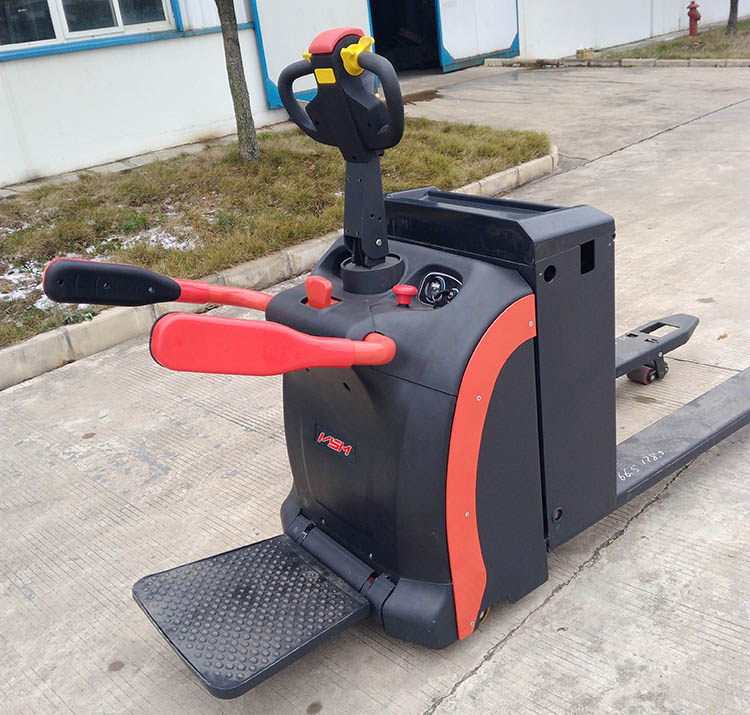

6.Foldable pedal enables comfortable operation.PRODUCT PHOTOES
PRODUCT INFORMATION| Model | CBD20 | CBD25 | CBD30 |
| Drive unit | Battery | Battery | Battery |
| Operator type | Pedal | Pedal | Pedal |
| Capacity (kg) | 2000 | 2500 | 3000 |
| Wight(lncl.battery)(kg) | 690 | 720 | 740 |
| Overall length (mm) | 1985 | 1985 | 1985 |
| Overall width (mm) | 722 | 722 | 722 |
| Overall height (mm) | 1330 | 1330 | 1330 |
| Raised height (mm) | 110 | 110 | 110 |
| Fork dimensions (mm) | 72/170/1220 | 72/170/1220 | 72/170/1220 |
| Fork spread (mm) | 690 | 690 | 690 |
| Aisle width,1000×1200 pallet crossways (mm) | 2592 | 2592 | 2592 |
| Aisle width,800×1200 pallet crossways (mm) | 2392 | 2392 | 2392 |
| Outer turning radius(mm) | 1759 | 1759 | 1759 |
| Wheel type | PU/PU | PU/PU | PU/PU |
| Operator side | Φ230×70 | Φ230×70 | Φ230×70 |
| Load side | 2×Φ80×87 | 2×Φ80×87 | 2×Φ80×87 |
Drive speed,with load /
without load (km/h) | 5/7 | 5/7 | 5/7 |
Lifting speed,with load /
without load (m/s) | 0.035/0.048 | 0.035/0.048 | 0.035/0.048 |
Maximum climbing angles,
with load / without load (%) | 5/8 | 5/8 | 5/8 |
| Service brake | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive motor power at S2 60 min (kw) | 1.6horizontal motor | 2.5vertical motor | 3.0vertical motor |
| Lift motor power at S3 15% (kw) | 1.5 | 1.5 | 1.5 |
| Battery voltage / rated capacity (5h)( V/Ah) | 24/210 | 24/240 | 24/240 |
| Battery weight(kg) | 190 | 210 | 210190 |
| Battery l / w / h(mm) | 650/201/590 | 650/201/590 | 650/201/590 |
| Battery type | traction battery | traction battery | traction battery |
| Type of drive control | AC | AC | AC |
| Control System | ACTIVE | ACTIVE | ACTIVE |
| Sound level for operator (dB(A)) | 85 | 85 | 85 |

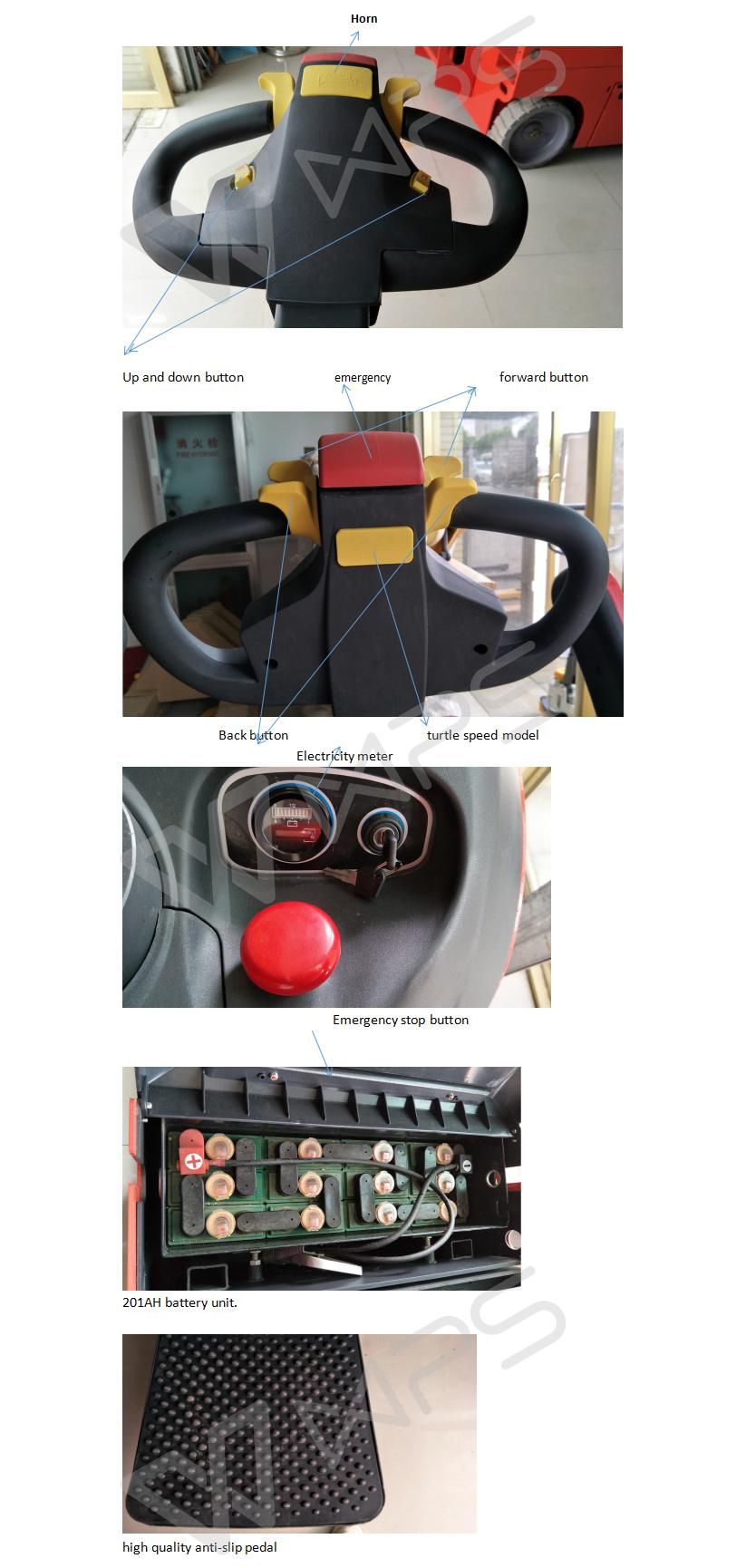

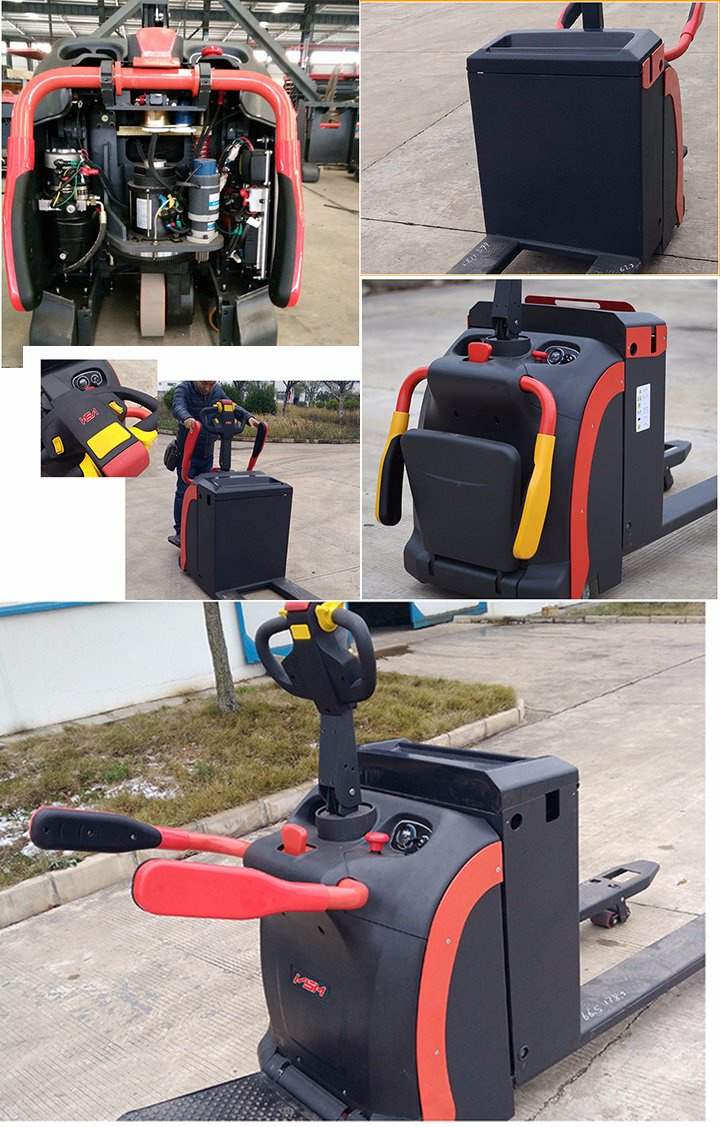

DETAILED VIEW:
Why choose us?
60 years manufacturing experience in hydraulic lifting industry.
What is it makes us walk such far?
1.Competitive price
We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchasethe raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material used.The thickness of the material is 40mm,and the material antiskid density space is 35*30mmwhich make the whole machine more steady and durable.
b.Ramp platform. We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used.We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 24 hours.
4.Keep innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
5.Warranty
1) User-friendly English manual for machine using and maintenance.
2) One year warranty for whole machine without man-made fault;
3) We will send you parts for free if there are any non-human factors problem during warranty time
4) 24-hours technical support by email, telephone or other communication online.
5) We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
welcome your factory tour at any time!
Contact us:
Sunny Huang
Mobile: 86-153-4226-1630

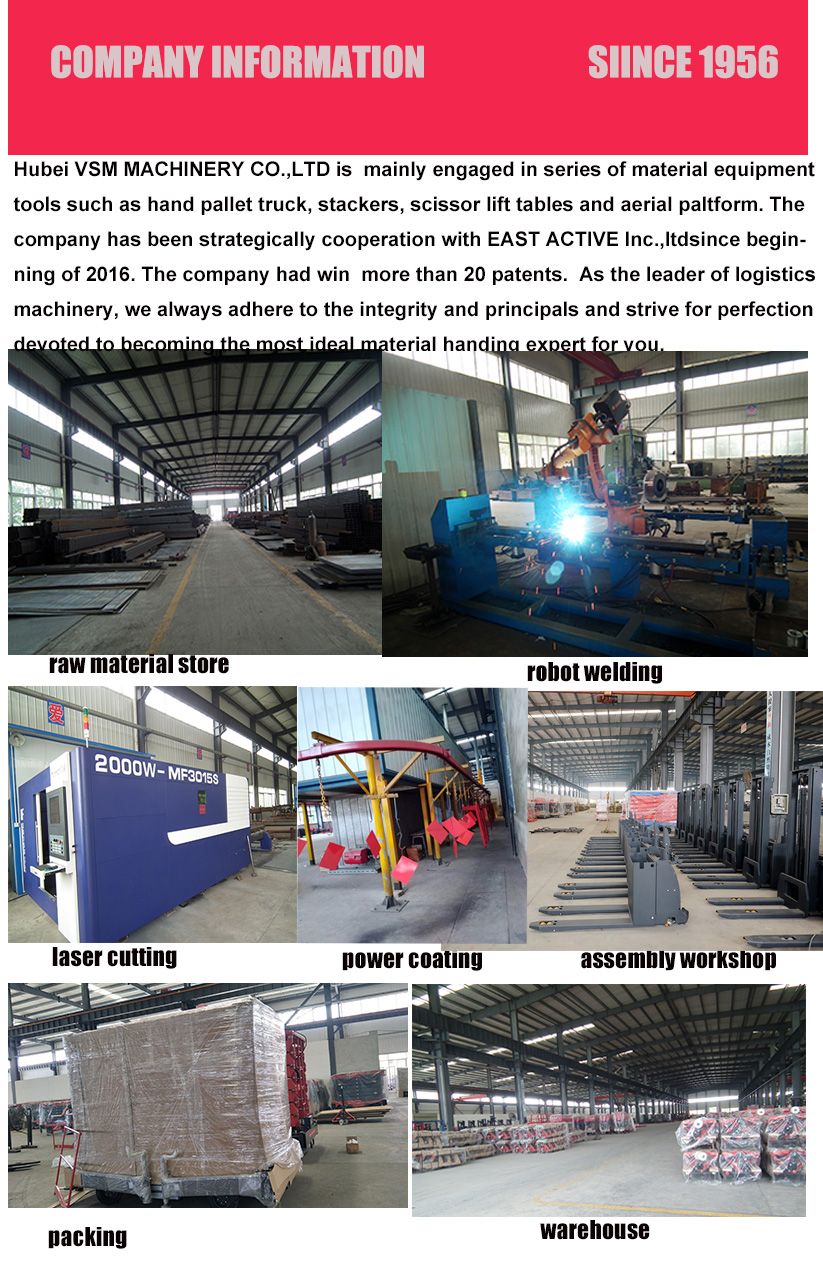

Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.
