Electric Self-Propelled Scissor Lift with Battery Power Scissor Lift

Name: Electric Self-Propelled Scissor Lift with Battery Power Scissor Lift
Brand: tool-buy.com
SKU: 827071665
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 4600-5000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Hubei VSM Machinery Co., Ltd.

Showroom Product Company Profile

Rated Capacity:	500kg
Max Platheight:	7000-11000mm
Min Paletheight:	1125-2350
Platform Size:	2150*1140
Lift Motor Power:	48/2.2 V/Kw
Drive Motor Power:	48/2.5 V/Kw
Gear Ratio:	1:22
Battery:	48/56*4 V/Ah
Charge:	48V/10A
Netweight:	1590kg
Power:	AC Motor
Load Capacity:	≤1T
Load Center:	550

Product Description

1.WHITE brand hydraulic motor, stable performance;
2.TROJAN large capacity maintenance free battery, long working hours.
3.Foldable guardrail, easy for stroage and transportation.
4.Extended platform,wide working scope.

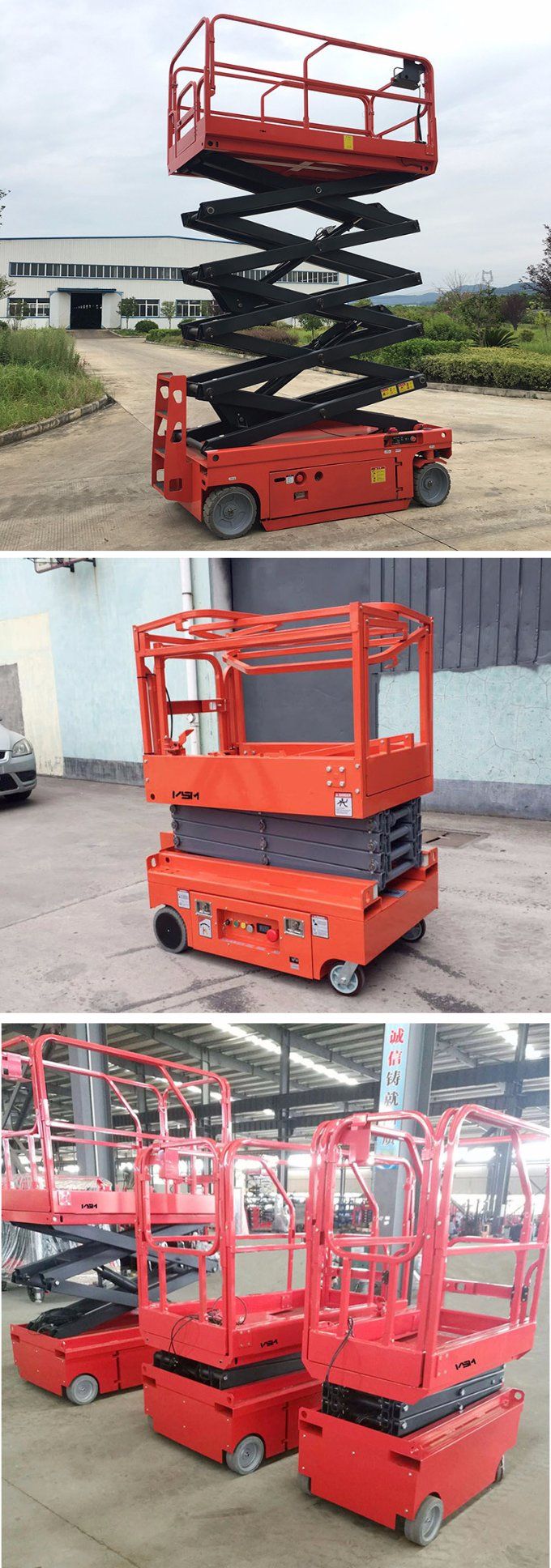

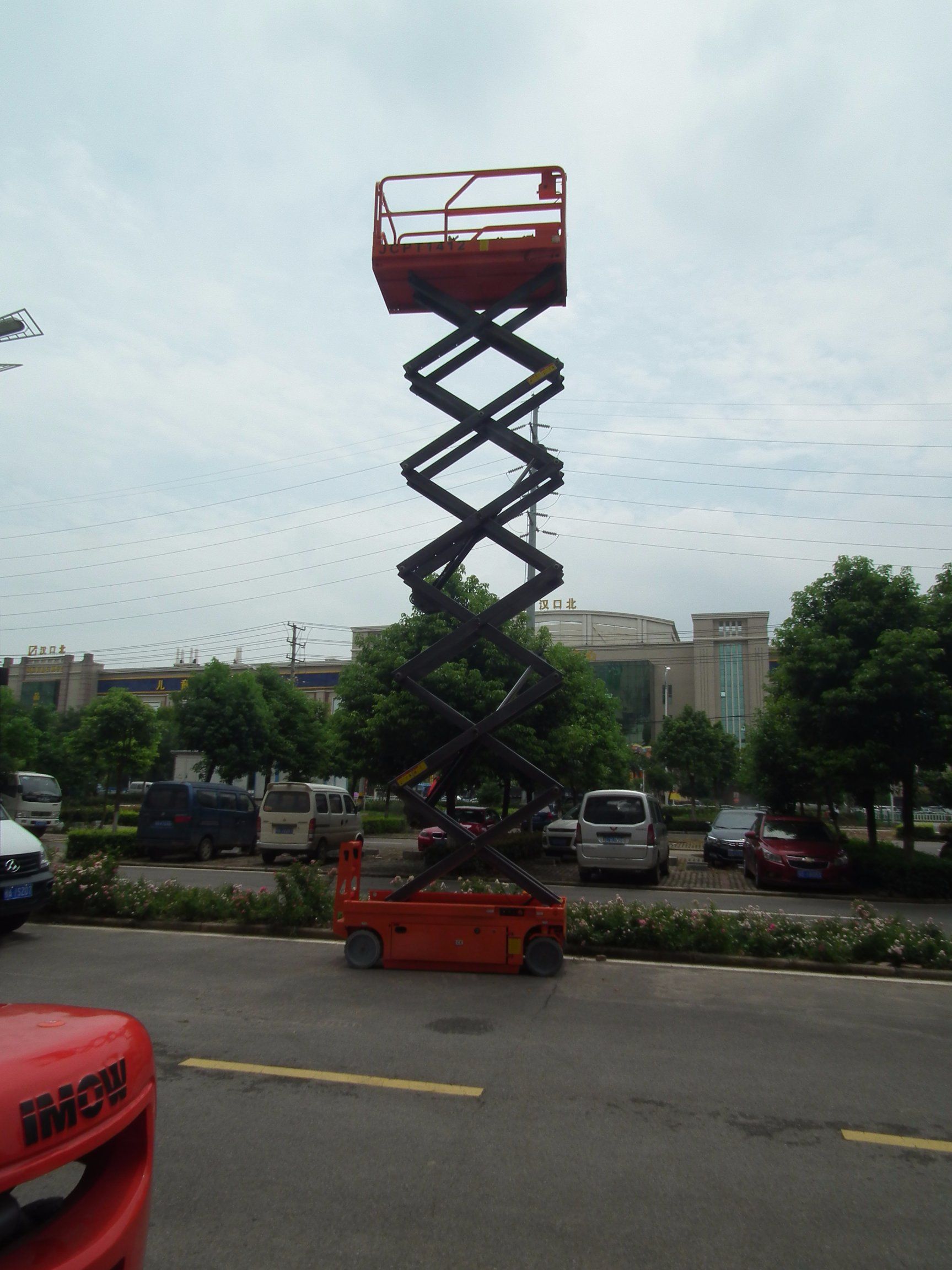

PRODUCT PHOTOES

1.Products advantages

Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency

2. Moving method

The chargeable battery provides the power to move and steer around.

3. Lifting Power

The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 5.0M,5.9M.7.8M,8.0M,10M,12M,13.8M,15.7M

It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline

PRODUCT INFORMATION:

Model	/	3	3.9	5.8	6.0	8.0	10.0	12.0	14.0
safe work capacity	kg	240	240	380	380	230	320	230	200
safe work capacity of extended platform	kg	100	100	113	113	113	113	113	113
Ma. Person No.	/	1	1	2	2	2	2	2	2
Max. work height	m	5	5.9	7.8	8	10	12	13.8	15.7
Max.Platform height	m	3	3.9	5.8	6.0	8.0	10.0	11.8	13.7
Length	m	1.3	1.3	1.81	2.43	2.43	2.48	2.43	2.48
width	m	0.76	0.76	0.76	0.81	0.81	1.15	1.15	1.29
height (unfolded guardrail )	m	1.86	1.94	2.16	2.18	2.30	2.47	2.55	2.77
2.77height (folded guardrail )	m	1.5	1.59	1.82	1.85	1.87	1.99	2.03	2.37
work platform size	m	1.15*0.7	1.15*0.7	1.67*0.74	2.27*0.81	2.27*0.81	2.27*1.12	2.27*1.12	2.27*0.82
extended platform size	m	0.55	0.55	0.90	0.90	0.90	0.90	0.90	0.90
Min. Ground clearance (folded)	m	0.05	0.05	0.09	0.10	0.10	0.10	0.10	0.10
Min. Ground clearance (lifting)	m	0.05	0.05	0.019	0.019	0.019	0.019	0.019	0.019
wheel base	m	1.03	1.03	1.36	1.87	1.87	1.87	1.87	1.87
Min. turning radius	m	0	0	0	0	0	0	0	0
Min. turning radius	m			1.64	2.10	2.10	2.2	2.2	1.98
Lift motor	kw/v	0.8/24	0.8/24	3.3/24	3.3/24	3.3/24	4.5/24	4.5/24	3.3/24
driving speed (folded)	km/h	4	4	3.0	3.0	3.0	3.5	3.0	3.0
()driving speed (lifting)	km/h	0.5	0.5	0.8	0.8	0.8	0.8	0.8	0.8
0.8 ascend/descend speed	sec	28/20	32/21	18/22	24/54	28/40	45/36	84/38	84/60
battery	V/Ah	2*12/55	2*12/55	4.*6/210	4*6/225	4*6/225	4*6/125	4*6/240	4*12/300
charger	V/A	24/11	24/25	24/25	24/25	24/25	24/25	24/25	24/25
Max. Grade ability	%	25	25	25	25	25	25	25	25
Max. Working angles	/	1.5/2°	1.5/2°	1.5/3º	1.5/3º	1.5/3º	2-3º	1.5º/3º	1.5º/3º
Inner and outer radius of tire	mm	230*80	230*80	230*80	230*80	305*102	380*127	380*127	380*127
overall weight	kg	630	660	1400	1945	2100	2430	2830	3130

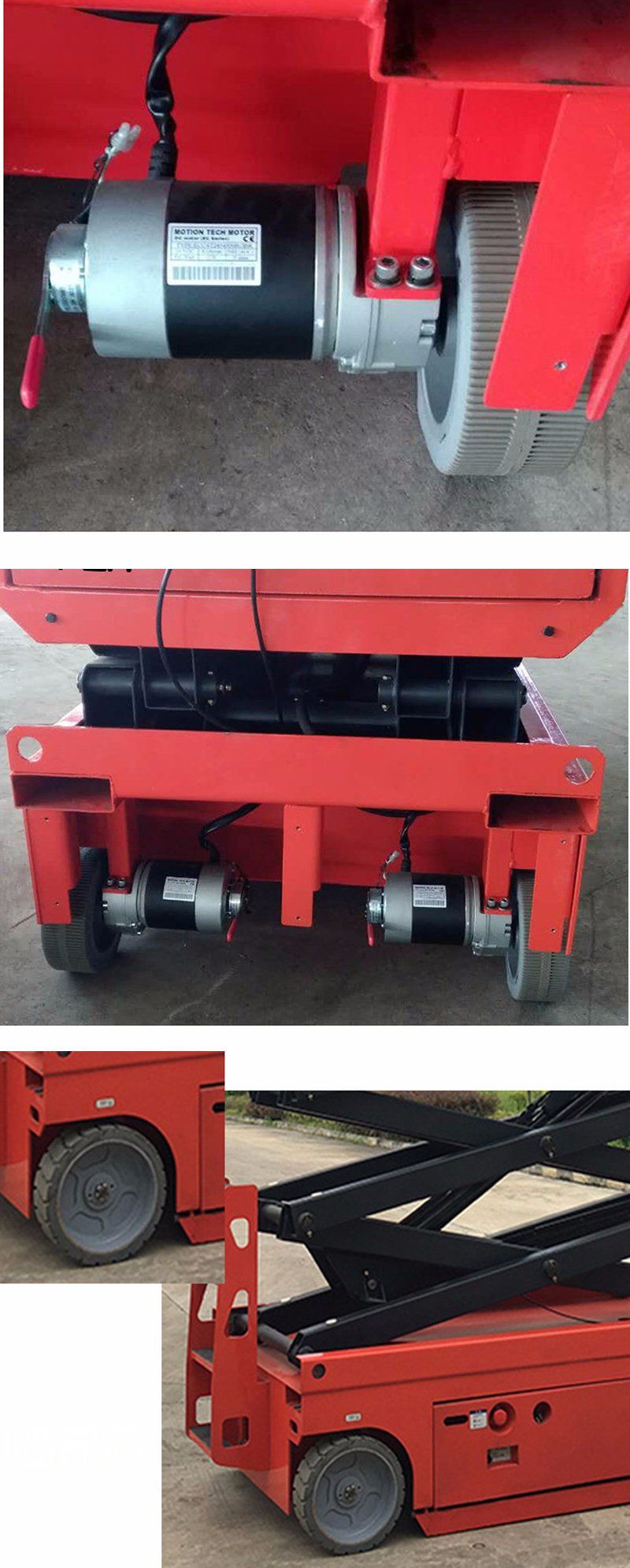

DETAILED IMAGES

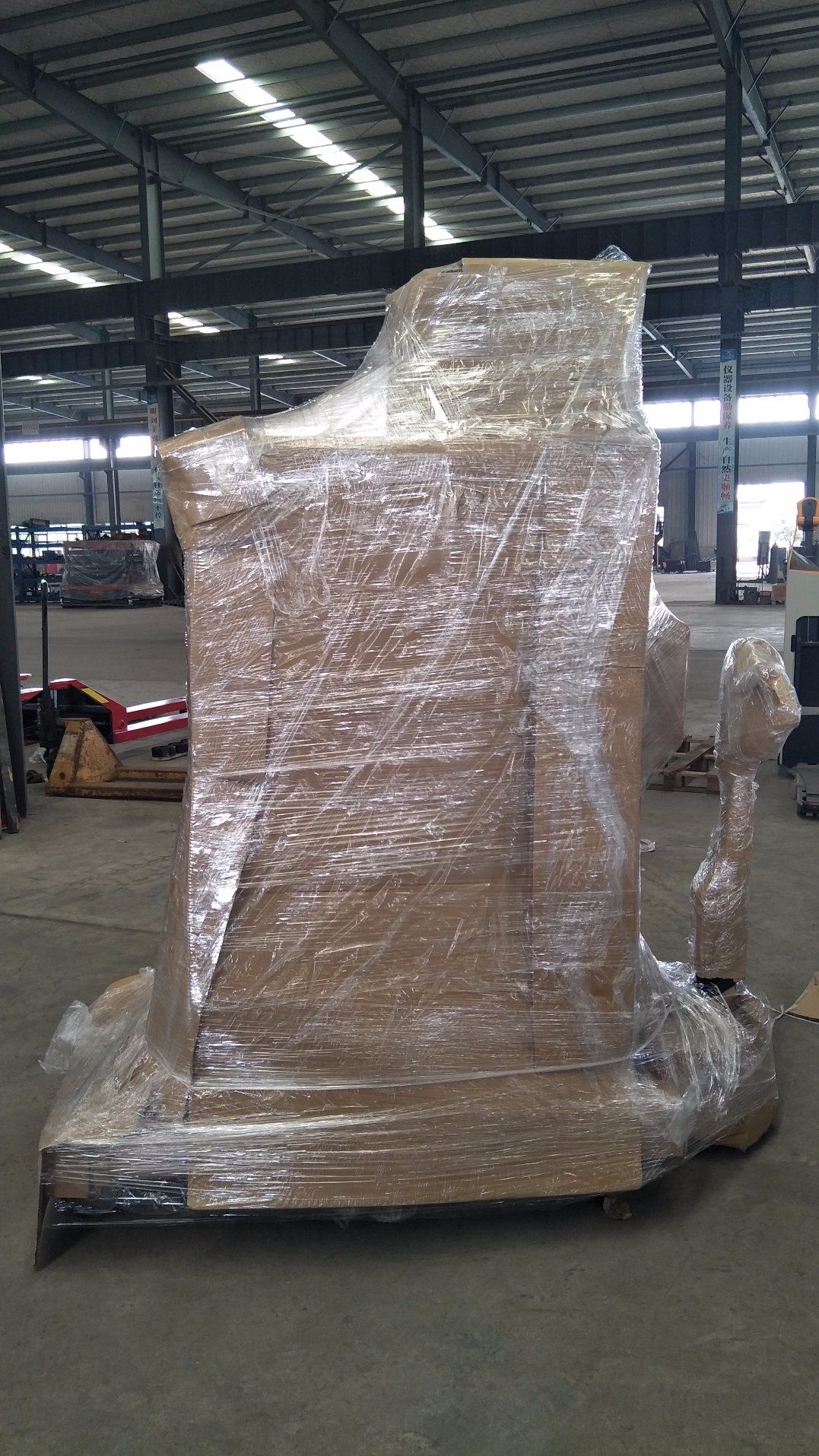

Packing:standard packing or according to customer's requirement.

COMPANY INFORMATION:

Our Services:

1) We can design the hydraulic scissor lift table as per your requirement.
2) The exactly hydraulic scissor lift will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 12 months warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.

Contact us:
Sunny Huang
Mobile: 86-153-4226-1630

Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.

The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.

We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.

We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home and abroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.

As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.
