6.5inch Neodymium Powered Array Line Speaker

6.5inch Neodymium Powered Array Line Speaker
Price: US $ 38-53/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: W065011B
Category: Speaker
Transmission Mode: Air-conduction
Cone: Paper Cone
Transducer Principle: Permanent Magnetic Speaker
Style: Wireless
WORD NChannels: 1.0
Certification: SGS
Brand: OEM/ODM

Product Description

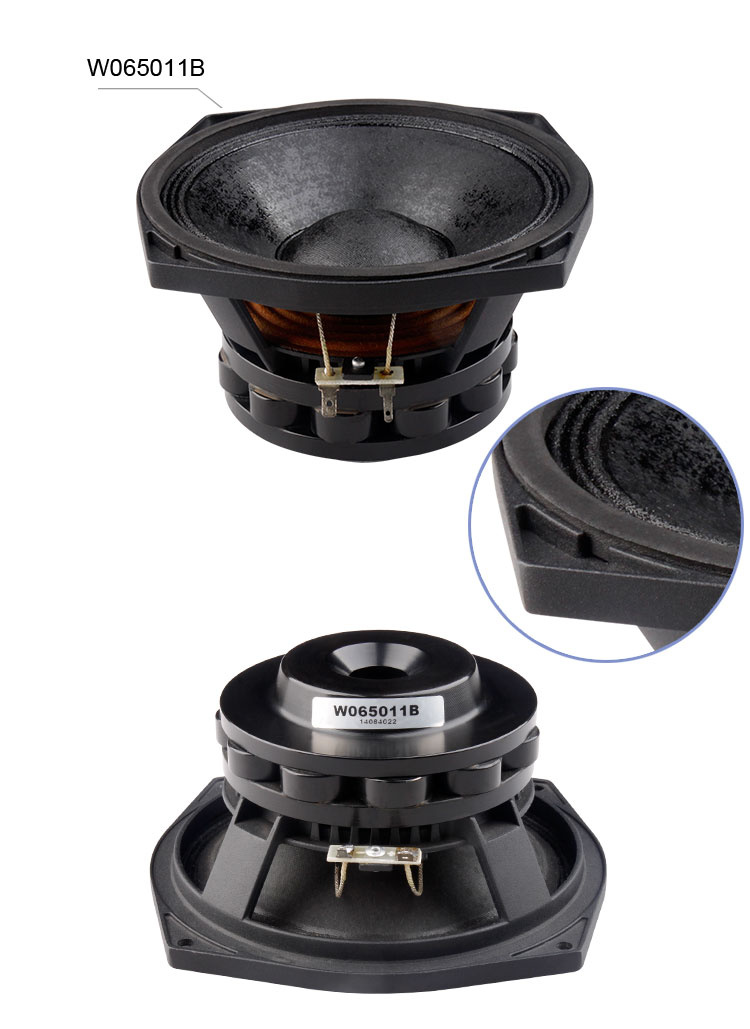

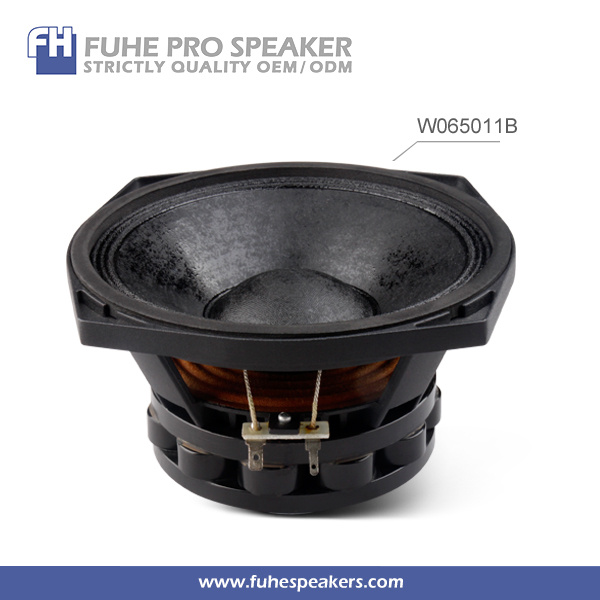

6.5inch Neodymium Powered Array Line Speaker
MODELTYPE
W065011BMID-BASS
GENERAL SPECIFICATIONS
Nominal Diameter165/6.5mm/inch
Rated impedance8ohm
Power handing capacity120watts
Sensitivity95dB/1w/1m
Frequency RangeFs-6000Hz
Voice Coil Diameter50/2mm/inch
Voice Coil MaterialAluminium edge wound
Number of layer1
Kind of layerOutside
THIELE-SMALL PARAMETERS
Resonance frequencyFs113Hz
Dc resistanceRe6.8ohm
Mechanical factorQms2.7
Electrical factorQes0.36
Total factorQts0.32
BL factorBL13T.M
Effective Moving massMms12.5g
Effective Cas air loadVas4.6liters
Effective piston areaSd0.0145m^2
MOUNTING INFORMATION
Overall Diameter187*162/7.36*6.38mm/inch
Bolt Circle DiameterΦ171.5/Φ6.75mm/inch
Bolt Hole Diameter4-Φ5/4-Φ1.97mm/inch
Mount Baffle Cut-out145/5.71mm/inch
Depth86/3.39mm/inch
SHIPPING INFORMATION
Net Weight                (4 units)8.2kg
Shipping Weight        (4  units)9.7kg
Package Size              (4 units)350X175X220mm




Guangzhou Fuhe Electronic is leading designer and manufacturer of good quality stage speaker in China since 1997.

It had big invested much manpower and money in R&D. It supplied OEM/ODM projects to most of the famous professional audio brands in the market. It provides a well-balanced line of MID low frequency speakers that range from 5" to 32", as well as a very complete line of high frequency drivers, coaxial components.

Professional technique/professional quality is our culture.

Key material parts are imported from USA, UK, Malaysia, Thailand etc.

From nightclubs to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency, and most of all for their outstanding sound quality.
