600*400mm CNC Cutting Machine Fiber Laser Cutter 500W 1000W

Name: 600*400mm CNC Cutting Machine Fiber Laser Cutter 500W 1000W
Brand: tool-buy.com
SKU: 729528092
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 50000-80000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

WUHAN KING'S LASER CO., LTD.

Showroom Product Company Profile

Prod Model:	RS-FC6040P

Product Description

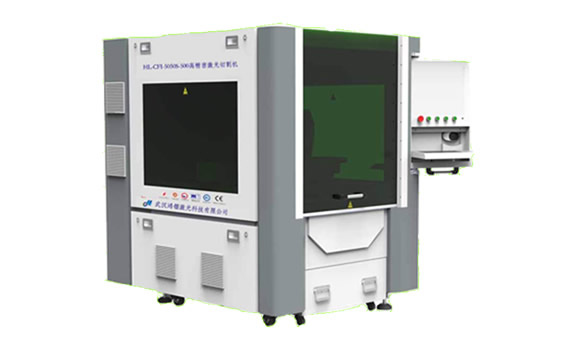

**600*400mm cnc Cutting Machine Fiber Laser Cutte**
RS-CF6040P 500W 1000W 1500W

Features:
1 High precision;

2 High speed;

3 Small size

4 Smooth cutting surface;

5 CCD automatic positioning

5 Dust-proof enclosed machine body

Specification:

Laser type:	Fiber laser
Laser output power	500W-1500W
Laser safety class	class 4
Wave length:	1064nm
X,Y axis positioning accuracy:	±0.03mm
Repeated positioning accuracy:	±0.05mm
Servo type:	AC servo
Acceleration	1.5G
Max.travelling speed:	80-150m/min
X axis travel:	600mm
Y axis travel:	400mm
Z axis travel:	100mm
Protection level:	IP65
Continuous working hrs:	24hrs
Working size:	<600mm×400mm
Power supply:	380V?50Hz/50A

Application:
Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials

Materials:
Mild steel , Aluminum, Stainless steel , Copper, Brass, Titanium, Zinc, Coated steel

FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?

If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

KING'S laser is specialized in design, R&D, and production of laser machines in the field of laser marking, laser engraving, laser cutting and laser welding. Since foundation, with strict management and innovative spirit, we have successfully developed a number of advanced expertise. Our products include laser marking machine, laser cutting machine, laser welding machine, as well as the whole set of production solutions designed for clients. Currently, our products have been exported to India, S Korea, Pakistan, Spain, Slovenia, Russia, Italy, France, Chile, Argentina and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries. We not only provide clients with excellent satisfying equipments but also timely lifetime service, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
