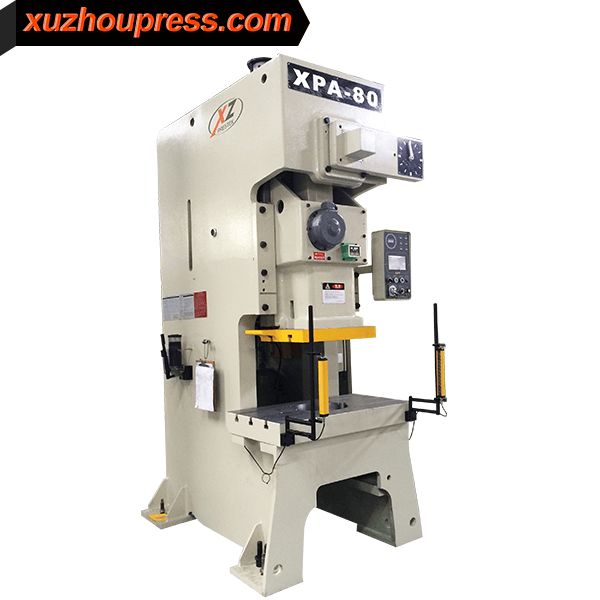

Prod Model: |
XPA-80 |
Precision Standard: |
GB(Japan 1 Class) |
Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
Dry Clutch: |
Italian Ompi |
Main Motors: |
Taiwan Teco |
Double Solenoid Valve: |
Japan's Taco |
Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
Bearings: |
Japan NTN/NSK |
PLC: |
Japan Omron |
Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
Controlling Mode: |
CNC |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Type: |
High Precision Power Press |
Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description
Manufacturing Precision Standards : Japanese JIS 1 Class
1. Parameters
1) 25ton ~60ton Parameters
Item | XPA-25 | XPA-35 | XPA-45 | XPA-60 |
Model | V | H | V | H | V | H | V | H |
Capacity | Ton | 25 | 35 | 45 | 60 |
Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
Speed changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 | 35-90 | 80-120 |
Stable speed | s.p.m | 110 | 85 | 75 | 65 |
Stroke | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 |
Die height | mm | 200 | 215 | 220 | 235 | 250 265 | 310 | 340 |
Slide adjustment | mm | 50 | 55 | 60 | 75 |
Slide area | mm | 300x230x50 | 360x250x50 | 400x300x60 | 500x360x70 |
Bolster area | mm | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 |
Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 |
Main motor | kw.p | 3.7x4 | 3.7x4 | 5.5x4 | 5.5x4 |
Slide adjust device | HP | Manual operation |
Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | mm | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | 1595x1000x2800 |
Presses weight | Tons | 2.1 | 3 | 3.8 | 5.6 |
Die cushion Optional | Capacity | Ton | - | 2.3 | 2.3 | 3.6 |
Stroke | mm | - | 50 | 50 | 70 |
Die cushion effective area | mm2 | - | 300x230 | 300x230 | 350x300 |
2) 80ton ~200ton Parameters
Item | XPA-80 | XPA-110 | XPA-160 | XPA-200 |
Model | V | H | V | H | V | H | V | H |
Capacity | Ton | 80 | 110 | 160 | 200 |
Rated tonnage point | mm | 4 | 2 | 6 | 3 | 6 | 3 | 6 | 3 |
Speed changing | s.p.m | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 |
Stable speed | s.p.m | 65 | 50 | 35 | 35 |
Stroke | mm | 150 | 70 | 180 | 80 | 200 | 90 | 200 | 100 |
Die height | mm | 340 | 380 | 360 | 410 | 400 | 450 | 460 | 510 |
Slide adjustment | mm | 80 | 80 | 100 | 110 |
Slide area | mm | 560x420x70 | 650x470x80 | 700x550x90 | 850x550x90 |
Bolster area | mm | 1000x550x90 | 1150x600x110 | 1250x800x140 | 1350x820x140 |
Shank hole | mm | Φ50 | Φ50 | Φ65 | Φ65 |
Main motor | kw.p | 7.5x4 | 11x4 | 15x4 | 18x4 |
Slide adjust device | HP | Electrial driving |
Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | mm | 1800x1180x2980 | 1900x1300x3200 | 2420x1390x3465 | 2420x1490x3612 |
Presses weight | Tons | 6.5 | 9.6 | 14 | 16 |
Die cushion Optional | Capacity | Ton | 3.6 | 6.3 | 10 | 10 |
Stroke | mm | 70 | 80 | 80 | 80 |
Die cushion effective area | mm2 | 450x310 | 500x350 | 650x420 | 650x420 |
3) 260ton ~315ton Parameters
Name | XPA-260 | XPA-315 |
Model | V | H | V | H |
Capacity | 260 | 315 |
Rated tonnage point | 6 | 3 | 7 | 3.5 |
Speed changing | 20-50 | 50-70 | 20-35 | 35-50 |
Stable speed | 30 | 30 |
Stroke | 200 | 100 | 250 | 150 |
Die height | 460 | 550 | 500 | 550 |
Slide adjustment | 120 | 120 |
Slide area | 850x630x90 | 950x700x100 |
Bolster area | 1400x820x160 | 1600x900x200 |
Shank hole | Φ65 | Φ65 |
Main motor | 22x4 | 30x4 |
Slide adjust device | Electrical Driven |
Air pressure | 6 | 6 |
Presses precision | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | 2735x1780x4070 | 2845x1950x4500 |
Presses weight | 22 | 33 |
Die cushion capacity | 14 | 14 |
Stroke | 100 | 100 |
Die cushion effective area | 710x480 | 810x480 |
2. Technical Descriptions :
2. Key Components List
Category | Item | Brand & Manufacture |
Mechanical parts | Bearings | Japan NSK |
O shape seal ring | Japan NOK |
oil seals | Japan NOK |
Clutch (dry) | Italian OMPI |
Air Tank | high-quality domestic manufacture |
Anti-vibration Device | Beijing Great wall |
Electric grease oil pump | Taiwan Tairun |
Electrical Elements | Main Motor | Taiwan Teco |
Frequency Inverter | Taiwan Teco/Delta |
Slide Motor Adjustment Motor | Japan Self-brake Slide Motor |
Contactor | Schneider |
Relay | OMRON |
Push Button | Schneider |
PLC | Japan Omron |
Touch Control Screen | Taiwan EASYVIEW |
Operation Buttons | Schneider |
Emergency Stop Button | Schneider |
Proximity Switch | Japan OMRON |
3. Main Parts Function Description
Item | Unit | Specification Contents |
1.Slider Balancer | | |
1.1 Maximum balance air pressure | | 5.0 kg/cm2 |
1.2 Air Pressures Adjustment Method | | Pressure valve operation (manual) |
| | |
2.Slider Adjustment Device | | |
2.1 Adjusting Method | | Slider Motor Driven |
2.2 Adjusting Speed | | about 50 mm/min |
2.3 Operation Method | | Button Operation (manual ) |
2.4 Show Method | | Electronic digits display 0.1mm |
| | |
3. Overload Protection Device | | |
3.1 Model | | Oil discharge load |
3.2 overload cylinder stroke | mm | 10mm |
3.3 overload return time | sec | Maximum 60 sec |
| | |
4. Clutch brake | | |
4.1 Model | | Dry pneumatic |
4.2 Structure | | Integrated |
4.3 Control Method | | Double-loop control |
4.4 Solenoid Valve | | Double solenoid valve |
4.5 Action Method - Clutch - Brakes | | Air Action Spring Action |
4.6 Friction Plate | | None asbestos material, flake |
| | |
5. Lubrication System | | |
5.1 Circulation Method lubrication Parts 5.2 Intermittent oil way method Lubrication Parts | | method of distributing valve Driven Parts , guide rails Method of distributing valve Balancer |
| | |
4. Key components Technology Process
Parts Name | Material | Machining Technology Process |
Machine Frame | Q235A Hot Rolled Steel Plate Q235A | Hot rolled steel plate cutting, bending into the required shape or size for V welding after 3-7 processing, then through burning blunt (annealing) relieving stress, Sandblasting derusting and anti-rust primer,the mechanical processing is complete, after PT checking flaw. |
Bolster | Hot Rolled Steel Plate Q235A | Flame cutting materials , fine milling again after burning blunt ( annealing ) |
Connecting Rod | Spheroidal Graphite Casting QT500-7 | Boring and milling machine processing after annealing treatment |
Ball Head Link | Medium Carbon Steel 45# | Bar quenched and tempered to HS42 after forging, and then lathe turning to the required shape and size. |
Saw tooth nut | Spheroidal Graphite Casting QT500-7 | Boring and milling machine processing after annealing treatment |
Guide Rails | copper casting ZQSn10-10 | After fine cutting with liquid nitrogen freezing to - 160 ºC, and then embed related parts, and tighten with lock screw fixation to prevent loose |
Guide Bush | ZQSn5-5-5 | Finish-Milling-- Copper taper pin fixation--Brass Screws and screw adhesive fastening |
gearwheel | wheel hub: ZG45 spoke: Q235A Rim: 45# | Tooth type: straight tooth Wheel hub adopt casting (cast) processing. Wheel adopt hot rolled steel plate through flame cutting to the required shape and size, rim as the drive ring forging, both with v-shaped welding again as a body, each bead welding 10 ~ 12, then completion of welding by burning blunt (annealing), and PT inspection ,if without defects then for the vertical lathe turning, hobbing machine, grinding machine, chamfering machine, etc. |
Transmission Shaft | chrome-molybdenum alloy steel 42CrMo | Rod--Hardening and Tempering-- Rough Turning-- Finish Turning-grinding-- keyway cutting-chamfering-and etc |
III. Equipment Acceptance
Equipment design , manufacture and safety technology conditions are all in accordance with national and industry standards.
The outline drawing of the whole diagram and important parts will be sent to the buyer audit after design completed, and require buyer sign confirmation.
Equipment acceptance have pre-acceptance and final acceptance.
1. Pre-acceptance: Acceptance include appearance quality, technical parameters, performance and accuracy test, according to the technical agreement signed by both parties, and the national standards, signed by both parties representative pre-acceptance report.
2. Final acceptance, if necessary, in the mutual confirmation products has reached the technical requirements and quality requirements set forth in the agreement, after completion of equipment installation and debugging on the buyer factory, signed by both parties on behalf of the final acceptance report. Equipment manufacturer engineers is responsible for maintenance and other related personnel training theory and practical operation.
IV. Service Commitment
1.Seller provides technical training and consulting service for the customer free of charge.
2. Buyer responsible for shipping, clearance of discharge, Marine insurance ,and located the machine , prepare corresponding necessary operating environment;
3. Engineers available service abroad if necessary ,but buyer provide round-trip air-tickets, food, accommodation, and abroad commission 200 USD per person each day, seller responsible for commissioning , installation, and training service.
4. Warranty period 14 months dated from the date of delivery, within 2 hours to respond after received the user's fault information, if necessary will send engineers to the scene for maintenance services, and the customer provide necessary transportation and accommodation support.
5. Commitment to provide lifetime paid services after the warranty period, and provide the most preferential price for the required accessories.
6. Equipment damage caused by man-made reasons during warranty period, the required parts and logistics expenses shall be taken by the buyer, and seller provide free maintenance instruction service.
V.Technical Documents
1. Operation Manual
2. Inspection Record
3. Manuals of PLC, Frequency converter, and related documents. .
