XPE Straight Side Double-Crank Precision Heavy Duty Power Press (160ton-600ton)
| Price: |
US $ 60000-266000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XPE |
| Precision Standard: |
GB(Japan 1 Class) |
| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

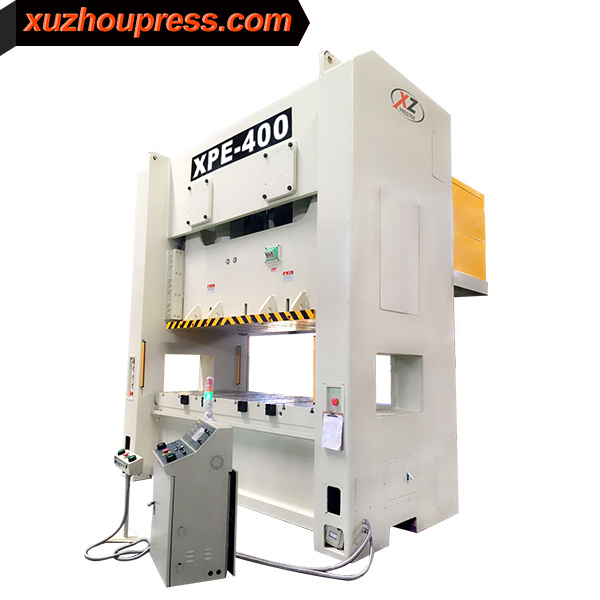

XPE Series Double-crank Straight Side Precision Power Press (160ton~600ton )
Manufacturing Standards : ISO /CE Japanese JIS 1 Class
Video Link:
https://www.youtube.com/watch?v=qCpx1fwfmac
https://www.youtube.com/watch?v=ctBiJ5Eg4wQ
https://www.youtube.com/watch?v=ycV-8uaP9mE
https://www.youtube.com/watch?v=IqBnZOjd2mQ
1. Technical Parameters* Provide Customized Personalized Servic
| Name | Unit | XPE-160 | XPE-200 | XPE-250 |
| Model | | S | H | S | H | S | H |
| Capacity | Ton | 160 | 200 | 250 |
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 7 | 3 |
| Stroke | mm | 180 | 130 | 250 | 150 | 280 | 170 |
| Stroke per minute | s.p.m | 30-55 | 40-85 | 20-50 | 35-70 | 20-40 | 30-60 |
| Die height | mm | 450 | 400 | 500 | 450 | 550 | 450 |
| Slide adjustment | mm | 100 | 120 | 120 |
| Slide area | mm | 1600x650 | 1850 x750 | 2300x900 |
| Bolster area | mm | 1800 x760 | 2200x940 | 2500 x1000 |
| Side opening | mm | 700 x450 | 900x600 | 900x600 |
| Main motor | KwxP | 15x4 | 18.5x4 | 22 x 4 |
| Slide adjust device | KwxP | 1x4 | 2x4 | 2x4 |
| Air pressure | kg/cm2 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class | GB(JIS)1class | GB(JIS)1 class |
1.2 400ton-600ton | Name | Unit | XPE-300 | XPE-400 | XPE-500 | XPE-600 |
| Model | | S | H | S | H | S | H | S | H |
| Capacity | Ton | 300 | 400 | 500 | 600 |
| Rated tonnage point | mm | 7 | 3 | 7 | 3 | 10 | 6 | 10 | 6 |
| Stroke | mm | 300 | 170 | 300 | 170 | 300 | 180 | 300 | 180 |
| Stroke per minute | s.p.m | 20-35 | 30-50 | 20-30 | 20-40 | 18-25 | 20-30 | 15-25 | 20-30 |
| Die height | mm | 550 | 450 | 550 | 450 | 580 | 480 | 600 | 500 |
| Slide adjustment | mm | 120 | 120 | 120 | 120 |
| Slide area | mm | 2300x900 | A:2300x1000 | 2900x1000 | 3100x1100 |
| B:2400x1000 |
| C:2800x1000 |
| Bolster area | mm | 2500x1000 | A:2500x1000 | 3300x1200 | 3500x1200 |
| B:2800x1000 |
| C:3200x1000 |
| Side opening | mm | 900x600 | 900x600 | 1000x750 | 1100x750 |
| Main motor | KwxP | 30x4 | 37x4 | 45x4 | 55x4 |
| Slide adjust device | KwxP | 2x4 | 2x4 | 3x4 | 3x4 |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1class | GB(JIS)1 class | GB(JIS)1class | GB(JIS)1 class |
2. Technical Descriptions : Product Features:
*With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
*Machine adopts high-alloy-steel, two-bent-axle, and two-wide work center, to optimize design.
*In order to guarantee relative stationarity of machine operation, it is equip with two balancers.
*Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.
*Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
*Adopt highly sensitive and reliable clutch/brake and internationally advanced duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
*Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.
*Possess advanced design concepts, low noise, low consumption, and energy saving.
Standard Configuration:
* Dry clutch brake
* Standard operating system of xieduan
* Operation Method Choice/inch stroke /safe journey/continuation of operating mode
* Oil pressure overload protection device
* Over-run safety device
* Duplex magnetic valve
* Misfeed detection device
* Electric slider adjusting device
* Digital moulding-height indicator (unit: 0.1 mm)
* Electric butter lubricating device
* Accumulative counter (6 digits)
* Pre-determined counter (6 digits)
* Maintenance counter (6 digits)
* Service Life counter (6 digits)
* Electronic rotary cam switch (6 connections)
* Air-blast device 1/2" primary circuit
* Air source connector 1/2" secondary circuit
* Error inspection socket
* Power socket (only apply to single-phase 110V power)
Optional Configuration:
* Wet clutch brake
* Die cushion device
* Vs variable-speed motor
* Touch-screen device
* Photo-electric safety device
* Knock-out device on Ram
* Main motor inversion device
* Foot switch
* Safety dog and safety latch
* T-type two-hand button operating platform
* Inspection variable-connection magnetic valve
* Anti-vibration mechanical foot
* Quick Die Change Device
* Upper die clamper
* Lower die clamper
* Die lifter
* Mould-shift arm
* Basic bolt and soleplate
* Automatic feeder device
* Three-in-one NC straightening feeder
* NC Servo Roll feeder
* Two-in-one feeder and straightening machine
* Leveller
