Xpa Series Single-Crank C Frame High Precision Power Press (15ton~315ton)
| Price: |
US $ 10000-100000SET |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XPA (15ton-315ton) |
| Precision Standard: |
GB(Japan 1 Class) |

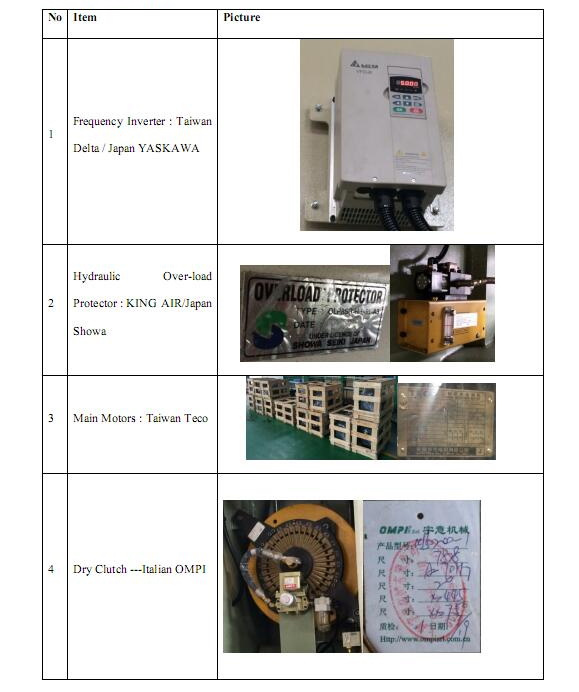

| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |

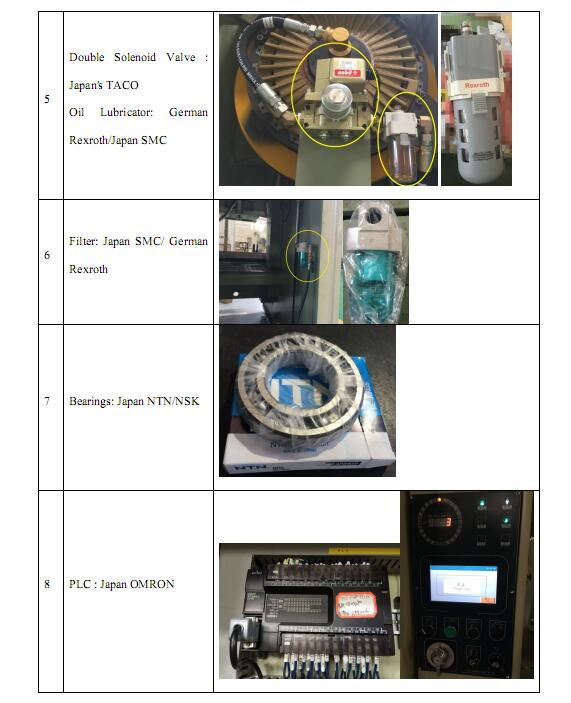

| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

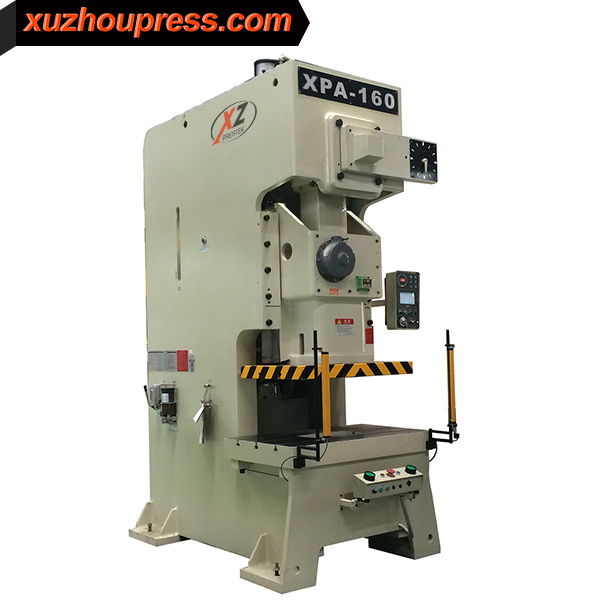

XPA Series Single-crank C Frame High Precision Power Press (15ton~315ton )
Manufacturing Standards : ISO /CE/Japanese JIS 1 Class
Video Link:
https://www.youtube.com/watch?v=W8VdLgfDk1s
https://www.youtube.com/watch?v=ZUKgNuDEqWY
https://www.youtube.com/watch?v=aspOqhfU_Xs
https://www.youtube.com/watch?v=vF466YNsa2M
https://www.youtube.com/watch?v=zOw8PCxrq34
https://www.youtube.com/watch?v=vNnXMU2qdkU
https://www.youtube.com/watch?v=EbJa_i98Lkk
1. Technical Parameters * Provide Customized Personalized Service | Item | XPA-25 | XPA-35 | XPA-45 | XPA-60 |
| Model | V | H | V | H | V | H | V | H |
| Capacity | Ton | 25 | 35 | 45 | 60 |
| Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
| Speed changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 | 35-90 | 80-120 |
| Stable speed | s.p.m | 110 | 85 | 75 | 65 |
| Stroke | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 |
| Die height | mm | 200 | 215 | 220 | 235 | 250 265 | 310 | 340 |
| Slide adjustment | mm | 50 | 55 | 60 | 75 |
| Slide area | mm | 300x230x50 | 360x250x50 | 400x300x60 | 500x360x70 |
| Bolster area | mm | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 |
| Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 |
| Main motor | kw.p | 3.7x4 | 3.7x4 | 5.5x4 | 5.5x4 |
| Slide adjust device | HP | Manual operation |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
| Presses dimension | mm | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | 1595x1000x2800 |
| Presses weight | Tons | 2.1 | 3 | 3.8 | 5.6 |
| Die cushion Optional | Capacity | Ton | - | 2.3 | 2.3 | 3.6 |
| Stroke | mm | - | 50 | 50 | 70 |
| Die cushion effective area | mm2 | - | 300x230 | 300x230 | 350x300 |
2) 80ton ~200ton Parameters
| Item | XPA-80 | XPA-110 | XPA-160 | XPA-200 |
| Model | V | H | V | H | V | H | V | H |
| Capacity | Ton | 80 | 110 | 160 | 200 |
| Rated tonnage point | mm | 4 | 2 | 6 | 3 | 6 | 3 | 6 | 3 |
| Speed changing | s.p.m | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 |
| Stable speed | s.p.m | 65 | 50 | 35 | 35 |
| Stroke | mm | 150 | 70 | 180 | 80 | 200 | 90 | 200 | 100 |
| Die height | mm | 340 | 380 | 360 | 410 | 400 | 450 | 460 | 510 |
| Slide adjustment | mm | 80 | 80 | 100 | 110 |
| Slide area | mm | 560x420x70 | 650x470x80 | 700x550x90 | 850x550x90 |
| Bolster area | mm | 1000x550x90 | 1150x600x110 | 1250x800x140 | 1350x820x140 |
| Shank hole | mm | Φ50 | Φ50 | Φ65 | Φ65 |
| Main motor | kw.p | 7.5x4 | 11x4 | 15x4 | 18x4 |
| Slide adjust device | HP | Electrial driving |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
| Presses dimension | mm | 1800x1180x2980 | 1900x1300x3200 | 2420x1390x3465 | 2420x1490x3612 |
| Presses weight | Tons | 6.5 | 9.6 | 14 | 16 |
| Die cushion Optional | Capacity | Ton | 3.6 | 6.3 | 10 | 10 |
| Stroke | mm | 70 | 80 | 80 | 80 |
| Die cushion effective area | mm2 | 450x310 | 500x350 | 650x420 | 650x420 |
3) 260ton ~315ton Parameters
| Name | XPA-260 | XPA-315 |
| Model | V | H | V | H |
| Capacity | 260 | 315 |
| Rated tonnage point | 6 | 3 | 7 | 3.5 |
| Speed changing | 20-50 | 50-70 | 20-35 | 35-50 |
| Stable speed | 30 | 30 |
| Stroke | 200 | 100 | 250 | 150 |
| Die height | 460 | 550 | 500 | 550 |
| Slide adjustment | 120 | 120 |
| Slide area | 850x630x90 | 950x700x100 |
| Bolster area | 1400x820x160 | 1600x900x200 |
| Shank hole | Φ65 | Φ65 |
| Main motor | 22x4 | 30x4 |
| Slide adjust device | Electrical Driven |
| Air pressure | 6 | 6 |
| Presses precision | GB(JIS)1 class | GB(JIS)1 class |
| Presses dimension | 2735x1780x4070 | 2845x1950x4500 |
| Presses weight | 22 | 33 |
| Die cushion capacity | 14 | 14 |
| Stroke | 100 | 100 |
| Die cushion effective area | 710x480 | 810x480 |

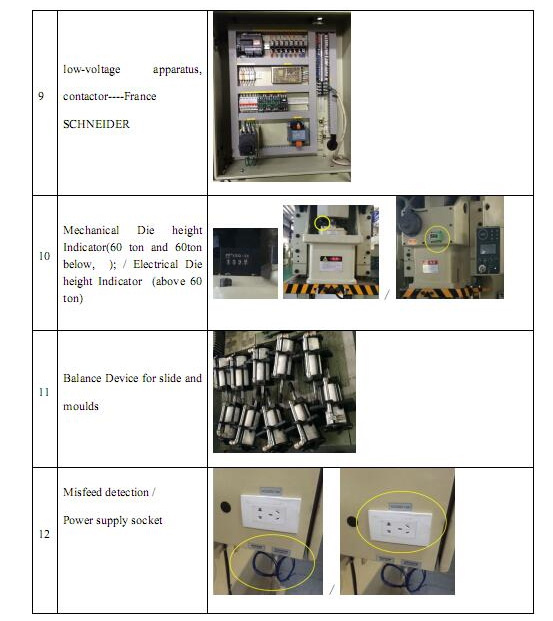

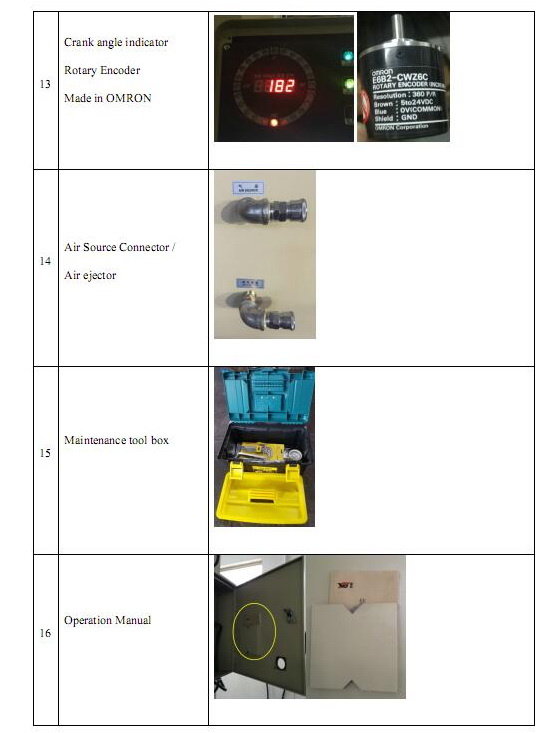

2. Technical Descriptions :
Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200, 000.00 square meters.
* Staff of about 400 people
Main Products:
*Mechanical Press
* Coil Feeder
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.
Technology advantages:
* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing:
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
