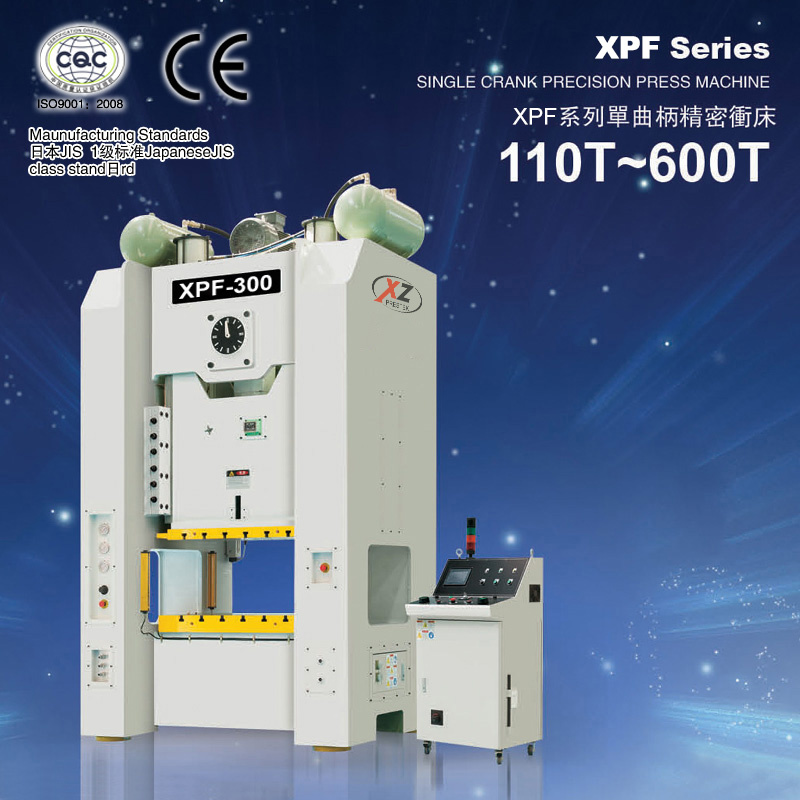

110ton-600ton Gantry Type Single Crank Power Press

Prod Model:	XPF(110ton-600ton)
Precision Standard:	GB(Japan 1 Class)
Frequency Inverter:	Taiwan Delta / Japan Yaskawa
Hydraulic Over-Load Protector:	Japan Showa/ Taiwan King Air
Dry Clutch:	Italian Ompi
Main Motors:	Taiwan Teco
Double Solenoid Valve:	Japan's Taco
Oil Lubricator/Filter:	German Rexroth/Japan SMC
Bearings:	Japan NTN/NSK
PLC:	Japan Omron
Welded Steel Structure:	Elimination of Internal Stress Process, CNC Precis
Controlling Mode:	CNC
Power Source:	Mechanical Drive
Precision:	High Precision
Type:	High Precision Power Press
Automatic Grade:	PLC Control ,Human-Machine Interface

Product Description

Manufacturing Precision Standards : Japanese JIS 1 Class

1. Parameters

1.1 110ton-260ton


Name	Unit	XPF-110		XPF-160		XPF-200		XPF-260
Model		V	H	V	H	V	H	V	H
Capacity	ton	110		160		200		260
Rated tonnage point	mm	6	3	6	3	6	3	7	3.5
Stroke	mm	180	80	200	90	200	100	250	150
Speed changing	s.p.m	30~60	60~90	20~50	40~70	20~50	50~70	20~40	40~50
Stable speed	s.p.m	50		35		35		30
Die height	mm	360	410	460	510	460	510	500	550
Slide adjustment	mm	80		100		110		120
Slide area	mm	1000x550x70		1100x600x90		1200x650x90		1300x700x100
Bolster area	mm	1100x600x110		1200x800x140		1300x820x160		1400x840x180
Side opening	mm	700x500		800x600		800x600		800x600
Main moter	kw x p	11x4		15x4		18x4		22x4
Slide adjusting moter	kw x p	0.4x4		0.75x4		0.75x4		1.5x4
Air pressure	kg/cm2	6	6	6	6	6	6	6	6
Presses Precision		GB/T23280-2009 [JIS1]

1.2 300ton-600ton


Name	Unit	XPF-300		XPF-400		XPF-500	XPF-600
Model		V	H	V	H	V	V
Capacity	ton	300		400		500	600
Rated tonnage point	mm	7	3.5	9	4.5	10	13
Stroke	mm	300	170	300	200	250	250
Speed changing	s.p.m	20~40	35~50	15~25	20~35	20~30	15~20
Stable speed	s.p.m	30		20		20	20
Die height	mm	550	615	550	600	550	550
Slide adjustment	mm	120		120		120	120
Slide area	mm	1400x800x110		1500x850x110		1400x800	1500x1200
Bolster area	mm	1500x950x200		1600x1000x200		1500x1000	1700x1300
Side opening	mm	900x600		1000x750		1000x800	1000x900
Main moter	kw x p	30x4		40x4		55x4	75x4
Slide adjusting moter	kw x p	1.5x4		2.2x4		3x4	3x4
Air pressure	kg/cm2	6	6	6	6	6	6
Presses Precision		GB/T23280-2009 [JIS1]



Product Features:
* Mix European, American, and Japanese advanced technologies, adopt functional structure CAE dynamic simulation optimization design
* High-rigidity lathe bed with high-quality steel profiling welding or cast-in-block casting part tempering process or vibration stress processing.
* High-standard fabrication processing of hard chrome plating/nitriding/grinding for key parts such as gears and bent axles ,and etc.
* Adopt high-level configurations such as high-performance controllers/drive parts/electromagnetic clutches/steam-driven elements and bearings
* International Technical grade of stamping equipment and inspection of machine index.
* High-response multi-functional superposition expansion/high-quality industrial control processor
* High-memory module/individual design franchised software compilation
* High-compatibility multi-axial variable speed drive/automation equipment onboard expansion
* High-intelligent human-computer interface/high-frequency real-time control/Ethernet & USB interface

Standard Configuration:
* Hydraulic overload protector
* Electric slider adjusting device
* Digital moulding-height indicator (unit: 0.1 mm)
* Slider and mould balancing device
* Rotary cam switch
* Crank angle indicator
* Circulation centralization lubrication oil feeding device
* Electromagnetic stroke counter
* Over-run safety device
* Programmable controller
* Moveable T-type operating platform
* Air source connector
* Independent electric control cabinet
* Maintenance tool and tool box

Optional Configuration:
* Die cushion
* Upper slider knock out device
* Die Light
* Main motor inversion device
* Photo-electric safety device
* Safety groove and safety pin
* Pre-set counter (6 digits)
* Loading inspection device
* Misfeed detection device
* Frequency converter
* Basic bolt and soleplate
* Anti-vibration foot
* Safety shelf and safety ladder
* Power socket
* Quick die change device
