AMD-357 Automatic Pneumatic Hydraulic Press, CNC Mechanical Turret Punch Press Machine, J23 Series Mechanical Power Press

AMD-357 Automatic Pneumatic Hydraulic Press, CNC Mechanical Turret Punch Press Machine, J23 Series Mechanical Power Press
Price: US $ 65000-75000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Prod Model: AMD-357
Dimension(L*W*H): 4490*5300*2110
Punch Force: 300kn
Processing Sheet Size: 2500*1250mm
Max. Processing Sheet Thickness: 6mm
Max.Punch Diameter: 88.9mm
Punching Frequency: 300-600hpm
Number Of Stations In Turret: 24/32
Main Parts Brand: Siemens, Omron, Schneider, Yaskawa
Delivery Time: 35 Workdays
Warranty: 12 Months
Type: Turret Punching Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Power Source: Hydraulic Pressure
Precision: High Precision

Product Description

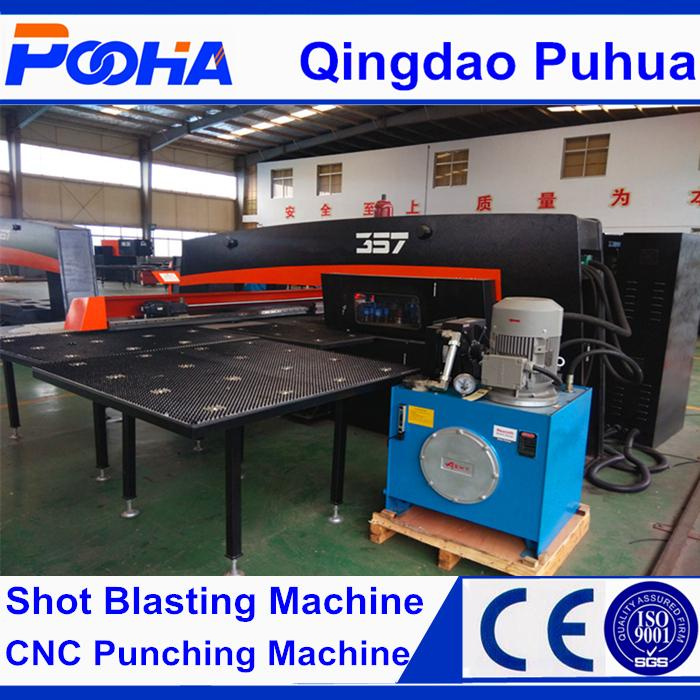

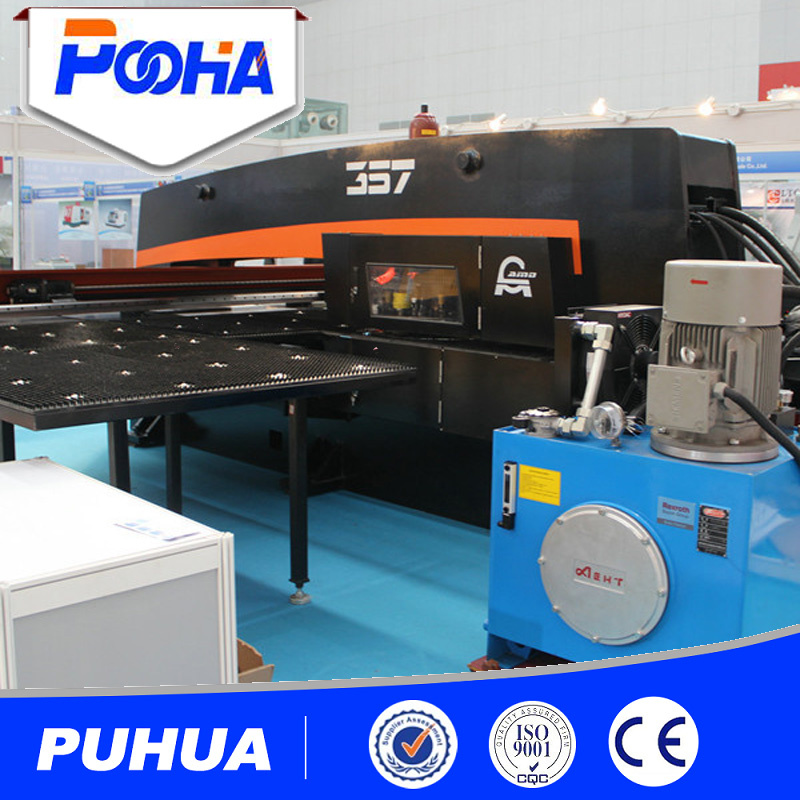

China AMD-357 cnc equipment hydraulic cnc turret punching machine


Product description:

1. Advanced and reliable hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver,
blanking, etc. The punch is equipped with auto hydraulic overload protection device, and guarantees consistent pressing force for quality products.
2. Index stations are of worm wheel structure with max. punching diameter of 88.9mm.
3. Imported pneumatic and hydraulic components guarantee reliability of the machine.
4. Centralized lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.
5. Tool station layout consists of A,B,C,D, which is convenient for the customer and save the tool cost.
6. Common requirement is for site foundation preparation and machine installation is simple.
7.Main pneumatic components,electric components,hydraulic  components and transmission  components adopt perfectly.



Technical parameter:

SpecificationUnitAMD-357
Transmission mode/Hydraulic
Punch forceKN300
Power ratingKW20
Processing sheet sizemm2500*1250 (Equipped with secondary positioning)
Processing sheet thicknessmm≤6
Max. Punch diametermmØ88.9
Sheet moving speedm/min40
Punching frequencyhpm600
Hole accuracymm±0.1
Number of stations in turretNo.16/24/32
Turret speedrpm30
Controlled axisNo.3/4
Rotating locationNo.0/2
Air pressureMpa≥0.8
Outline Dimensionmm4490*5300*2110
Machine WeightT11
