Prod Model: |
AMD-P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
One Year |
After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Application: |
Sheet Metal Processing |
Main Composition: |
Press and Feeding Platform |

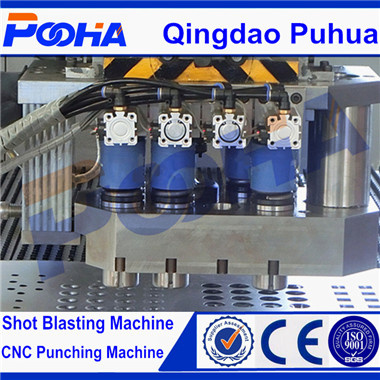

Mold Holder Arrangement: |
Screen or Inline |
Punching Frequency: |
55-300hpm |

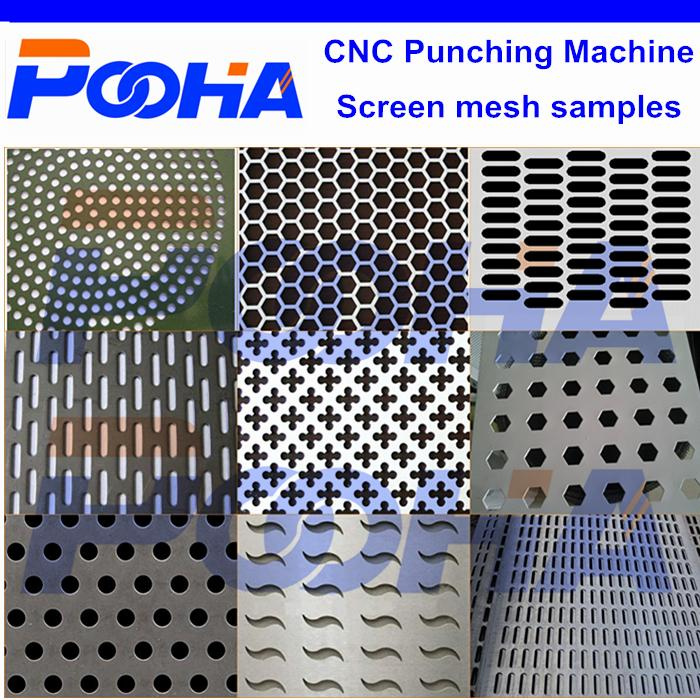

Common Hole Shapes: |
Screen Mesh, Round, Rectangle, Oval, etc |
Transmission Type: |
Mechanical, Pnuematic, Hydraulic |
Hole Accuracy: |
0.1mm |
Loading: |
Container |
Type: |
General Punching Machine |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Product Description

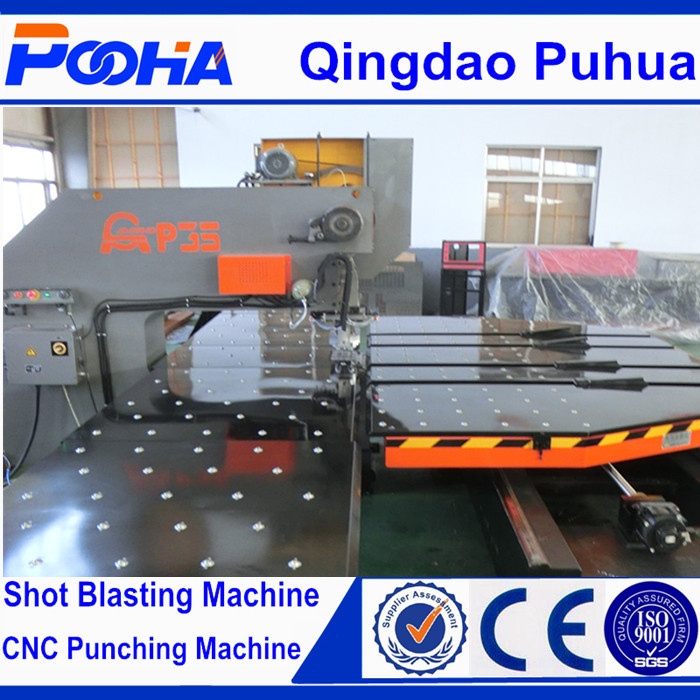

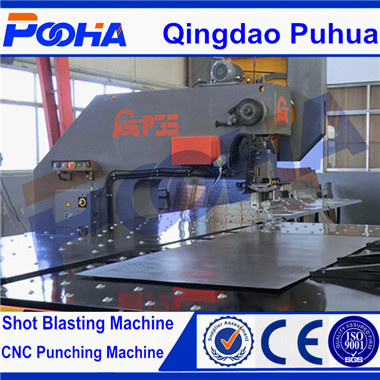

Simple CNC Power Press Machinery CE/BV/ISO Quality Performance Features as follows:
1. Industrial computer system, Qingdao AMADA company R&D, can realize the field programming, programming background; 19 inch LCD display, the screen is more clear and beautiful.
2. Imported servo motor; imported precision dual linear guide, ensure high precision, long service life; the import coupling, ensure durable, correction coefficient is high; import high guide precision range and high precision steel ball screw, ensure the machining precision and high speed.
3. Can be automatically converted to AutoCAD image processing code, no need manual programming, can also use the G code direct processing; CAD drawing is provided with mold base selection, and in the CAD file preview pattern, simple, functional.
4. Wide guide spacing design, improve the operation stability of machine tools, machining accuracy of large plate. The whole welding, tempering, eliminate stress, to ensure the long-term stability of the platform to strengthen the machine; special design, high strength support, compact structure, stable running.
5. Equipped with centralized lubrication pump, the lubrication oil directly into each lubricating point, reduce the friction of the movement of the deputy, improve service life.
Equipment specification:
Specification | Unit | AMD -P10 | AMD -P20 | AMD -P25 | AMD -P30 | AMD -P35 |
Punch Force | KN | According to the pressure plate processing need |
Max.Processing Size | mm | 1000 *1000 | 1000 *2000 | 1250 *2500 | 3000 *1250 | 3500 *1250 |
Max. sheet Thickness | mm | 6 | 6 | 6 | 6 | 6 |
Max. Loading weight | Kg | 50 | 90 | 105 | 125 | 145 |
Punch Hit | HPM | 60-300 | 60-300 | 60-300 | 60-300 | 60-300 |
Machine Weight | T | 4 | 6 | 7.5 | 8.5 | 9.5 |
Max.Traversing Speed | m/min | 40 | 40 | 40 | 40 | 40 |
Hole Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
Voltage Rtaing | V | Customization according to different countries |
Power Rating | KW | 6 | 7 | 8.5 | 8.5 | 9 |
Our service:
1 | Reply your inquiry in 24 hours. |
2 | Experienced staffs answer all your questions in time. |
3 | Customized design is available. |
4 | Exclusive and unique solution can be provided to our customer by our professional engineers and staff. |
5 | Special discount and protection of sales are provided to our distributor. |
6 | We are professional manufacturer of CNC Punching Machine. Have a professional design team with more than 10 years design experience engineers, competitive with good quality |
7 | As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. |
8 | Prompt delivery, site installation and commissioning. |
FAQ:
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
After-sale service:
1. Installation and commissioning issue of CNC punching machine: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need prepare installation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
Any question pls contact with us and welcome you to visit our factory.
Qingdao Puhua Heavy Industry is established in 2006, total registered capital over 8, 500, 000 dollar, total area nearly 500, 000 square meter. The company owns four subsidiary corporation: Qingdao Puhua Heavy Industrial Machinery Co., Ltd; Qingdao AMADA Numerical Control Technology Co., Ltd; Qingdao Puhua Dongjiu Heavy Industrial Machinery Co., Ltd and Qingdao Jichuan Automation Technology Co., Ltd. We are the National High-tech enterprise, collection of surface cleaning equipment, foundry machinery, painting production line, CNC forging equipment, environmental protection equipment and other industrial research and development.
The company has passed ISO90001, CE and BV certification.
The company always insists on technological innovation as the guide, focus on cooperating with world first-class company in technology, widely absorb international high-end core technology, and focus on technological innovation and talent accumulation.
Technological Achievements:
1. The first four axis CNC turret punch press in Shandong Peninsula
2. The first servo driven CNC turret punch press in Northern China
3. The first shot blasting machine used in office building external decoration
Marble in China
4. The first special high speed rail turnout shot blasting machine in China
5. The first high speed rail blasting & painting integrated machine in China
6. The first FRP cable tray shot blasting machine in China
7. The first double rotating trolley shot blasting machine in China
8. The first shot blasting machine used for aggrandizement floor grinding tool in China
As the leading enterprise of surface cleaning industry, these achievements covered multiterm technology gaps in China.
"Technological Innovation, Sincere Service" as the company business guideline, relying on high-end technology and products, developing international market, actively participate in international competition to promote Chinese products to the world, their products have exported to Europe, North America, South America, Southeast Asia, Middle East, Africa, Australia and other area, has founded agents in the USA, Russia, Saudi Arabia, Iran, Ukraine, Vietnam and other countries. "Effecient Collaboration, International Warranty" is their after-sale service principle.
"Integrity, Innovation, Integration" as business philosophy, "Informatization, Globalization" as development direction, the company insists the "Technological Innovation, Sincere Service", focus on delivering the best service and most cost performance product.
