AMD-357 Automatic Pneumatic Mechanical Press, CNC Mechanical/Hydraulic Turret Punch Press Machine, Series Mechanical Power Press
| Price: |
US $ 65000-75000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
AMD-357 |
| Dimension(L*W*H): |
4490*5300*2110 |
| Punch Force: |
300kn |
| Processing Sheet Size: |
2500*1250mm |
| Max. Processing Sheet Thickness: |
6mm |
| Max.Punch Diameter: |
88.9mm |
| Punching Frequency: |
300-600hpm |
| Number Of Stations In Turret: |
24/32 |
| Main Parts Brand: |
Siemens, Omron, Schneider, Yaskawa |
| Delivery Time: |
35 Workdays |
| Warranty: |
12 Months |
| Type: |
Turret Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
Product Description

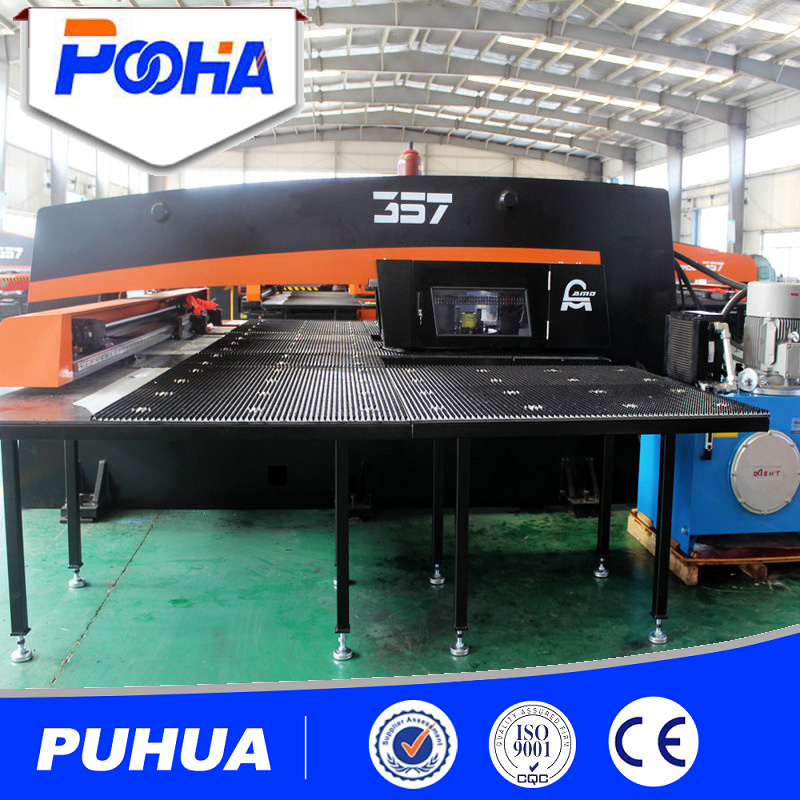

China AMD-357 cnc equipment hydraulic cnc turret punching machine
Product description:
1. Advanced and reliable hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver,
blanking, etc. The punch is equipped with auto hydraulic overload protection device, and guarantees consistent pressing force for quality products.
2. Index stations are of worm wheel structure with max. punching diameter of 88.9mm.
3. Imported pneumatic and hydraulic components guarantee reliability of the machine.
4. Centralized lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.
5. Tool station layout consists of A,B,C,D, which is convenient for the customer and save the tool cost.
6. Common requirement is for site foundation preparation and machine installation is simple.
7.Main pneumatic components,electric components,hydraulic components and transmission components adopt perfectly.
Technical parameter:
| Specification | Unit | AMD-357 |
| Transmission mode | / | Hydraulic |
| Punch force | KN | 300 |
| Power rating | KW | 20 |
| Processing sheet size | mm | 2500*1250 (Equipped with secondary positioning) |
| Processing sheet thickness | mm | ≤6 |
| Max. Punch diameter | mm | Ø88.9 |
| Sheet moving speed | m/min | 40 |
| Punching frequency | hpm | 600 |
| Hole accuracy | mm | ±0.1 |
| Number of stations in turret | No. | 16/24/32 |
| Turret speed | rpm | 30 |
| Controlled axis | No. | 3/4 |
| Rotating location | No. | 0/2 |
| Air pressure | Mpa | ≥0.8 |
| Outline Dimension | mm | 4490*5300*2110 |
| Machine Weight | T | 11 |
Company information:1. We are China Leading CNC Turret Punching Machine Manufacturer.
2. Alibaba Assessed 4 years Gold Supplier.
3. Inspected by the Inspection Institution of Bureau Veritas Certification.
4. 100% QC inspection Before Shipment.
5. Best Quality & Best Service with Competitive price.Our service:1. Reply your inquiry in 24 working hours.2. Experienced staffs answer all your questions in fluent English.3. Customized design is available. UEM&UBM are welcomed.4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.5. Special discount and protection of sales are provided to our distributor.6. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Qingdao Puhua Heavy Industry is established in 2006, total registered capital over 8, 500, 000 dollar, total area nearly 500, 000 square meter. The company owns four subsidiary corporation: Qingdao Puhua Heavy Industrial Machinery Co., Ltd; Qingdao AMADA Numerical Control Technology Co., Ltd; Qingdao Puhua Dongjiu Heavy Industrial Machinery Co., Ltd and Qingdao Jichuan Automation Technology Co., Ltd. We are the National High-tech enterprise, collection of surface cleaning equipment, foundry machinery, painting production line, CNC forging equipment, environmental protection equipment and other industrial research and development.
The company has passed ISO90001, CE and BV certification.
The company always insists on technological innovation as the guide, focus on cooperating with world first-class company in technology, widely absorb international high-end core technology, and focus on technological innovation and talent accumulation.
