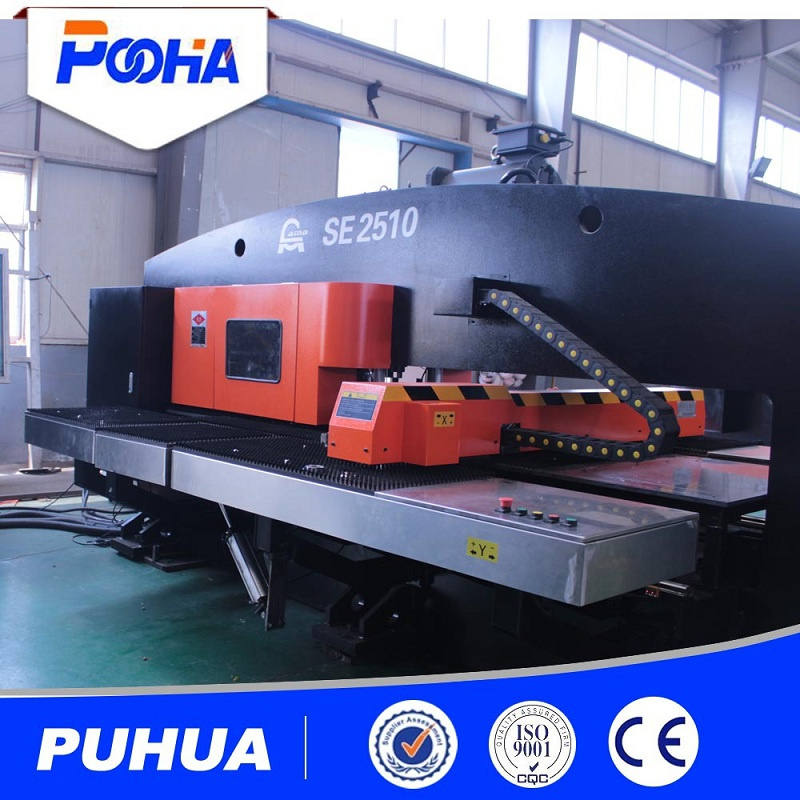

Prod Model: |
AMD-SE2510 |
Punchine Machine Name: |
Servo Driven CNC Turret Punching Machine |
Configuration: |
Yaskawa, Rexroth, Omron, Airtac, Fagor |
Hole Shape: |
Round, Square, Rectangle, Louver |
CNC Controller: |
Germany Rexroth System CNC Turret Punch Press |
Processing Plate Thickness: |
0.5-6 mm Carbon Steel |
Punching Frequency: |
1800 Hpm / Min |
Advantage: |
High Punching Speed, High Accuracy |
Warranty: |
12 Months |
Auto-Index: |
2 |
Size: |
AMD-357 |
Type: |
Turret Punching Machine |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Power Source: |
Servo Driven |
Certification: |
BV |
Product Description

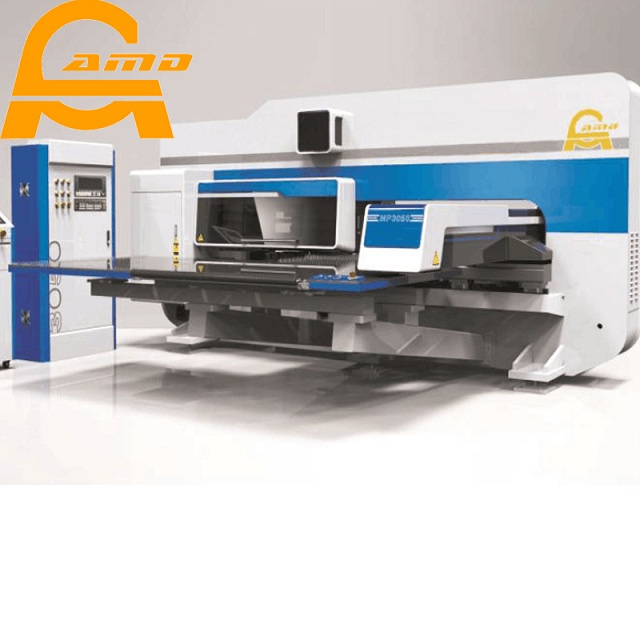

Power Press Servo Driven CNC Turret Punching Machine
Station | Size | Station No |
16 | 24 | 32 |
A | 3mm~12.7mm | 8 | 12 | 16 |
B | 12.7mm~31.7mm | 4 | 8 | 12 |
C | 31.7mm~50.8mm | 2 | 2 | 2 |
D | 50.8mm~88.9mm | 2 | 2 | 2 |
Main configuration of Turret Punching Machine CNCControl system: Germany Rexroth
Servo motor: Germany Rexroth
Servo amplifier: YASKAWA (from Japan)
Precision ball screw assemblies: TBI (from taiwan)
Precision liner roller rail: ABBA (from taiwan)
Electric parts: OMRON
Our service of CNC Turret Punching machine:1 | Reply your inquiry in 12 working hours. |
2 | Experienced staffs answer all your questions in time. |
3 | Customized design is available. |
4 | Exclusive and unique solution can be provided to our customer by our professional engineers and staff. |
5 | Special discount and protection of sales are provided to our distributor. |
6 | We are professional manufacturer of sCNC punching Machine. Have a professional design team with more than 10 years design experience engineers, competitive with good quality. |
7 | As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. |
8 | Prompt delivery, site installation and commissioning. |

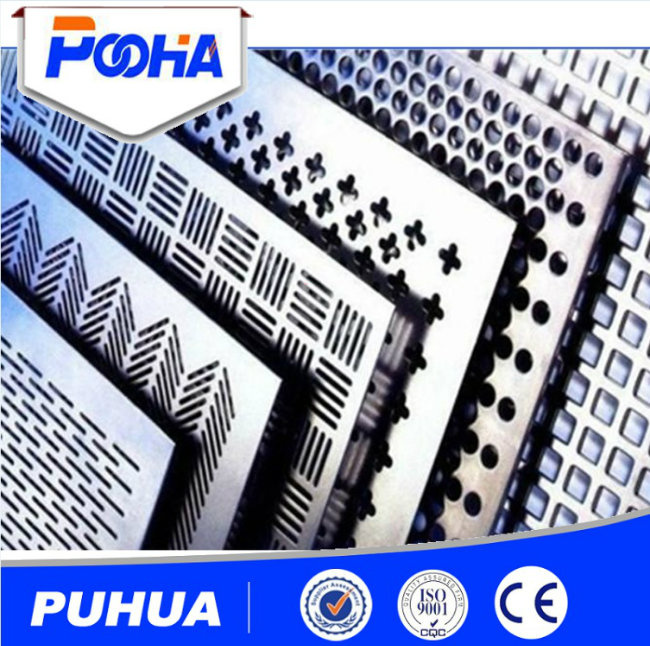

Punching samples:
After-sele service:1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from B/L date.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as Egypt, Qatar, UAE, India, Venezuela, Algeria, Sudan, Paraguay, Costa Rica, etc.

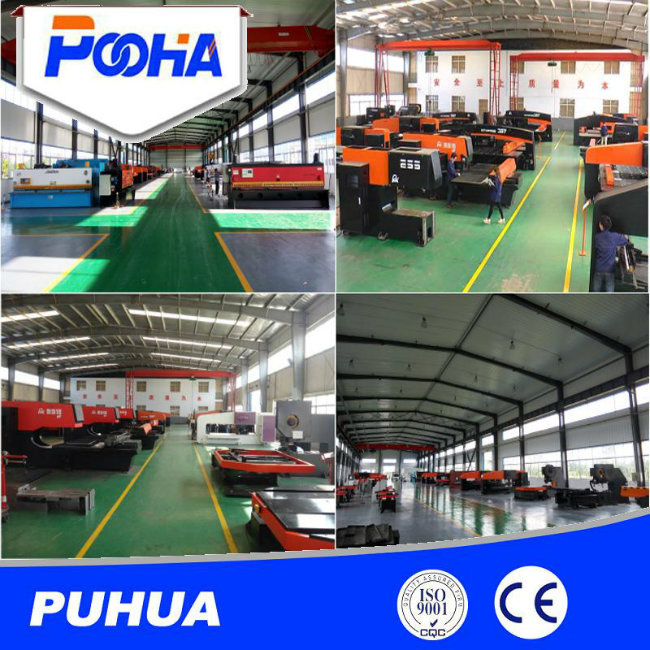

Workshop layout:
Shipping terms | FOB Qingdao |
Package | Standard container with stretch film. |
Payment | T/T, L/C. 30% deposit, 70% balance before delivery |
Delivery time : | 20-35 workday |
Customer visiting:
8 | We are China Leading CNC Turret Punching Machine Manufacturer. |
9 | Alibaba Assessed 5 years Gold Supplier. |
10 | Inspected by the Inspection Institution of Bureau Veritas Certification. |
11 | 100% QC inspection Before Shipment. |
12 | Best Quality & Best Service with Competitive price. |
Certificates:
Qingdao Puhua Heavy Industry is established in 2006, total registered capital over 8, 500, 000 dollar, total area nearly 500, 000 square meter. The company owns four subsidiary corporation: Qingdao Puhua Heavy Industrial Machinery Co., Ltd; Qingdao AMADA Numerical Control Technology Co., Ltd; Qingdao Puhua Dongjiu Heavy Industrial Machinery Co., Ltd and Qingdao Jichuan Automation Technology Co., Ltd. We are the National High-tech enterprise, collection of surface cleaning equipment, foundry machinery, painting production line, CNC forging equipment, environmental protection equipment and other industrial research and development.
The company has passed ISO90001, CE and BV certification.
The company always insists on technological innovation as the guide, focus on cooperating with world first-class company in technology, widely absorb international high-end core technology, and focus on technological innovation and talent accumulation.
Technological Achievements:
1. The first four axis CNC turret punch press in Shandong Peninsula
2. The first servo driven CNC turret punch press in Northern China
3. The first shot blasting machine used in office building external decoration
Marble in China
4. The first special high speed rail turnout shot blasting machine in China
5. The first high speed rail blasting & painting integrated machine in China
6. The first FRP cable tray shot blasting machine in China
7. The first double rotating trolley shot blasting machine in China
8. The first shot blasting machine used for aggrandizement floor grinding tool in China
As the leading enterprise of surface cleaning industry, these achievements covered multiterm technology gaps in China.
"Technological Innovation, Sincere Service" as the company business guideline, relying on high-end technology and products, developing international market, actively participate in international competition to promote Chinese products to the world, their products have exported to Europe, North America, South America, Southeast Asia, Middle East, Africa, Australia and other area, has founded agents in the USA, Russia, Saudi Arabia, Iran, Ukraine, Vietnam and other countries. "Effecient Collaboration, International Warranty" is their after-sale service principle.
"Integrity, Innovation, Integration" as business philosophy, "Informatization, Globalization" as development direction, the company insists the "Technological Innovation, Sincere Service", focus on delivering the best service and most cost performance product.
