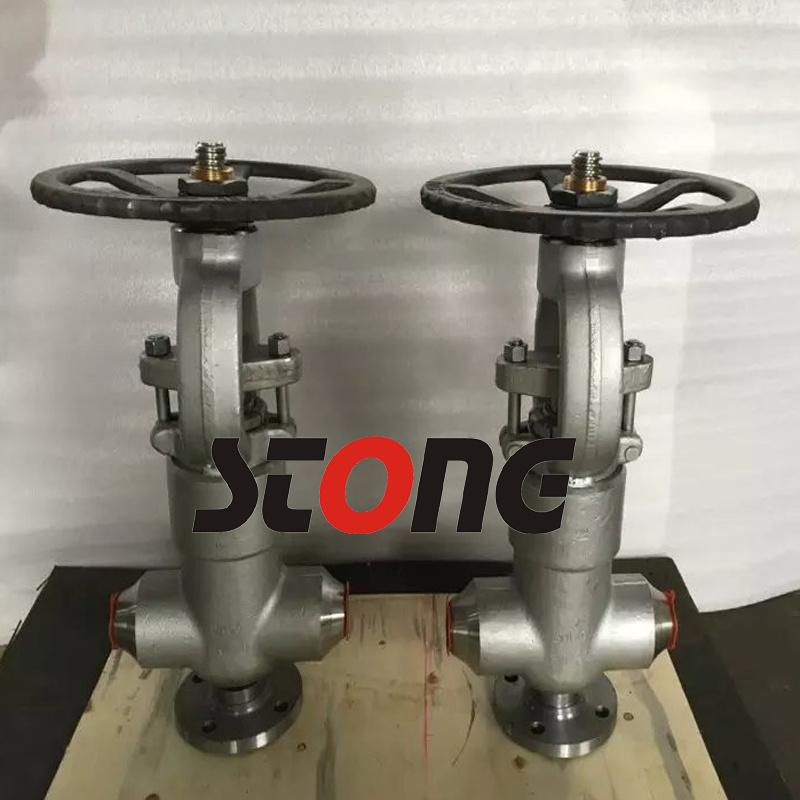

API 602 900lb~2500lb Pressure Seal Bonnet Forge Gate Valve
Price: |
US $ 5-100/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Operation: |
Gear or Handwheel |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Industrial Usage |
Product Description
API 602 Forge Steel Gate Valve 900LB~ 2500LB
Weld Bonnet or Pressure Seal Bonnet,
RTJ,RF , BW,SW, NPT Forged Steel Gate Valve Size: 1/4"-4" Pressure: 150LB-4500LB Design and manufacture conform to API 602, BS5352 & ASME 16.34 Test and check conform to API 598, API 6D Remarks conform to MSS-SP-25 Adopt the following structure Full bore or reduced bore Outside screw and yoke Self-centering gland Bolted bonnet ,spiral would eight-square gasket sealing bonnet or pressure seal bonnet Integral type top seat According to the follwing standard Flange ends confrm to ASME B16.5 Butt-welding ends conform to ASME B 16.25 Socket-welding ends conform to ASME B 16.11 Screwed ends conform to ASME B1.20.1 Face to face dimension conform to ASME B 16.10 Operation type:hand wheel, electrical, pneumatic and hydraulic etc |
|
Material list for main parts |
No. | Part name | ASTM |
Carbon steel | Tainless steel | Alloy steel |
1 | Body | A105 | LF2/LF3 | A182 F304 | A182 F11/F22 |
2 | Seat | A182F6a | A182F6a | A182 F304 | A182 F6a |
3 | Wedge | A182F6a | A182f6a | A182 F304 | A182 F6a |
4 | Stem | A276-410 | A276-410 | A276-304 | A276-410 |
5 | Gasket | Graphite+304 |
6 | Sealing Ring | Grapite |
7 | Yoke | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
8 | Bonnet | A105 | A350 LF2/LF3 | A182 F304 | A182 F11/F22 |
9 | BOlt | A193 B7 | A320 L7 | A193 B8 | A193 B16 |
10 | Packing | Graphite |
11 | Stem Bushing | A276-410 | A276-410 | A276-304 | A276-410 |
12 | Gland | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
13 | Eye Bolt | A193 B7 | A320 L7 | A193 B8 | A193 B7 |
14 | Stem Nut | A276-410 |
15 | Handwheel | A197orA47-32510 |
Performance specification |
Norminal Pressure | Class |
150 | 300 | 600 | 800 | 900 | 1500 | 2500 |
(MPa) Test Pressure | Shell Test | 2.93 | 7.55 | 10.0 | 20.1 | 15.0 | 37.5 | 63.0 |
High Pressure Seal Test | 2.07 | 5.52 | 7.31 | 14.7 | 11.03 | 27.5 | 16.2 |
Low pressure Seal Test | 0.6 |
Applicable Temperature | =425? |
Applicable Medium | Water,oil & gas |
Pressure | Size | Main Dimension | Weight(kg) |

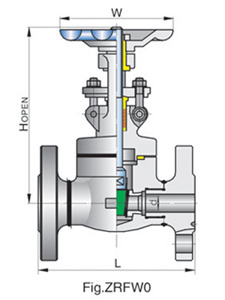

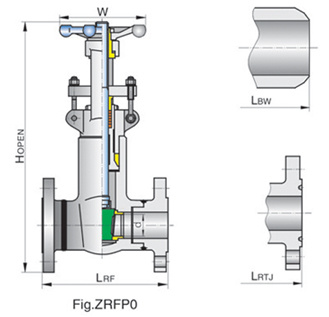

mm | in | d | LRF | LBW | LRTJ | H | W |
WB | PB | WB | PB |
Class900 | 15 | 1/2 | 10 | 216 | 216 | 216 | 197 | 321 | 180 | 9.8 | 11.5 |
20 | 3/4 | 13 | 229 | 229 | 229 | 211 | 321 | 180 | 9.7 | 11.2 |
25 | 1 | 19 | 254 | 254 | 254 | 238 | 321 | 180 | 9.5 | 10.8 |
32 | 11/4 | 24 | 279 | 279 | 279 | 257 | 380 | 200 | 17.5 | 18.0 |
40 | 11/2 | 40 | 305 | 305 | 305 | 276 | 414 | 200 | 21.6 | 22.0 |
50 | 2 | 50 | 368 | 368 | 371 | 320 | 502 | 300 | 42.7 | 44.0 |
Class1500 | 15 | 1/2 | 10 | 216 | 216 | 216 | 197 | 321 | 180 | 9.8 | 11.5 |
20 | 3/4 | 13 | 229 | 229 | 229 | 211 | 321 | 180 | 9.7 | 11.2 |
25 | 1 | 19 | 254 | 254 | 254 | 238 | 321 | 180 | 9.5 | 10.8 |
32 | 11/4 | 24 | 279 | 279 | 279 | 257 | 380 | 200 | 17.5 | 18.0 |
40 | 11/2 | 40 | 305 | 305 | 305 | 276 | 414 | 200 | 21.6 | 22.0 |
50 | 2 | 50 | 368 | 368 | 371 | 320 | 502 | 300 | 42.7 | 44.0 |
Class2500 | 15 | 1/2 | 10 | 264 | 264 | 264 | 197 | 321 | 180 | 12.3 | 13.0 |
20 | 3/4 | 13 | 273 | 273 | 273 | 211 | 321 | 180 | 21.1 | 12.7 |
25 | 1 | 19 | 308 | 308 | 308 | 238 | 321 | 180 | 11.8 | 12.5 |
32 | 11/4 | 24 | 349 | 349 | 352.2 | 257 | 380 | 200 | 20.9 | 21.8 |
40 | 11/2 | 40 | 384 | 384 | 387.2 | 276 | 414 | 200 | 27.5 | 29.3 |
50 | 2 | 50 | 451 | 451 | 454.2 | 320 | 502 | 300 | 53.3 | 55.4 |
