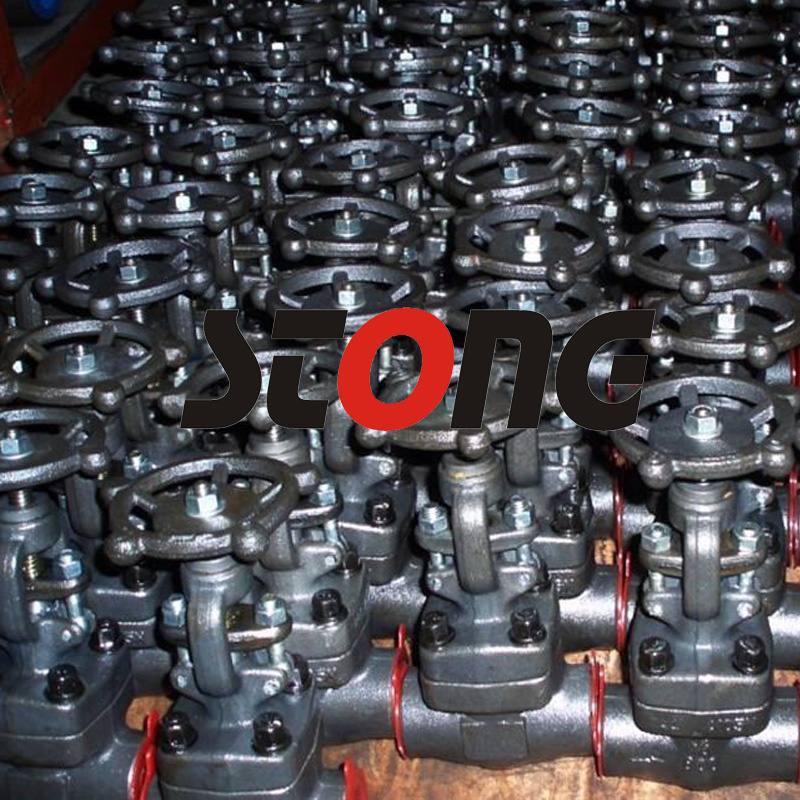

API 602 Forge Gate Valve
Price: |
US $ 5-100/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
ZF |
Operation: |
Gear or Handwheel |
Material: |
Stainless Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Industrial Usage |
Connection Form: |
Butt Weld |
Product Description
API 602 Forge Steel Gate Valve 150LB~ 800LB
Bolt Bonnet or Weld Bonnet, BW,SW, NPT
OS&Y or ISRSForged Steel Gate Valve Size: 1/4"-4" Pressure: 150LB-4500LB Design and manufacture conform to API 602, BS5352 & ASME 16.34 Test and check conform to API 598, API 6D Remarks conform to MSS-SP-25 Adopt the following structure Full bore or reduced bore Outside screw and yoke Self-centering gland Bolted bonnet ,spiral would eight-square gasket sealing bonnet or pressure seal bonnet Integral type top seat According to the follwing standard Flange ends confrm to ASME B16.5 Butt-welding ends conform to ASME B 16.25 Socket-welding ends conform to ASME B 16.11 Screwed ends conform to ASME B1.20.1 Face to face dimension conform to ASME B 16.10 Operation type:hand wheel, electrical, pneumatic and hydraulic etc |
|

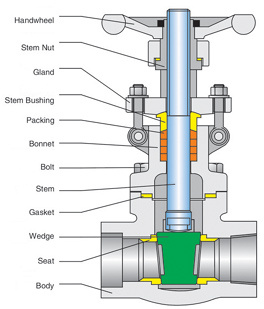

Material list for main parts |
No. | Part name | ASTM |
Carbon steel | Tainless steel | Alloy steel |
1 | Body | A105 | LF2/LF3 | A182 F304 | A182 F11/F22 |
2 | Seat | A182F6a | A182F6a | A182 F304 | A182 F6a |
3 | Wedge | A182F6a | A182f6a | A182 F304 | A182 F6a |
4 | Stem | A276-410 | A276-410 | A276-304 | A276-410 |
5 | Gasket | Graphite+304 |
6 | Sealing Ring | Grapite |
7 | Yoke | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
8 | Bonnet | A105 | A350 LF2/LF3 | A182 F304 | A182 F11/F22 |
9 | BOlt | A193 B7 | A320 L7 | A193 B8 | A193 B16 |
10 | Packing | Graphite |
11 | Stem Bushing | A276-410 | A276-410 | A276-304 | A276-410 |
12 | Gland | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
13 | Eye Bolt | A193 B7 | A320 L7 | A193 B8 | A193 B7 |
14 | Stem Nut | A276-410 |
15 | Handwheel | A197orA47-32510 |
Performance specification |
Norminal Pressure | Class |
150 | 300 | 600 | 800 | 900 | 1500 | 2500 |
(MPa) Test Pressure | Shell Test | 2.93 | 7.55 | 10.0 | 20.1 | 15.0 | 37.5 | 63.0 |
High Pressure Seal Test | 2.07 | 5.52 | 7.31 | 14.7 | 11.03 | 27.5 | 16.2 |
Low pressure Seal Test | 0.6 |
Applicable Temperature | =425? |
Applicable Medium | Water,oil & gas |
Pressure | Structure | Size | Main Dimension | Weight(kg) |
mm | in | d | L | H | W |
? | ? | ? | ? | ? | ? | ? | ? |

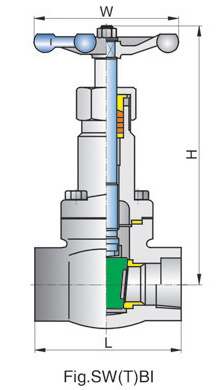

Class 150~600 Class800 | OS&Y | 8 | - | 1/4 | - | 7 | - | 79 | 166 | 100 | 2.2 | - |
10 | 8 | 3/8 | 1/4 | 10 | 7 | 79 | 166 | 100 | 2.2 | 2.2 |
15 | 10 | 1/2 | 3/8 | 10 | 10 | 79 | 166 | 100 | 2.2 | 2.2 |
20 | 15 | 3/4 | 1/2 | 13 | 13 | 92 | 169 | 100 | 2.2 | 2.2 |
25 | 20 | 1 | 3/4 | 18 | 18 | 111 | 193 | 125 | 4.7 | 4.3 |
32 | 25 | 11/4 | 1 | 24 | 24 | 120 | 236 | 160 | 5.9 | 5.9 |
40 | 32 | 11/2 | 11/4 | 29 | 29 | 120 | 146 | 160 | 6.9 | 6.9 |
50 | 40 | 2 | 11/2 | 36.5 | 36.5 | 140 | 283 | 189 | 11.1 | 11.1 |
- | 50 | - | 2 | - | 46.5 | 178 | 330 | 200 | - | 15.2 |
Class 150~600 Class800 | ISRS | 8 | - | 1/4 | - | 7 | - | 79 | 169 | 100 | 2.2 | - |
10 | 8 | 3/8 | 1/4 | 10 | 7 | 79 | 169 | 100 | 2.2 | 2.4 |
15 | 10 | 1/2 | 3/8 | 10 | 10 | 79 | 169 | 100 | 2.2 | 2.4 |
20 | 15 | 3/4 | 1/2 | 13 | 13 | 92 | 182 | 100 | 2.2 | 2.3 |
25 | 20 | 1 | 3/4 | 18 | 18 | 111 | 208 | 125 | 4.6 | 4.8 |
32 | 25 | 11/4 | 1 | 24 | 24 | 120 | 254 | 160 | 5.9 | 6.1 |
40 | 32 | 11/2 | 11/4 | 29 | 29 | 120 | 290 | 160 | 6.9 | 7.2 |
50 | 40 | 2 | 11/2 | 36.5 | 36.5 | 140 | 330 | 180 | 11.1 | 11.2 |
- | 50 | - | 2 | - | 46.5 | 178 | 372 | 200 | - | 14.1 |
