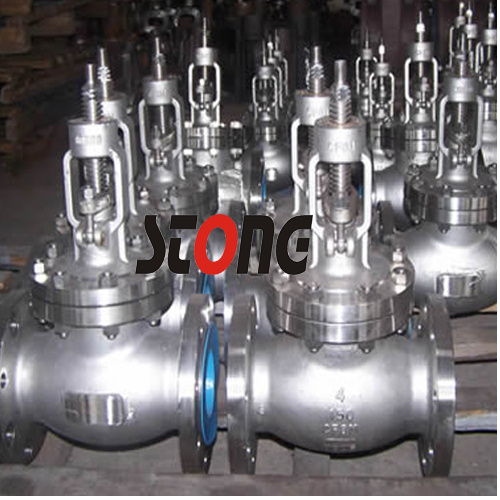

API ANSI BS Stainless Steel Cast Globe Valve for 150lb
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
JZ |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Plunger Type Globe Valve |
| Standard: |
ANSI |
Product Description
API ANSI BS Stainless Steel Gate Valve
Bolt Bonnet , RF,FF, BW,RTJ, OS&Y Size: 2'-40'
Pressure: 150LB-2500LB
Design and manufacture conform to ASME 16.34 & BS 1873
Test and check conform to API 598, API 6D
Remarks conform to MSS-SP-25
Adopt the following structure
Taper sealing disc or soft seal structure
Self-centering gland
Bolted bonnet ,spiral would eight-square gasket
sealing bonnet or pressure seal bonnet
According to the follwing standard
Flange ends confrm to ASME B16.5 & ASME B 16.47A
Butt-welding ends conform to ASME B 16.25
Face to face dimension conform to ASME B 16.10
Operation type:hand wheel, worm gear, bevel gear, electrical, pneumatic and hydraulic etc
| Bolted bonnet | | Class150,14"and above:with bearing structure | | Class300,10"and above:with bearing structure | Class300,16"and above:gear Operated |
|

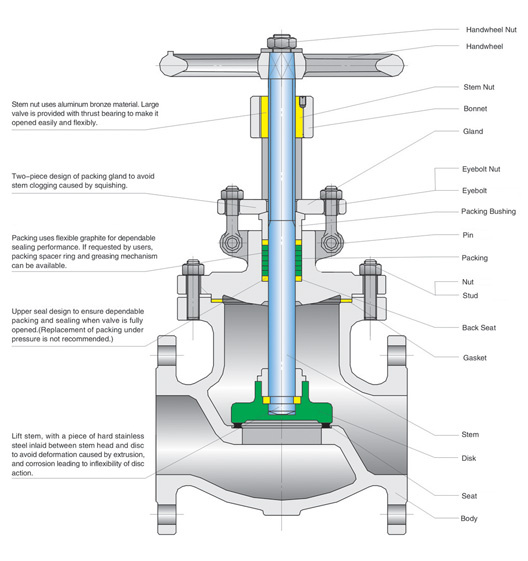

NO. | Part Name | Carbon Steel | Stainless Steel | Alloy Steel | Low Temperature Steel |
1 | Body | A216 GR WCB | A351 GR CF8 | A217 GR WC6 | A352 GR LCB |
2 | Seat | A105 | - | A182 GR F304 | A182 GR F304 |
3 | Disk | A216 GR WCB | A351 GR CF8 | A217 GR WC6 | A352 GR LCb |
4 | Stem | A276 TYPE 410 | A276 TYPE 304 | A182 GR F22 | A276 TYPE 304 |
5 | Stud | A193 GR B7 | A193 GR 8 | A193 GR B7 | A193 GR 8 |
6 | Nut | A194 GR 2H | A194 GR B8 | A194 GR 4 | A194 GR B8 |
7 | Back Seat | A182 GR F6a | A182 GR F304 | A182 GR F304 | A182 GR F304 |
8 | Gasket | Graphite+SS304 |
9 | Packing | Graphite |
10 | Pin | A194 GR 2H | A276 TYPE 304 | A276 TYPE 410 | A276 TYPE 304 |
11 | Packing Bushing | A182 GR F6a | A182 GR F304 | A182 GR F6a | A182 GR F304 |
12 | Eyebolt | A193 GR B7 | A193 GR B8 | A193 GR B7 | A194 GR B8 |
13 | Eyebolt Nut | A194 GR 2H | A193 GR 8 | A193 GR 4 | A193 GR 8 |
14 | Gland | A216 GR WCB | A351 GR CF8 | A216 GR WCB | A352 GR LCB |
15 | Bonnet | A216 GR WCB | A351 GR CF8 | A216 GR WCB | A352 GR LCB |
16 | Stem Nut | B148 UNS C95600 | B148 UNS C95600 | B148 UNS C95600 | B148 UNS C95600 |
17 | Handwheel | A197 | A197 | A197 | A197 |
18 | Handwheel Nut | A108 GR 1020 | A182 GR F304 | A108 GR 1020 | A108 GR F304 |
| BS Cast Steel Globe Valve Technical Specification |
| Design Standard | BS1873 ASME B16.34 |
| Pressure-Temperature Rating | ASME B16.34 |
| Face-Face | ASME B16.10 |
| Flange Ends | ASME B16.5 |
| Buttwelding Ends | ASMe 16.25 |
| Inspection & Test | API598 |
| Norminal Pressure(Class) | 150 | 300 | 400 | 600 | 900 | 1500 |
(Mpa)
TestPressure | Shell Test | 2.93 | 7.55 | 10.0 | 15.0 | 22.5 | 37.5 |
| High Pressure Seal Test | 2.07 | 5.52 | 7.31 | 11.03 | 16.5 | 27.5 |
| Low Pressure Seal Test | 0.6 |
| Applicable Temperature | -196?~550? |
| Applicable Medium | Water,oil,gas and other causticity meduium(Different raw material for different medium |

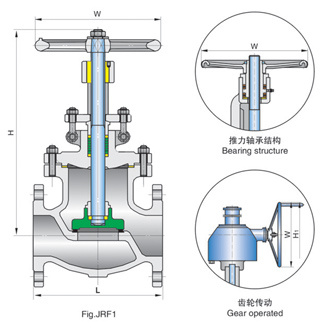

Main Dimensions & WeightPressure | Size | Main Dimension | | | (N.m)Toqure | Cv |
mm | in | LRF | LBW | LRJ | H | H1 | W | RF | BW |
Class150 | 40 | 11/2 | 165 | 165 | 178 | 298 | - | 200 | 14 | 11 | 16 | - |
50 | 2 | 203 | 203 | 216 | 343 | - | 200 | 23 | 19 | 19 | - |
65 | 21/2 | 216 | 216 | 229 | 365 | - | 250 | 32 | 25 | 29 | - |
80 | 3 | 241 | 241 | 254 | 375 | - | 250 | 38 | 31 | 45 | 100 |
100 | 4 | 292 | 292 | 305 | 448 | - | 250 | 63 | 53 | 67 | 185 |
150 | 6 | 406 | 406 | 419 | 584 | - | 350 | 108 | 90 | 129 | 440 |
200 | 8 | 495 | 495 | 508 | 660 | - | 450 | 186 | 164 | 245 | 810 |
250 | 10 | 622 | 622 | 635 | 683 | - | 450 | 271 | 239 | 385 | 1260 |
300 | 12 | 698 | 698 | 711 | 794 | - | 610 | 374 | 326 | 601 | 1890 |
350 | 14 | 787 | 787 | 800 | 889 | - | 610 | 610 | - | 649 | 2441 |
400 | 16 | 914 | 914 | 927 | - | 977 | 720 | 880 | - | - | 3234 |
450 | 18 | 977 | 977 | - | - | 1066 | 720 | 1150 | - | - | 4308 |
500 | 20 | 977 | 977 | - | - | 1117 | 720 | 1650 | - | - | 5364 |
600 | 24 | 1295 | 1295 | - | - | 1295 | 850 | 2200 | - | - | 7825 |
Class 300 | 40 | 11/2 | 229 | 229 | 241 | 365 | - | 200 | 27 | 21 | 24 | - |
50 | 2 | 267 | 267 | 283 | 4356 | - | 200 | 36 | 30 | 30 | - |
65 | 21/2 | 292 | 292 | 308 | 476 | - | 250 | 47 | 39 | 51 | - |
80 | 3 | 318 | 318 | 333 | 479 | - | 250 | 62 | 50 | 84 | 100 |
100 | 4 | 356 | 356 | 371 | 581 | - | 350 | 102 | 83 | 145 | 185 |
150 | 6 | 444 | 444 | 460 | 657 | - | 450 | 176 | 146 | 319 | 440 |
200 | 8 | 559 | 559 | 575 | 724 | - | 450 | 288 | 244 | 617 | 810 |
250 | 10 | 622 | 622 | 638 | 800 | - | 860 | 770 | 669 | 1988 | 1260 |
300 | 12 | 711 | 711 | 727 | 900 | - | 860 | 770 | 669 | 1988 | 1890 |
350 | 14 | 838 | 838 | - | 1092 | - | 860 | 876 | - | - | 2441 |
400 | 16 | 863 | 863 | - | - | 1371 | 610 | 1200 | - | - | 3234 |
450 | 18 | 977 | 977 | - | - | 1473 | 610 | 1600 | - | - | 4183 |
500 | 20 | 1016 | 1016 | - | - | 1574 | 720 | 2100 | - | - | 5226 |
600 | 24 | 1346 | 1346 | - | - | 1803 | 720 | 3150 | - | - | 7657 |
We are one professional Globe Valve, Globe Valves Manufacturer and Export in China.We can produce Gate valve,Globe Valves according to your requirements. If you are interested in any of Gate valves or steel Globe Valve or have a customized requirement to fill, please contact us right now !
Wenzhou Bewell Steel Industry Co., Ltd. is a professional producer of valve, stainless steel pipe, pipe fitting, flange etc, which is situated in Bajia Industrial Zone, Shacheng, Binhai Section
It is close to Wenzhou 10000t Dock, Ningbo-Taizhou-Wenzhou Express and Wenzhou Airport, thus enjoying a superior geographic location which is easily accessible by water and land and endowed with development advantages.
As a hi-tech enterprise integrationg R&D, production and sale, we produce such valve series ans API, ball valve, gate valve, stop valve, check valve, low-temperature valve, Y-type filter and non-standard products.
Through more than a decade of production and development, weve been carrying forward the diligent, practical and innovative spirit of Wenzhou people and adhering to the operational concept of "credit oriented and quality first" so that our integrated capacitoes in technology and development have been strengthened constantly.
Our product diameter: 1/2-48", Pressure: 150Lb-2500Lb, Material: WCB, WC6, WC9, A105, CF8, CF3, CF8M, CF3M, Applicable Medium: Acid, alkali, steam, sea water, coal gas, oil products, etc.
Shitong valves are widely applied in such industries as electricity, hydraulic power, heat supply, chemical engineering, coal, metallurgy, chemical fertilizer, brewage, paper making and medicine, which have won a good reputation among customers. With the increasingly intense market competition, our factory will apply new technologies, processes and materials constantly and develop new products vigorously to continue to provide high-quality valves and better before-sale and after-sale service for customers. We expect you to join us and sincerely welcome both old and new customers to cooperate with us to make glories together in the new century.
Our main products are four kinds: Valve, flange, pipe and fitting.
Our valves are Gate Valve, Ball Valve, Globe Valve, Check Valve, plug valves etc. They can be casted or forged. The connect end can be RF/RTJ/ NPT/ SW/BW etc.
Our flange are Weld Neck, Slip On, Thread, Socket, Blind etc.
Our fittings are Elbow, reducer, tee, cap etc.
Our pipes are stainless steel welded or seamless type.
The pressure is from 150LB to 2500Lb, PN10-640.
The O. D size is Dn15-1200, 1/2" ~ 48".
The material is carbon steel, stainless steel, duplex steel, Ni-Alloy stc.
The standards are: ANSI / API / JIS / DIN / BS / GOST etc.
