API 602 Copper or Bronze Forge Gate Valve
| Price: |
US $ 5-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ZF |
| Operation: |
Gear or Handwheel |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
| Connection Form: |
Butt Welded |
Product Description
API 602 Forge Gate Valve 150LB~ 800LB,Copper,Bronze,Brass
Bolt Bonnet or Weld Bonnet, BW,SW, NPT
OS&Y or ISRSForged Steel Gate Valve
Size: 1/4"-4"
Pressure: 150LB-4500LB
Design and manufacture conform to API 602, BS5352 & ASME 16.34
Test and check conform to API 598, API 6D
Remarks conform to MSS-SP-25

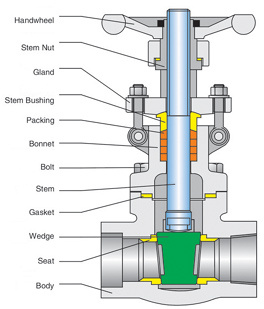

Adopt the following structure
Full bore or reduced bore
Outside screw and yoke
Self-centering gland
Bolted bonnet ,spiral would eight-square gasket
sealing bonnet or pressure seal bonnet
Integral type top seat
According to the follwing standard
Flange ends confrm to ASME B16.5
Butt-welding ends conform to ASME B 16.25
Socket-welding ends conform to ASME B 16.11
Screwed ends conform to ASME B1.20.1
Face to face dimension conform to ASME B 16.10
Operation type:hand wheel, electrical, pneumatic and hydraulic etc |
| |
Norminal Pressure | Class |
150 | 300 | 600 | 800 | 900 | 1500 | 2500 |
(MPa)
Test Pressure | Shell Test | 2.93 | 7.55 | 10.0 | 20.1 | 15.0 | 37.5 | 63.0 |
High Pressure Seal Test | 2.07 | 5.52 | 7.31 | 14.7 | 11.03 | 27.5 | 16.2 |
Low pressure Seal Test | 0.6 |
Applicable Temperature | =425? |
Applicable Medium | Water,oil & gas |

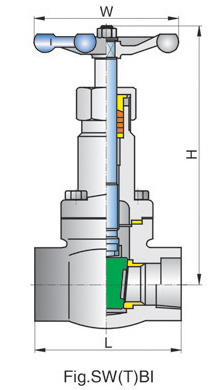

Pressure | Structure | Size | Main Dimension | Weight(kg) |
mm | in | d | L | H | W |
? | ? | ? | ? | ? | ? | ? | ? |
Class 150~600
Class800 | OS&Y | 8 | - | 1/4 | - | 7 | - | 79 | 166 | 100 | 2.2 | - |
10 | 8 | 3/8 | 1/4 | 10 | 7 | 79 | 166 | 100 | 2.2 | 2.2 |
15 | 10 | 1/2 | 3/8 | 10 | 10 | 79 | 166 | 100 | 2.2 | 2.2 |
20 | 15 | 3/4 | 1/2 | 13 | 13 | 92 | 169 | 100 | 2.2 | 2.2 |
25 | 20 | 1 | 3/4 | 18 | 18 | 111 | 193 | 125 | 4.7 | 4.3 |
32 | 25 | 11/4 | 1 | 24 | 24 | 120 | 236 | 160 | 5.9 | 5.9 |
40 | 32 | 11/2 | 11/4 | 29 | 29 | 120 | 146 | 160 | 6.9 | 6.9 |
50 | 40 | 2 | 11/2 | 36.5 | 36.5 | 140 | 283 | 189 | 11.1 | 11.1 |
- | 50 | - | 2 | - | 46.5 | 178 | 330 | 200 | - | 15.2 |
Class 150~600
Class800 | ISRS | 8 | - | 1/4 | - | 7 | - | 79 | 169 | 100 | 2.2 | - |
10 | 8 | 3/8 | 1/4 | 10 | 7 | 79 | 169 | 100 | 2.2 | 2.4 |
15 | 10 | 1/2 | 3/8 | 10 | 10 | 79 | 169 | 100 | 2.2 | 2.4 |
20 | 15 | 3/4 | 1/2 | 13 | 13 | 92 | 182 | 100 | 2.2 | 2.3 |
25 | 20 | 1 | 3/4 | 18 | 18 | 111 | 208 | 125 | 4.6 | 4.8 |
32 | 25 | 11/4 | 1 | 24 | 24 | 120 | 254 | 160 | 5.9 | 6.1 |
40 | 32 | 11/2 | 11/4 | 29 | 29 | 120 | 290 | 160 | 6.9 | 7.2 |
50 | 40 | 2 | 11/2 | 36.5 | 36.5 | 140 | 330 | 180 | 11.1 | 11.2 |
- | 50 | - | 2 | - | 46.5 | 178 | 372 | 200 | - | 14.1 |
Our Valve Products
Gate valve,Globe valve,Check valve,Ball valve,Butterfly valves,Plug valve,Power station valve,Type Strainer,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve,Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Parallel Slab Gate Valve Class 600,Stainless and Forged Steel Gate Valve,Wedge Type Flange Gate Valve,Gate Valve Class 300 NPS 26
We are one professional Gate Valves manufacturer in china.Our Gate valves products include Gate valve,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve, Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Stainless and Forged Steel Gate Valve,Parallel Slab Gate Valve Class 600, Wedge Type Flange Gate Valve. If you are interested in any of Gate valves products or have a customized requirement to fill, please contact us right now !
Wenzhou Bewell Steel Industry Co., Ltd. is a professional producer of valve, stainless steel pipe, pipe fitting, flange etc, which is situated in Bajia Industrial Zone, Shacheng, Binhai Section
It is close to Wenzhou 10000t Dock, Ningbo-Taizhou-Wenzhou Express and Wenzhou Airport, thus enjoying a superior geographic location which is easily accessible by water and land and endowed with development advantages.
As a hi-tech enterprise integrationg R&D, production and sale, we produce such valve series ans API, ball valve, gate valve, stop valve, check valve, low-temperature valve, Y-type filter and non-standard products.
Through more than a decade of production and development, weve been carrying forward the diligent, practical and innovative spirit of Wenzhou people and adhering to the operational concept of "credit oriented and quality first" so that our integrated capacitoes in technology and development have been strengthened constantly.
Our product diameter: 1/2-48", Pressure: 150Lb-2500Lb, Material: WCB, WC6, WC9, A105, CF8, CF3, CF8M, CF3M, Applicable Medium: Acid, alkali, steam, sea water, coal gas, oil products, etc.
Shitong valves are widely applied in such industries as electricity, hydraulic power, heat supply, chemical engineering, coal, metallurgy, chemical fertilizer, brewage, paper making and medicine, which have won a good reputation among customers. With the increasingly intense market competition, our factory will apply new technologies, processes and materials constantly and develop new products vigorously to continue to provide high-quality valves and better before-sale and after-sale service for customers. We expect you to join us and sincerely welcome both old and new customers to cooperate with us to make glories together in the new century.
Our main products are four kinds: Valve, flange, pipe and fitting.
Our valves are Gate Valve, Ball Valve, Globe Valve, Check Valve, plug valves etc. They can be casted or forged. The connect end can be RF/RTJ/ NPT/ SW/BW etc.
Our flange are Weld Neck, Slip On, Thread, Socket, Blind etc.
Our fittings are Elbow, reducer, tee, cap etc.
Our pipes are stainless steel welded or seamless type.
The pressure is from 150LB to 2500Lb, PN10-640.
The O. D size is Dn15-1200, 1/2" ~ 48".
The material is carbon steel, stainless steel, duplex steel, Ni-Alloy stc.
The standards are: ANSI / API / JIS / DIN / BS / GOST etc.
We warmly welcome the friends all over the world to visit our factory.
