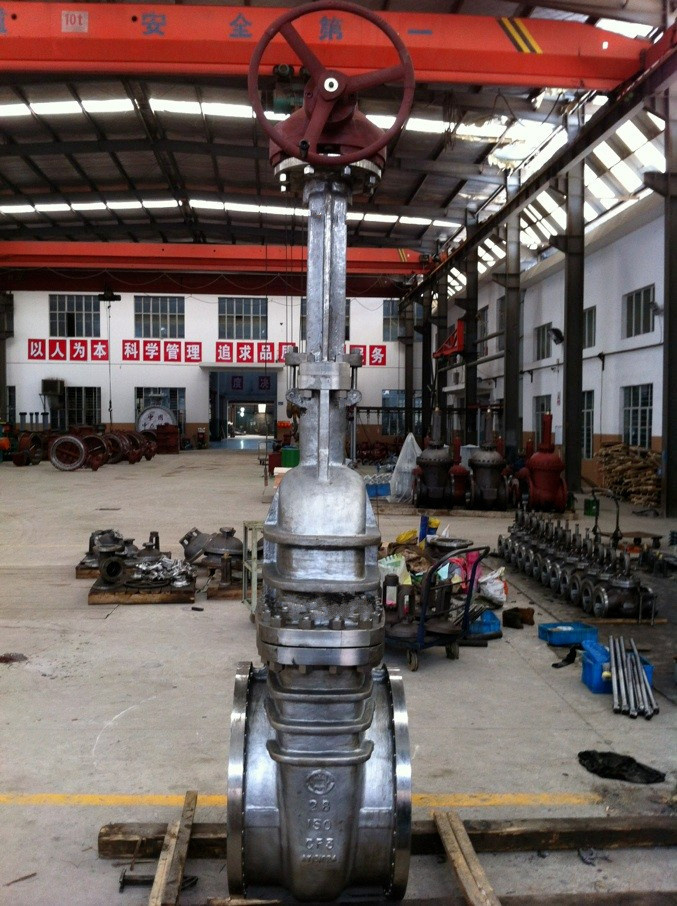

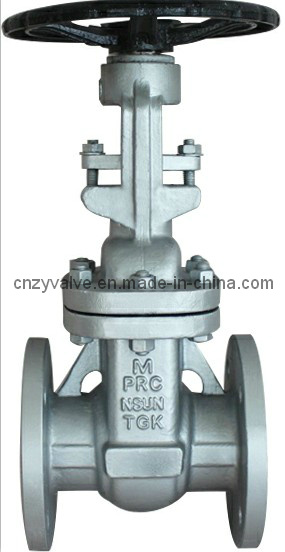

JIS 10k/20k Wcb Flanged Gate Valve (Z41H-20K)
Price: |
US $ 115/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
Z41H-20K-NPS3'' |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2''-32'' |
Certification: |
CE,API,Ts,CQC,SGS, |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Water Industrial Usage |
Product Description
FLANGED/BUTT-WELDED API/JIS GATE VALVE
Detailed Selling Lead
Features:
1) Designed and manufactured as per API 602
2) Butt-welding end dimensions as per ANSI B16. 25
3) Socket-welding-end dimensions as per ANSI B16. 11
4) Screw end dimensions as per GB/T12716-91
5) Inspection and test as per API 598
6) Structure: B. B, OS/Y
7) Body materials: A105, F11, F22, 304, 316, 304L, 316L, alloy 20 and Monel
Valve Performance:
Suitable for transmit gas,liquid medium in petroleum industry,chemical industry,metallurgy industry,electric power,sea transportation,etc.

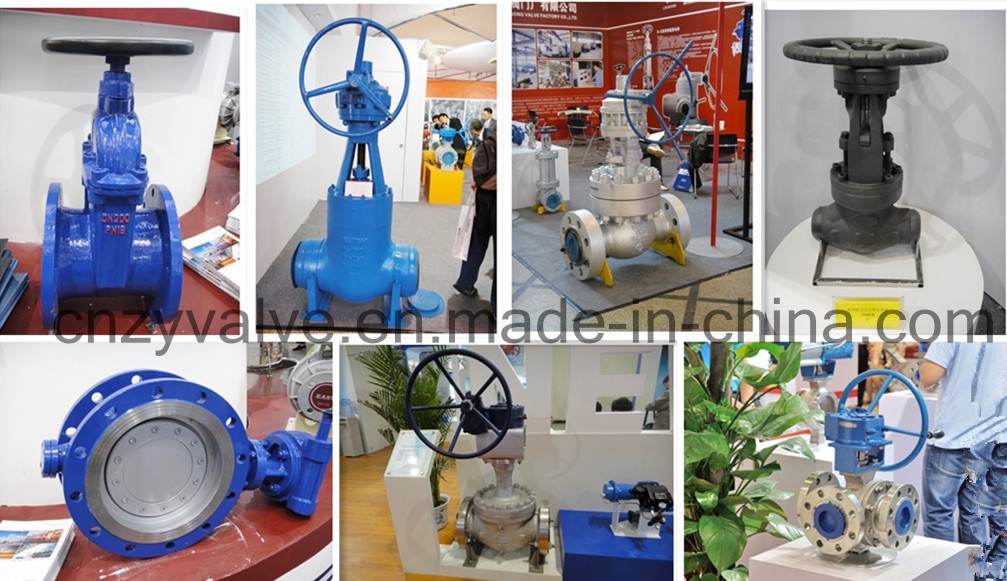

2013 NANJING EXHIBITIONOUR WORKSHOP2
NO. | Parts | Qty. | Material | NO. | Parts | Qty. | Material |
1 | Body | 1 | WCB | 13 | Gland | 1 | 1035 |
2 | Seat | 2 | A105 HF | 14 | Gear | 1 | 60-40-189 |
3 | Disc | 1 | WCB F6 | 15 | lock net | 1 | A29 1035 |
4 | Stem | 1 | A182 F6 | 16 | oil cup | 1 | A570 Gr.A |
5 | Packing | 1 | 08F Stainless steel flexible graphite | 17 | Bolt | 2 | A193 B7 |
6 | Cap | 1 | WCB | 18 | screw nut | 2 | A194 2H |
7 | Seat | 1 | A276 410 | 19 | Hinge pin | 2 | A29 1035 |
8 | Packing | 1 | Stainless steel flexible graphite | 20 | cotter pin | 2 | A570 Gr.A |
9 | Packing | 4-5 | 21 | stud bolt | | A193 B7 |
11 | Cover | 1 | A276 410 | 22 | Screw nut | | A194 2H |
12 | clamp | 1 | WCB | 23 | rivet | 2 | 304 |
13 | Nut | 1 | D 2 | 24 | nameplate | 1 | 304 |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in No. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
