| Prod Model: |
Z41H-900LB-NPS10'' |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
| Material: |
Wc6 |
| Actuator: |
Worm Gear |
Product Description

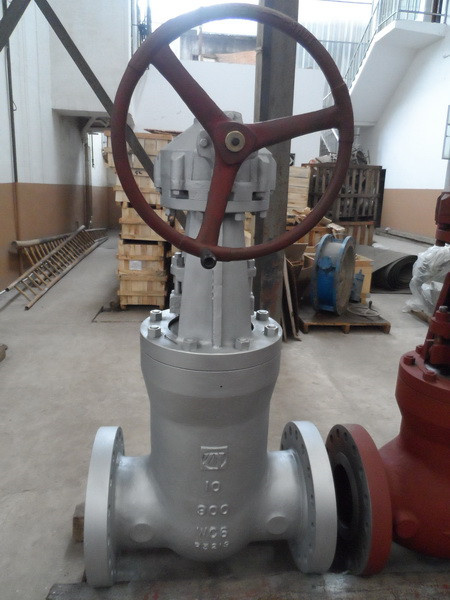

High-performance 900LB 10'' API WC6 Bevel Gear Gate Valve:Product Description
1)Size:NPS1/2"~36"
2)Pressure:Class150~1500
3)Material:
a)NPS1/2"~2":A105,F11,LF2,F22,F304,F316,F304L,F316L
Product Feature
wedge disc gate valve
flange gate valve
Product Specification / Models
)Size:NPS1/2"~36"
2)Pressure:Class150~1500
3)Material:
a)NPS1/2"~2":A105,F11,LF2,F22,F304,F316,F304L,F316L
b)NPS2"~36":WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF8M,CF3M
4)Design & Manufacture standard:API6D,API600,BS1414,ASME B16.34,GB
5)Face to Face:API6D,API600,BS1414,ASME B16.10,DIN 3202, and BS 2080
Name | Material |
Body Bonnet Wedge | A216 WCB | A352 LCB | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
Stem | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Stem Nut | ZCuA110Fe3 Bronze |
Handwheel | QT400-15 ductile iron cast iron |
Bonnet Bolt | 35CrMoA 1Cr17Ni2 25Cr2MoVA 304 316 4Cr14Ni14W2Mo B7 B8 B8M |
Nut | 45 35CrMo 304 316 2H 8 8M |
Disc sealing | 13Cr and 18Cr-18Ni or HF(Co-Cr-W) |
6)End Connection:ASME B16.11,ASME B16.5, ASME B16.47,MSS SP-44(2006),BS12627,ASME1.20.1,DIN 2543-2551
7)Test Standard:API598,ISO5208,API600,BS6755,
8)Structurer Standard:O.S&Y,BB,BG,Wedge disc,Flat disc,Inside screw nonrising stem type and so on.
9)Operate way:Hand wheel, gear,pneumatic and electric.
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in No. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
