| Price: | US $ 10/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,D/P |
| Prod Model: | Q41F-300LB-5" |
|---|---|
| Packaging Details: | Plywood or as The Customers' Requirement. |
| OEM: | Yes |
| Painting: | According to Customer's Requirement |
| Material: | Stainless Steel |
| Connection Form: | Flange |
| Channel: | Straight Through Type |
| Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve |
| Application: | Household Usage |

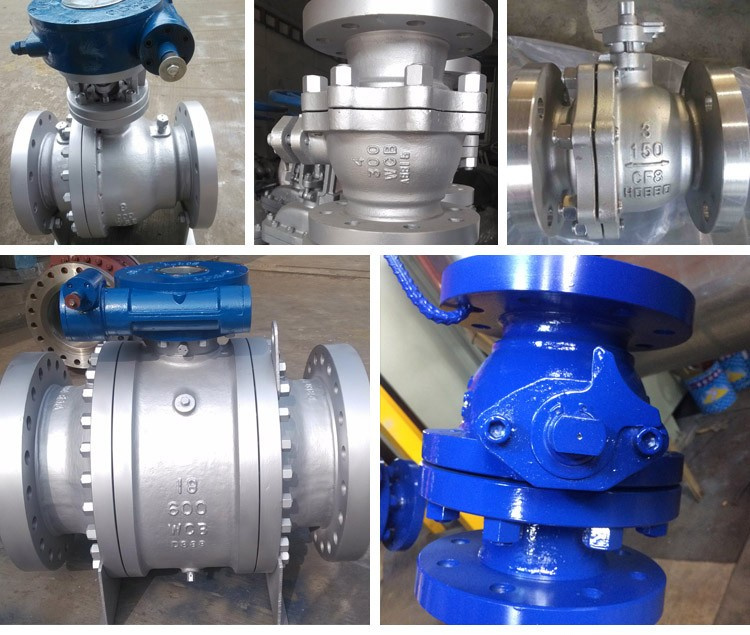

API Trunnion Ball Valve with Flange Stainless Steel
Size:1/2"-24"
Model:Q41F/Q341F
Pressure:150Lb-1500Lb
Applicable Medium: steam, water, oil,etc
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Ball Material: Carbon steel A105, A105+ENP, Stainless steel SS201,SS304,SS316, SS316L
Operation: Lockable Handle Lever, worm, electric, pneumatic
Full port ( FP) or Regular Bore (RB), Two piece Split body or Three piece bolted body, Floating ball type or Trunnion Mounted type, Blow-out Proof Stem, Anti-staic, optional Locking Device or stem Extension, optional Direct Mounting to ISO 5211
Standard:
Design and Manufacture: API 6D, ASME B16.34
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA
Products:
Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ:
1. Yes, sample order is available for quality check and market test. But it is not free.
2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.
3. We usually accept T/T, L/C, Western Union, Cash.
4. We offer 12months warranty time.
5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.
6. Yes, different models can be mixed up in one container.
7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.
8. Yes, we have the right to export and can sell product all over the world.
9. Our company has been audited and approved API 6D, CE 0036, ISO9001.
Test report will be provided when all goods finished. Also we are the alibaba's gold supplier since 2010. Now we clients all around the world.
