| Price: | US $ 150-3630/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | Q47F/Q347F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging Details: | Plywood or as The Customers' Requirement. |
| Delivery Detail: | Depend on The Quantity |
| Painting: | Slivery or as The Customer's Requirements |
| Certificates: | API ISO CE Ts |
| OEM: | Available |
| Connection Form: | Flange |
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Flexible Ball Valve |
| Application: | Household Usage |
| Material: | Carbon Steel /Stainless Steel |

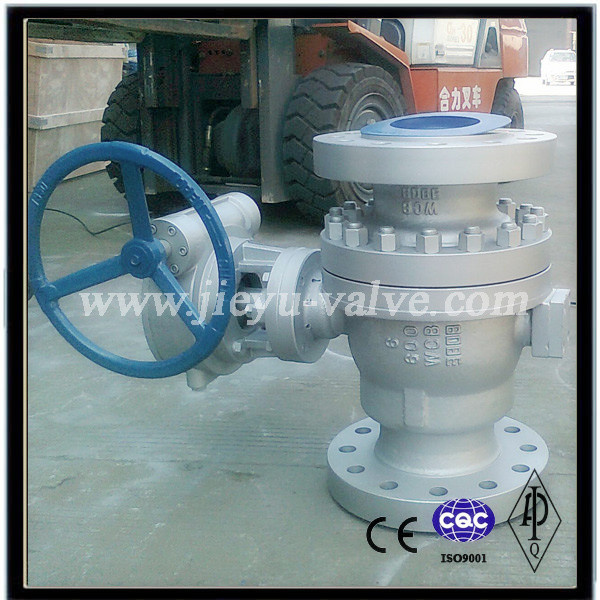

Carbon steel 600lb Trunnion Mounted Flange Ball Valve
Specification:
Size:1/2"-12"
Model:Q41F
Pressure:150Lb-600Lb
Applicable Medium: steam, water, oil,etc
Material: WCB(GS-C25) WC6, WC9, LCB, CF8M, CF3M,ETC.
Operation:Lever,worm,electric,pneumatic
Standard:
Design and Manufacture: API 6D, ASME B16.34 ,DIN3352
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA
| Nominal Pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa | 6.4Mpa | 10.0Mpa | Test Medium |
| Shell Test | 2.4Mpa | 3.75Mpa | 6.0Mpa | 9.6Mpa | 15.0Mpa | Water |
| Seal Test | 1.8Mpa | 2.75Mpa | 4.4Mpa | 7.1Mpa | 11.0Mpa | |
| Air Seal Test | 80lb(0.6Mpa) | 80lb(0.6Mpa) | 80lb(0.6Mpa) | 80lb(0.6Mpa) | 80lb(0.6Mpa) | Air |

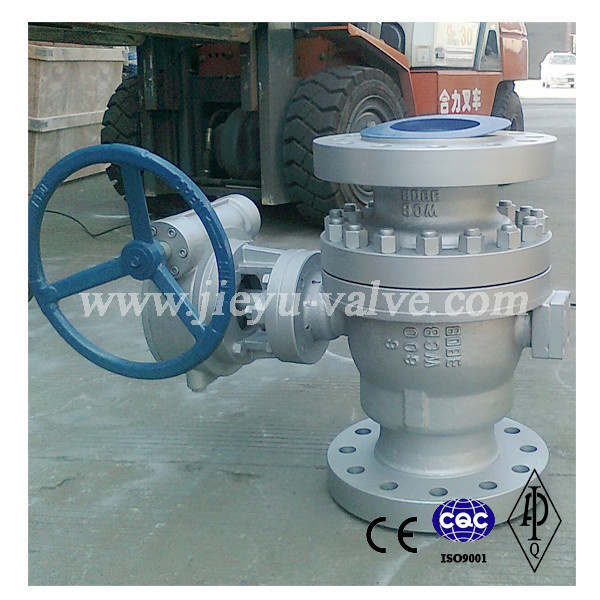

Products:

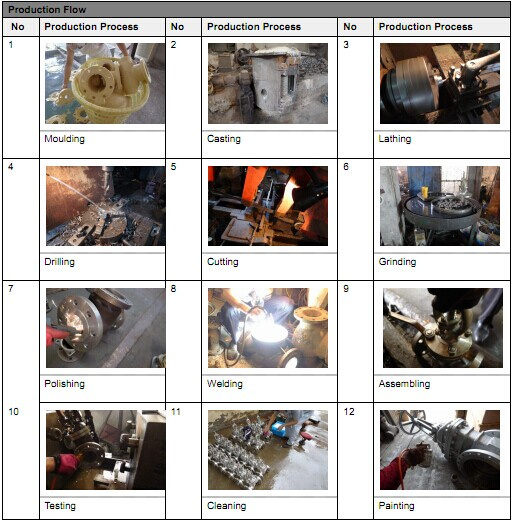

Production Flow:
Packaging:
