| Prod Model: |
Neoden 4 with rails |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pick Nozzle Qty: |
4 |
| Max Tape Reel Feeder Qty: |
48 |
| Vibrating Feeder Qty: |
5 |
| Tray IC Capacity: |
45 |
| Component Size With Vision: |
0201~Tqfp 240 |
| Placement Speed: |
5000cph/H with Vision |
| Components' Height: |
5mm |
| Positioning Accuracy: |
+/-0.02mm |
| PCB Area: |
310X1500mm with Internal Rails |
| Placement Area: |
140X1500mm with 1 Waffle Tray |
Product Description

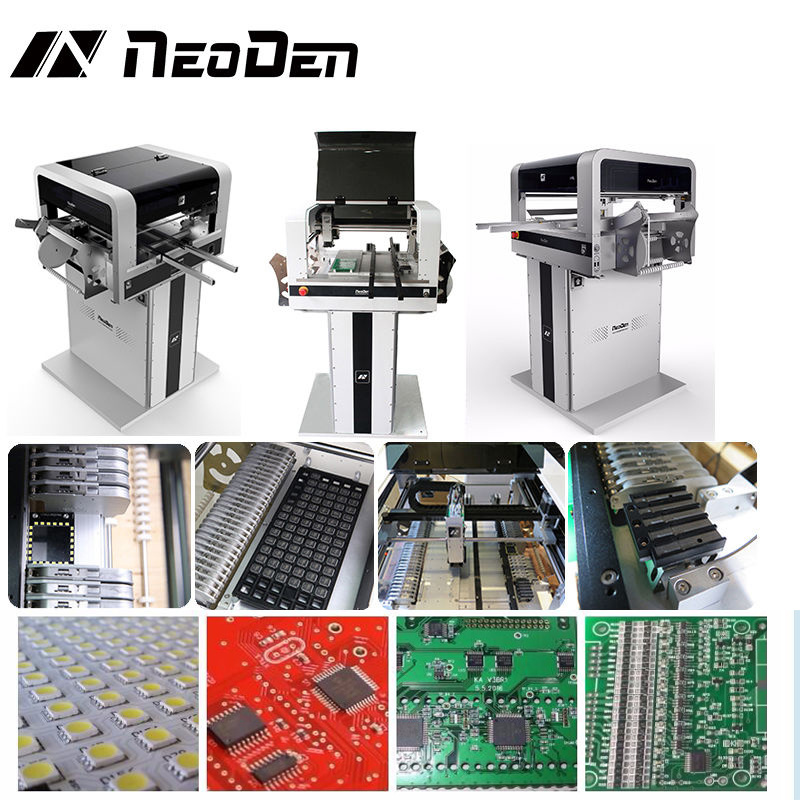

Vision system pick and place machine for BGA ( with rails)
Model No.: Neoden 4
Video show:https://www.youtube.com/c/NeoDenTechnology
Whole set: machine with rails+ 8mm feedersx5pcs+ 12mm feedersx 4pcs+ 16mm feedersx 1pc+ worktable +Dell computor moditor (This combination is just an ex.)
As showed on the top, this is just an example for a completed machine configuration, more choice for customers,
1. could choose machine without rails.
2. could choose feeder size : 8mm, 12mm, 16mm, could be different sizes and qty combination.
3. worktable and computor moditor could choose or not
Features:
1. with vision system high speed industry CCD camera brings high accuracy
2. online dual rails help automatic feeding board continously during mounting
3. speed with vision: 5000cph
4. support overlong LED strip 1.2m
5. leading mark point relocated technology in SMT line
6. 4 mounting heads, rotation 360 degree
7. support components 0201,BGA, SOT-23, QFN etc. which need high precision
8. on base windows
Specifications:
| Number of Heads with Vision enabled | 4 |
Placement Rate( under factory test
condition) | with vision: 5000cph |
| Feeder capacity | TAPE REEL FEEDERS:48 VIBRATING FEEDERS:5 |
| IC tray capacity/IC | 5 |
| Component sizes with vision | Smallest Component size:0201 |
| Largest Component size:TQFP240 |
| Component Height | 5mm |
| Resolution | X/Y axis:0.01mm ; Z axis:0.1mm |
| Rotation | 360 degree |
| Positioning Accuracy | +/-0.02MM |
| X-Y repeatability | +/-0.02MM |
| Applicable PCB area | With Internal rails:310x1500mm |
|
| Placement Area | Without waffle Tray: 310x1500mm |
| With 1 waffle Tray:140x1500mm |
| Power supply | 110v/220v |
| Power | 180w |
| External Dimensions | Machine :87*68*48CM
Packing size:94*74*60CM |
| Weight | Net Weight:60KGS
Gross weight:80KGS |
Accessories;
1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 6pcs
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)Rail Parts:4
12)User Manual:1
Warranty: 2 years since time purchase and lifelong service support, supply customers online Q/A, troubleshooting support.
Shipping: delivered in wooden case by DHL in 3-5 working days.
Welcome to contact us more.
Tonny-neoden
