| Prod Model: |
Neoden 4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pick Nozzle Qty: |
4 |
| Tape Reel Feeder Qty: |
48, on Condition All Are 8mm Feeders |
| Vibrating Feeder Qty: |
5 |
| Tray IC Capacity: |
5 |
| Component Size With Vision: |
0201~Tqfp144 |
| Placement Speed: |
5000cph/H with Vision |
| Components' Height: |
5mm |
| Positioning Accuracy: |
+/-0.02mm |
| PCB Area: |
310X1500mm with Internal Rails |
| Placement Area: |
310X1500mm Without Waffle Tray |
| Precision: |
High Precision |
| Certification: |
CE |
| Demoulding: |
Automatic |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
24 Months |
| Function: |
High Accuracy |
Product Description

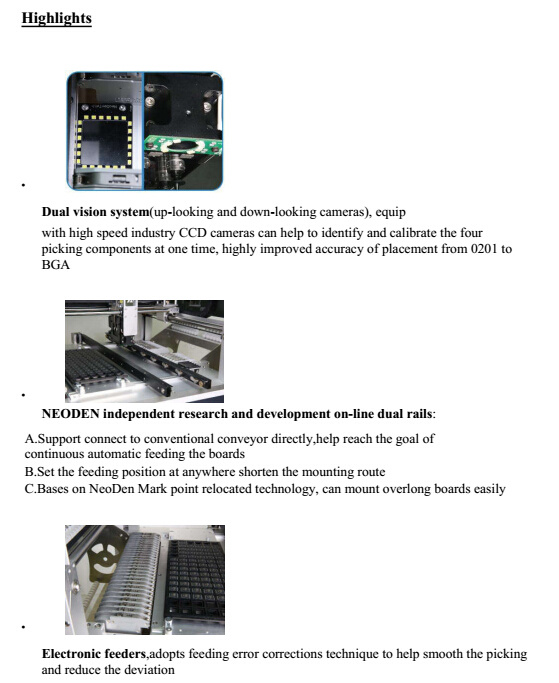

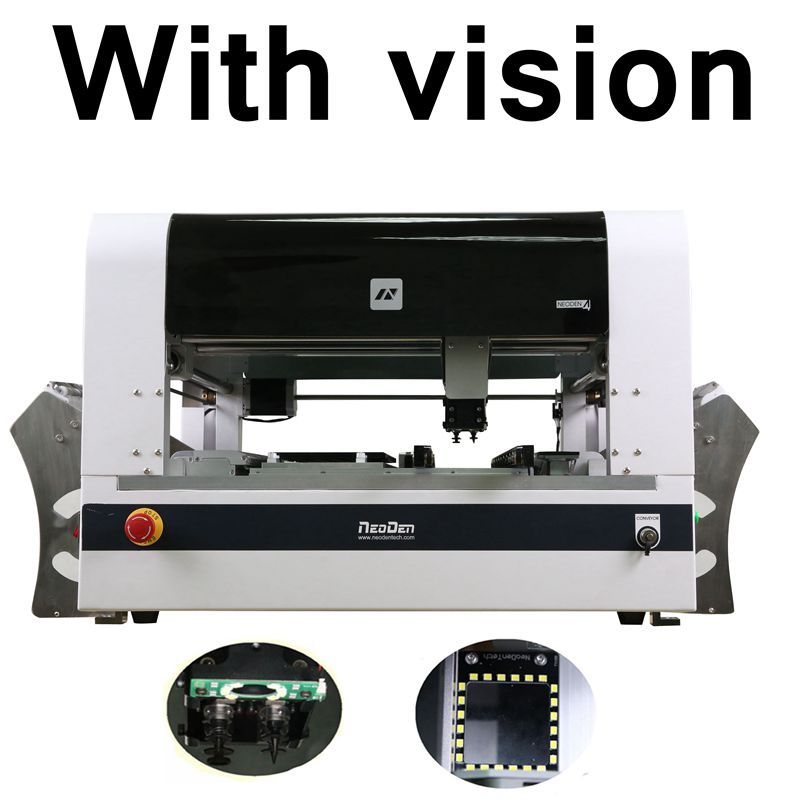

Vision system pick and place machine for BGA ( with rails)Video show:
http://v.youku.com/v_show/id_XMTMxMDEyODE4NA==.htmlExample : whole set= pick and place machine with rails + 8mm feedersx 5 sets+ 12mm feedersx 2sets+ 16mm feederx 1set+ computor moditor+ work table.
If customers want to complete machine configuration, more choice below,
1. could choose machine without rails.
2. could choose feeder size : 8mm, 12mm, 16mm, could be different sizes and qty combination.
3. worktable and computor moditor could choose or not
Specifications:
| Number of Heads with Vision enabled | 4 |
Placement Rate( under factory test
condition) | with vision: 5000cph |
| Feeder capacity | TAPE REEL FEEDERS:48 VIBRATING FEEDERS:5 |
| IC tray capacity/IC | 5 |

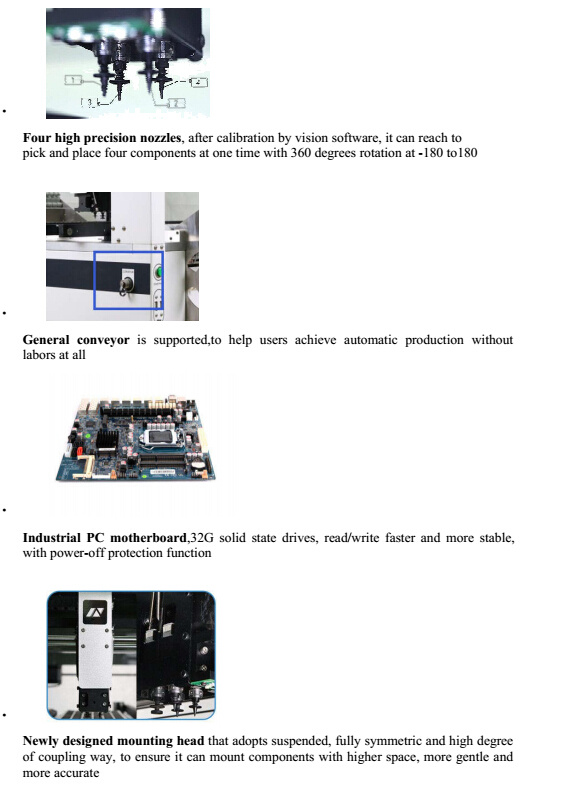

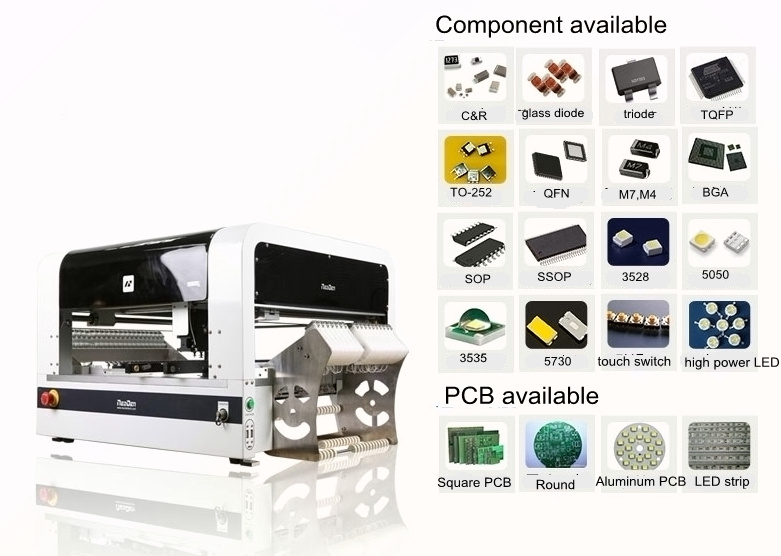

| Component sizes with vision | Smallest Component size:0201 |
| Largest Component size:TQFP240 |
| Component Height | 5mm |
| Resolution | X/Y axis:0.01mm ; Z axis:0.1mm |
| Rotation | 360 degree |
| Positioning Accuracy | +/-0.02MM |
| X-Y repeatability | +/-0.02MM |
| Applicable PCB area | With Internal rails:350x400mm |
|
| Placement Area | Without waffle Tray: 310x400mm |
| With 1 waffle Tray:140x400mm |
| Power supply | 110v/220v |
| Power | 180w |
| External Dimensions | Machine :87*68*48CM
Packing size:94*74*60CM |
| Weight | Net Weight:60KGS
Gross weight:80KGS |

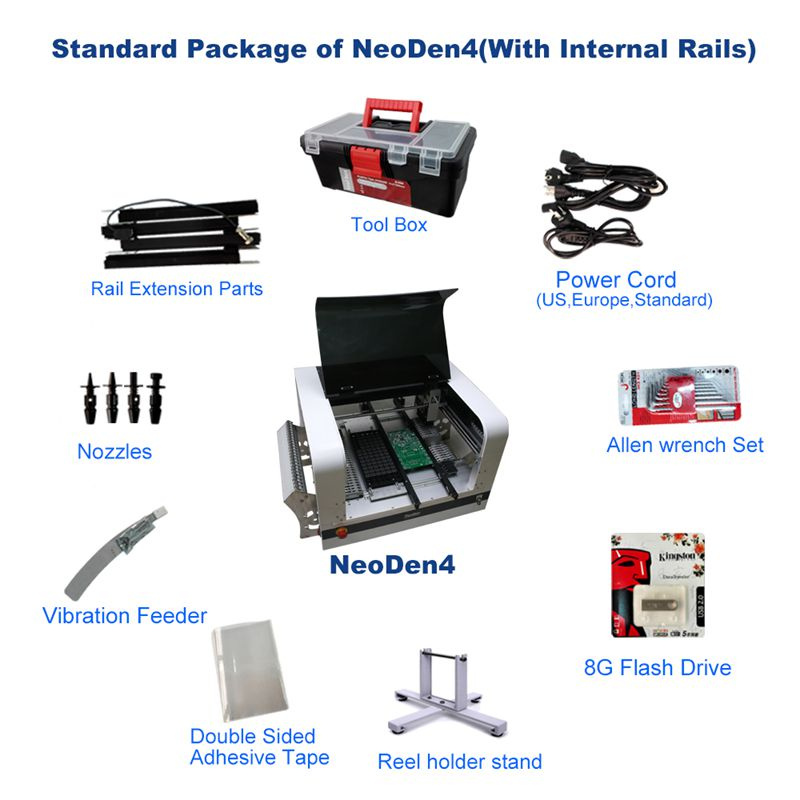

Accessories:
1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 10 (
XN07=3,XN14=3,XN40=2,XN22=2)
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)Rail Extension Parts:4
12)User Manual:1
If need nozzles to place
0201 or
diode components, please let us know specially. These two nozzles are not included in standard accessories.
Warranty: 2 years since time purchase and lifelong service support, supply customers online Q/A, troubleshooting support.

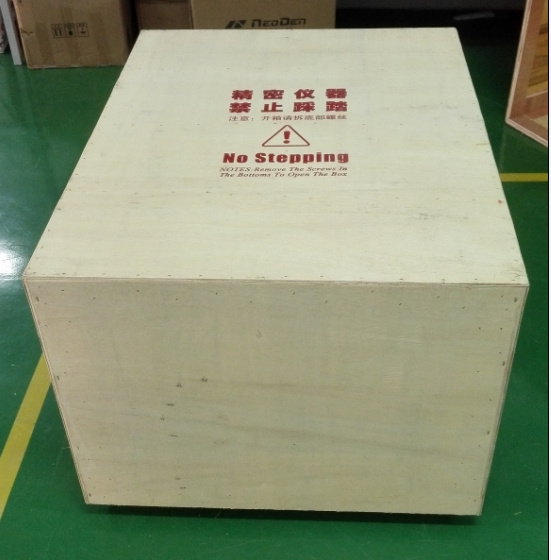

Shipping: delivered in wooden case and delivery out withhin 15 days after payment received

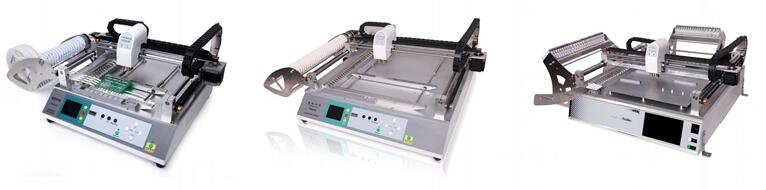

More without vision system models for reference:
| Series | Max mounting size | Max mounting speed | Max avilable height | Tape width | Feeder of tape qty | Feeders of IC support |
| TM220A | 220*200mm | 5000pcs/h | 3.5mm | 8/12/16mm | 15 | 1 |
| TM240A | 360*400mm | 7000pcs/h | 3.5mm | 8/12/16mm | 27 | 1 |
| TM245P-standard | 370*450mm | 10000pcs/h | 5mm | 8/12/16mm | 27 | 10 |
| TM245P-advanced | 370*390mm | 10000pcs/h | 5mm | 8/12/16/24mm | 46 | 10 |
Welcome to contact us more.
Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.
Our company is innovative in technology:
We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.
NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
