P&P Machine SMT Machine for Overlong LED Strip Mounting

P&P Machine SMT Machine for Overlong LED Strip Mounting
Price: US $ 7499-9697/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Paypal
Prod Model: Neoden 4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pick Nozzle Qty: 4
Tape Reel Feeder Qty: 48
Vibrating Feeder Qty: 5
Tray IC Capacity: 5
Component Size With Vision: 0201~Tqfp 240
Placement Speed: 5000cph/H with Vision
Components' Height: 5mm
Positioning Accuracy: +/-0.02mm
PCB Area: 310X1500mm with Internal Rails
Placement Area: 140X1500mm with 1 Waffle Tray

Product Description

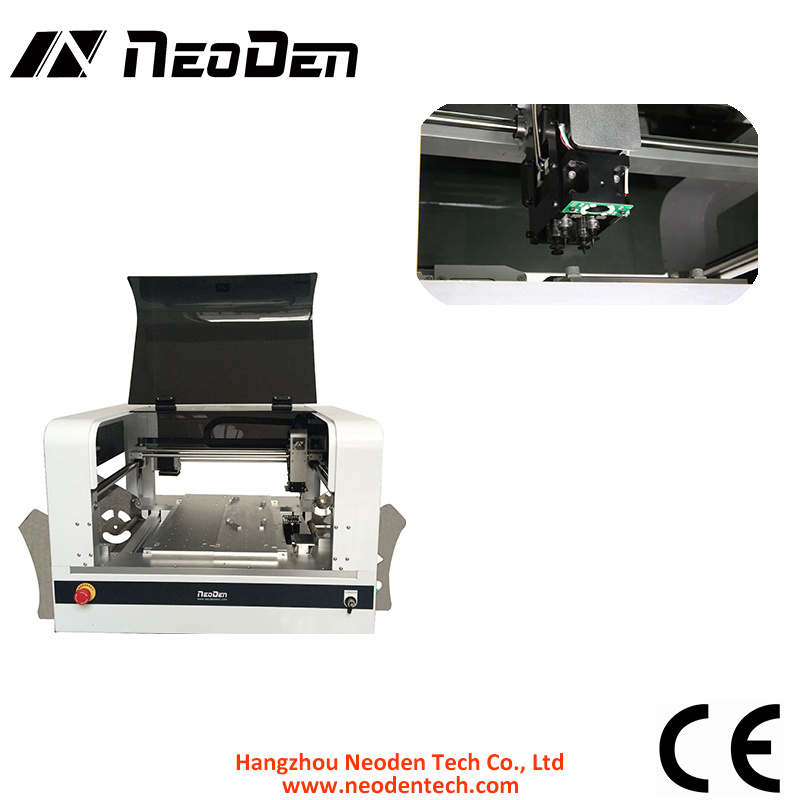

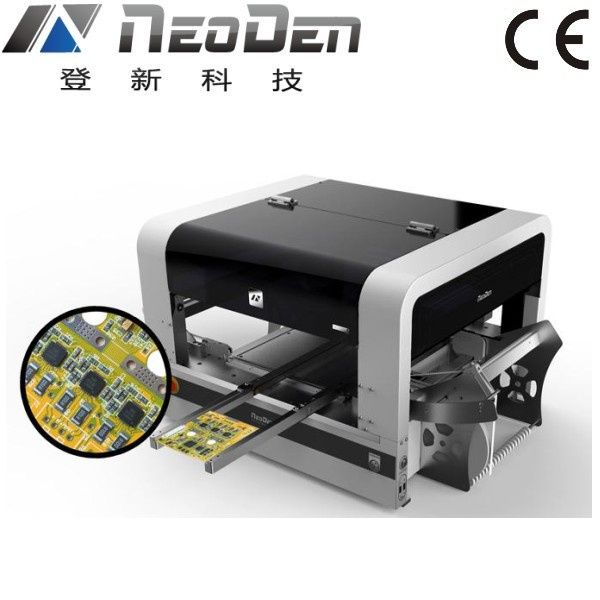

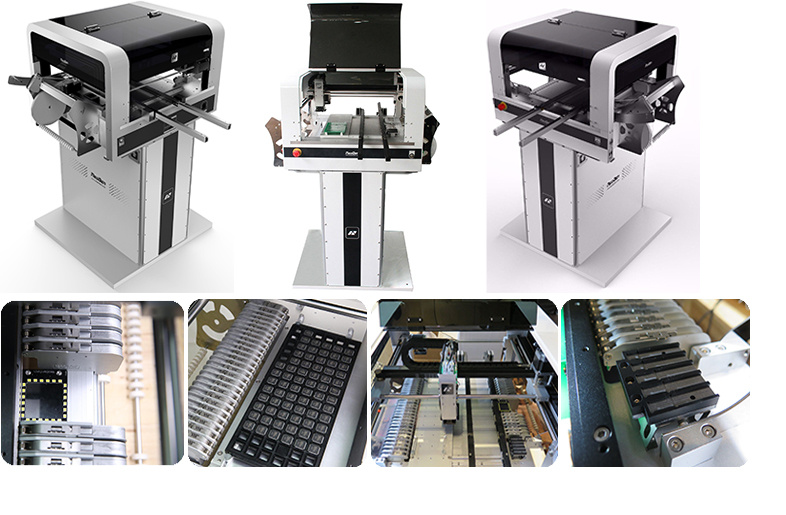

 Neoden 4 pick and place machine vision CCD camera system ( with rails)

Model No.: Neoden 4
Video show: http://v.youku.com/v_show/id_XMTMxMDEyODE4NA==.html

Whole set: machine with rails+ 8mm feedersx5pcs+ 12mm feedersx 4pcs+ 16mm feedersx 2pcs+ worktable +Dell computor monitor

As showed above, this is just an example for a completed machine configuration, more choice for customers,
1. could  choose machine without rails.
2. could choose feeder size : 8mm, 12mm, 16mm,  could be different sizes and qty combination.
3. worktable and computor moditor could choose or not

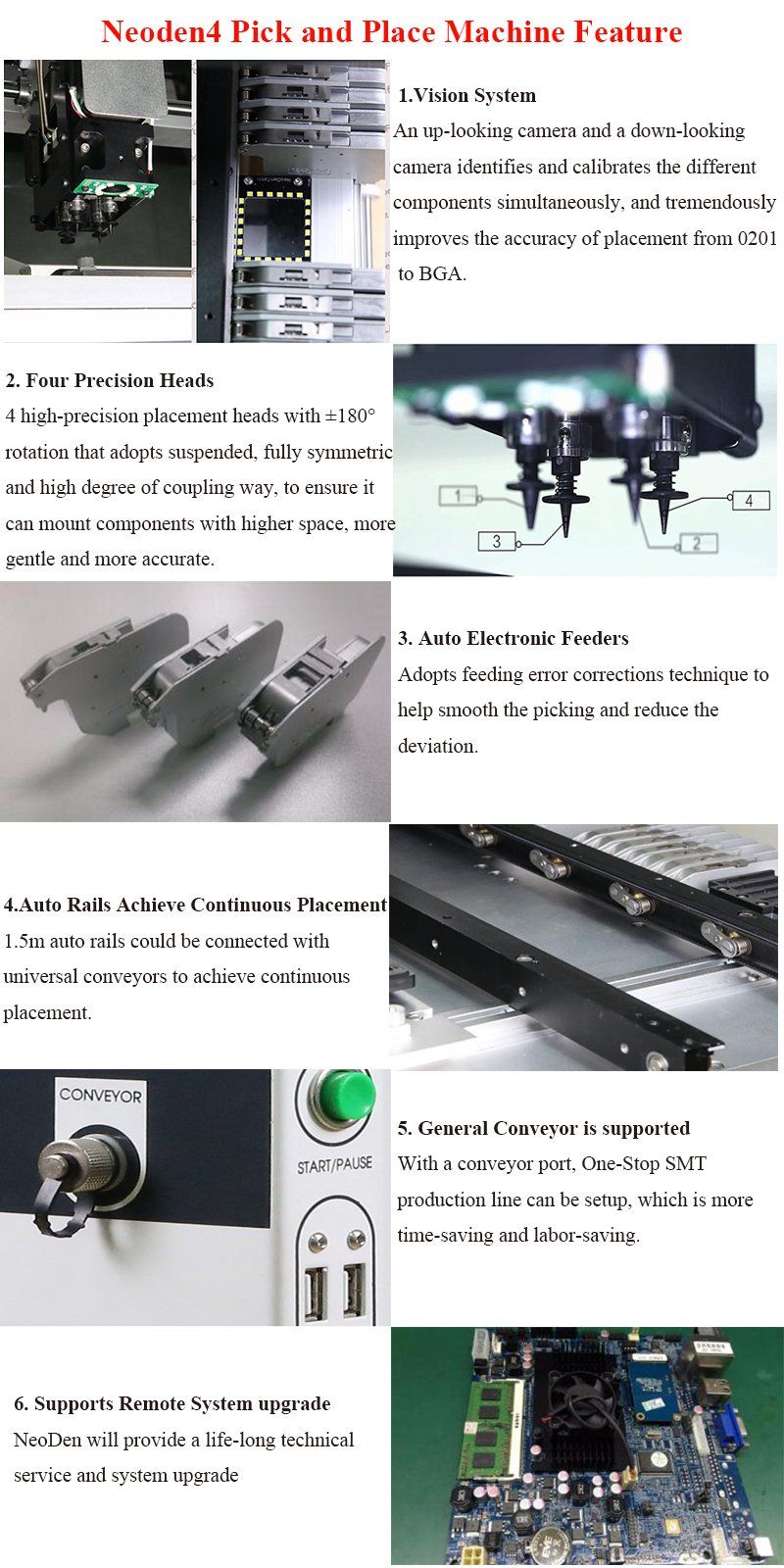

Features:
1. with vision system high speed industry CCD camera brings high accuracy
2. online dual rails help automatic feeding board continously during mounting
3. speed with vision: 5000cph
4. support overlong LED strip 1.2m
5. leading mark point relocated technology in SMT line
6. 4 mounting heads, rotation 360 degree
7. support components 0201,BGA, SOT-23, QFN etc. which need high precision
8. on base windows


Specifications:
Neoden 4without Internal Railswith Internal Rails
Head with Vision enabled QTY:4Mounting Speed:With vision: 5000/Without vision: 10000
Mounting AreaWithout waffle Tray:310*400MMWithout waffle Tray:310*1500MM
With 1 waffle Tray:140*400MMWith 1 waffle Tray:140*1500MM
Suitable ComponentsSmallest Component  size:0201 / Largest Component size:TQFP240
Automatic FeedingNoneYes
Feeder capacityTape Reel Feeders: 48(all 8 mm)
Vibrations Feeders: 5
IC tray capacity:5Component Max Height: 5MM
ResolutionX/Y axis:0.01MM     Z axis:0.1MM
Rotation:+/-180°(360°)Vacuum Pressure :0.9kp
Power Supply:110V/220VPower:180W
Vision CameraCCD High Accuracy
Vision Qty: Dual VisionRecognition Capability: Max 30*30mm
Packing size: 94*74*60CMExternal Dimensions Machine:87*68*48CM
  N.W:60KGS, G.W:80Kgs N.W:65KGS, G.W:85Kgs

Accessories:
1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 6
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)Rail Parts:4
12)User Manual:1


Warranty: 2 years since time purchase and lifelong service support,  supply
customers online Q/A, troubleshooting support.

Shipping: delivered in wooden case and deliver out in 15 days after payment received.


Welcome to contact us more.
