| Prod Model: |
TM245P-STA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Mounting Size (X*Y): |
370X450mm |
| Qty Of Placement Head: |
2 |
| Feeders: |
27 |
| Max Mounting Capability: |
10000cph |
| Ics: |
10PCS |
| External Dimension(Lxwxh): |
870X640X336mm |
| Max Applicable Height: |
5mm |
| Max Mounting Speed: |
2m/S |
| Tape Width: |
8/12/16mm |
| Vacuum Pump Qty: |
3PCS |
Product Description

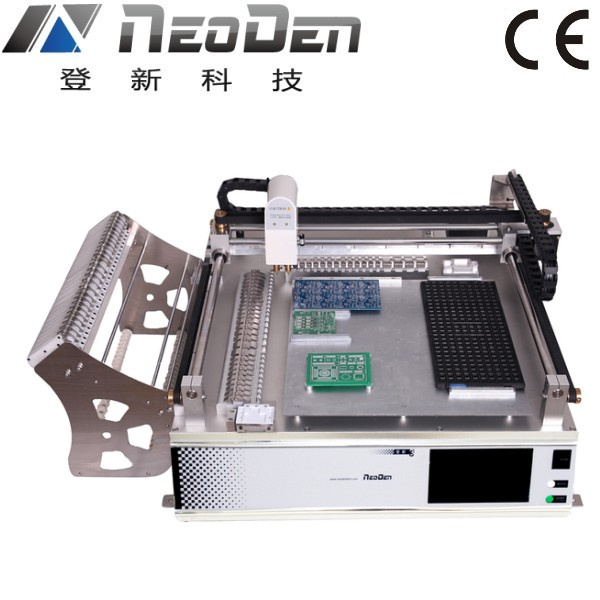

TM245P-STANDARD Pick and place machine
This is the third generation of desktop pick and place machine from NeoDen ,in the series, TM245P-ADVANCED also inclued. They are completely independent intellectual property which leading this technology in the market.
Feature:
1.with high speed, 10000CPH
2. light weight and small body, desktop type, easy operation interface
3. high accuracy,+/- 30um.
4. TM245P series adopted automatic discharging device with electronic magnetic pressure type gear
5. compared to TM220A and TM240A, this series could mount tube packed component through the vibration feeder
6. with new function of IC's mechanical correction
7. flexible PCB positioning function
8. 4types of high-precision nozzles for different component
Max mounting size | Max mounting capability | ICs |
| 370x450mm | 10000CPH | 10 |
| External Dimension(LxWxH) | Position accuracy | Max available height |
| 870*640*336mm | +/- 0.03mm | 5mm |
| Placement head qty | Max movment speed | Tape width |
| 2pcs | 2m/s | 8/12/16/24mm |
| Vacuum pump qty | Power supply | Vibration feeder |
| 3pcs | 220V/160W (convertible to 11ov) | no (selectable) |
| Vacuum pressure | Feeders | Weight |
| -92KPA | 27 | 42kg |
we could supply you one complete producing line :
Standard accessories for TM245P-standard
1.pick and place machine TM245P:1
2.Nozzle: totally 10 (XS:3,S:3,M:2,ML:2)
3.8G SD Card:1
4.Card reader:1
5.Nozzle disassemble tool:4
6.Power Cord:1
7.Nozzle cleaning tool:1
8.Open-end wrench:1
9.Video training course:1
10.Double sides adhesive tape:2
11.Wrench set:5
12.Tool box:1
13.External shelf:1
14.Positioning strip:4
15.Positioning column:8
16.Needle:4
17.Electromagnet:2
18.Electromagnetic valve: 4
19.Silicone Pad:8
20.Module's rear cover:1
21.Voice coil motor 8mm:4pcs/12mm:2pcs/16mm:1pc
Shipment : by DHL in 3-5 working days safe and sound,
Peak season: 3-5 working days after payment received.
Slack season: 1-3 working days after payment received.
The application range of PnP machine:
Household appliances industry
Auto electronics industry
Power industry
LED industry
Security
Instruments and meters industry
Communications industry
Intelligent control industry
IOT industry
Military industry
Warranty:
The complete machine has a warranty period of 2 year from the time of purchse and lifelong service support. We provide online Q/A and troubleshooting support and technical advice service.
We have strong powerful develop team to keep products always stepping in the lead of market and after-sales service solving any problem during customers using and maintenance.
More using video showing : www.youtube.com/user/NeoDentech , from where you could find how to operate and some use experience feedback from our customers.
Welcome to contact us more.
Best Regards,
Tonny-neoden
Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.
Our company is innovative in technology:
We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.
NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
