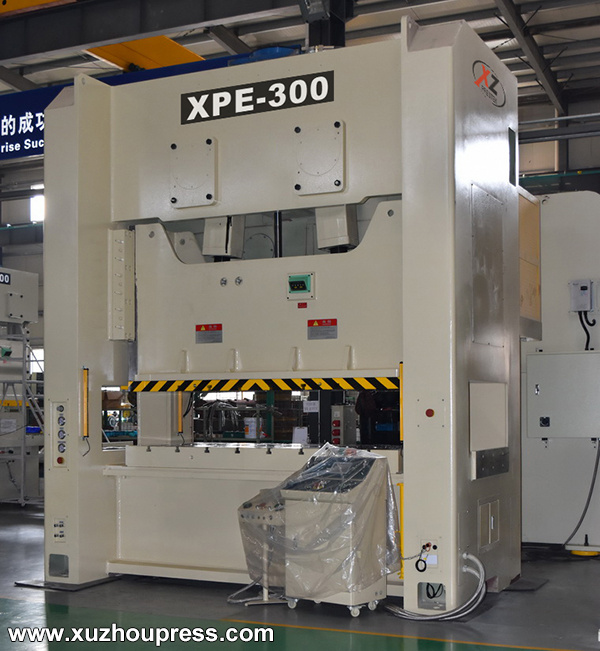

Auto Parts Automation Stamping Press Solutions, Punching Machine Tool
| Price: |
US $ 10000-100000SET |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XPE-400 |
| Precision Standard: |
GB(Japan 1 Class) |
| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description
Manufacturing Precision Standards : Japanese JIS 1 Class
1. Parameters
1) XPE 160ton ~600ton Parameters
| Name | Unit | XPE-160 | XPE-200 | XPE-250 | XPE-300 | XPE-400 | XPE-500 | XPE-600 |
| Model | | S | H | S | H | S | H | S | H | S | H | S | H | S | H |
| Capacity | Ton | 160 | 200 | 250 | 300 | 400 | 500 | 600 |
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 7 | 3 | 7 | 3 | 7 | 3 | 10 | 6 | 10 | 6 |
| Stroke | mm | 180 | 130 | 250 | 150 | 280 | 170 | 300 | 170 | 300 | 170 | 300 | 180 | 300 | 180 |
| Stroke per minute | s.p.m | 30-55 | 40-85 | 20-50 | 35-70 | 20-40 | 30-60 | 20-35 | 30-50 | 20-30 | 20-40 | 18-25 | 20-30 | 15-25 | 20-30 |
| Die height | mm | 450 | 400 | 500 | 450 | 550 | 450 | 550 | 450 | 550 | 450 | 580 | 480 | 600 | 500 |
| Slide adjustment | mm | 100 | 120 | 120 | 120 | 120 | 120 | 120 |
| Slide area | mm | 1600x650 | 1850 x750 | 2300x900 | 2300x900 | A:2300x1000 | 2900x1000 | 3100x1100 |
| B:2400x1000 |
| C:2800x1000 |
| Bolster area | mm | 1800 x760 | 2200x940 | 2500 x1000 | 2500x1000 | A:2500x1000 | 3300x1200 | 3500x1200 |
| B:2800x1000 |
| C:3200x1000 |
| Side opening | mm | 700 x450 | 900x600 | 900x600 | 900x600 | 900x600 | 1000x750 | 1100x750 |
| Main motor | KwxP | 15x4 | 18.5x4 | 22 x 4 | 30x4 | 37x4 | 45x4 | 55x4 |
| Slide adjust device | KwxP | 1x4 | 2x4 | 2x4 | 2x4 | 2x4 | 3x4 | 3x4 |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
2) 3 in 1 servo Straightener Feeder---MAC1:
| Model | MAC 1-300 | MAC1-400 |
| Stock Width(mm) | 50-300 | 50-400 |
| Stock Thickness(mm) | 0.2-3.0 | 0.2-3.0 |
| Max. Coil Weight(kg) | 3000 | 3000 |
| Max. Coil O.D.(mm) | 1200 | 1200 |
| Coil I.D.(mm) | 508 | 508 |
| Feed Length(mm) | ~400 | ~400 |
| Max. Line Speed(m/min) | 16-24 | 16-24 |
| Work Roll Number | upper4 / lower3 | upper4 / lower3 |
| Feed Roll number | 1 | 1 |
| Main Motor(kw) | AC2.0 | AC2.0 |
| Mandrel Expansion | By manual (pneumatic) / hydraulic | By manual (pneumatic) / hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 |
| Power (V) | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
| Operating Air (Mpa) | 0.49 | 0.49 |
3 in 1 servo Straightener Feeder---MAC2:
| Model | MAC2-400 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50~400 | 50~600 | 50~800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3~3.2 | 0.3~3.2 |
| Max. Coil Weight(kg) | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max. Coil O.D.(mm) | 1200 | 1200 | 1200 |
| Coil I.D.(mm) | 508 | 508 | 508 |
| Feed Length(mm) | ~500 | ~500 | ~500 |
| Max. Line Speed(m/min) | 16~24 | 16~24 | 16~24 |
| Work Roll Number | upper6 / lower5 | upper6 / lower5 | upper6 / lower5 |
| Feed Roll number | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power (V) | 3Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 |
3 in 1 servo Straightener Feeder---MAC3:
| Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 |
| Stock Width(mm) | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 |
| Stock Thickness(mm) | 50~400 | 50~600 | 70~800 | 70~1000 |
| Max. Coil Weight(kg) | 5000 | 5000 | 5000 | 7000 | 7000 |
| Max. Coil O.D.(mm) | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil I.D.(mm) | Ф508 | Ф508 | Ф508 | Ф508 |
| Feed Length(mm) | ~500 | ~500 | ~500 | ~500 |
| Max. Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
| Work Roll Number | up4 / down3 | up4 / down3 | up4 / down3 | up4 / down3 |
| Feed Roll number | 1 | 1 | 1 | |
| Main Motor(kw) | AC4.4 | AC4.4 | AC5.5 | AC7.5 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 |
| Power (V) | 3Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200, 000.00 square meters.
* Staff of about 400 people
Main Products:
*Mechanical Press
* Coil Feeder
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.
Technology advantages:
* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing:
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
