Xtd Straight Side Heavy Duty High Speed Power Press (400ton~1200ton)

Name: Xtd Straight Side Heavy Duty High Speed Power Press (400ton~1200ton)
Brand: tool-buy.com
SKU: 826657325
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	NegotiableSET
Min Order:	1SET
Pay Type:	L/C,T/T

Contact Supplier

Xuzhou Metalforming Precision Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	XTD (400ton~1200ton )
Precision Standard:	GB(Japan 1 Class)
Frequency Inverter:	Taiwan Delta / Japan Yaskawa
Hydraulic Over-Load Protector:	Japan Showa/ Taiwan King Air
Dry Clutch:	Italian Ompi
Main Motors:	Taiwan Teco
Double Solenoid Valve:	Japan's Taco
Oil Lubricator/Filter:	German Rexroth/Japan SMC
Bearings:	Japan NTN/NSK
PLC:	Japan Omron
Welded Steel Structure:	Elimination of Internal Stress Process, CNC Precis
Controlling Mode:	CNC
Power Source:	Mechanical Drive
Precision:	High Precision
Type:	High Precision Power Press
Punch Shape:	Straight Side Power Press
Automatic Grade:	PLC Control ,Human-Machine Interface

Product Description

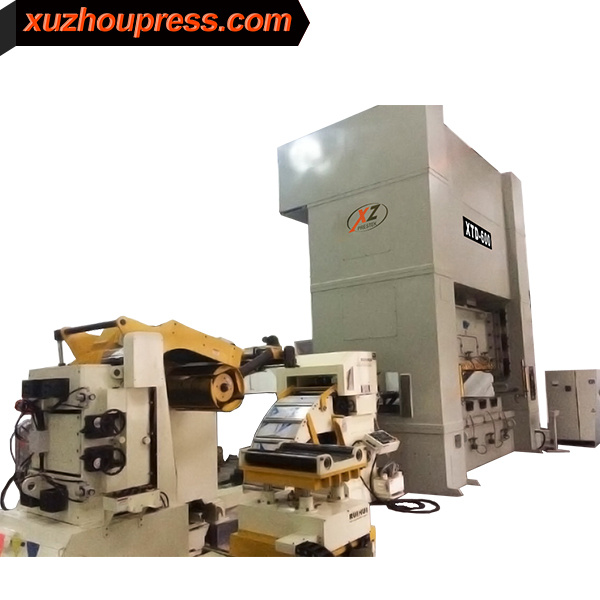

XTD Straight Side Heavy Duty High Speed Power Press (400ton~1200ton )

Manufacturing Standards : ISO/CE /Japanese JIS 1 Class

* Provide Customized Personalized Service

1. Parameters
1) 400ton -- 600ton Parameters

Name	Unit	XTD-400		XTD-500		XTD-600

Model		S	H	S	H	S	H
Capacity	Ton	400		500		600
Rated tonnage point	mm	13	7	13	7	13	9
Stroke	mm	400	300	400	300	400	300
Speed changing	s.p.m	15-25	35-40	15-25	25-40	15-25	20-30
Die height	mm	600	650	650	700	650	700
Slide adjustment	mm	150		200		200
Slide area	mm	2800x1300		3100x1400		3600x1400
Bolster area	mm	2800x1400		3100x1500		3600x1500
Side opening	mm	850x600		950x650		1000x700
Die cushion capacity	Ton	60		70		80

2) 800ton -- 1200ton Parameters

Name	Unit	XTD-800		XTD-1000		XTD-1200

Model		S	H	S	H	S	H
Capacity	Ton	800		1000		1200
Rated tonnage point	mm	13	9	13	9	13	9
Stroke	mm	400	300	400	300	400	300
Speed changing	s.p.m	15-25	20-30	15-25	20-30	15-25	20-30
Die height	mm	700	750	1000	1050	1000	1050
Slide adjustment	mm	250		250		250
Slide area	mm	3800x1600		4600x1800		5000x1800
Bolster area	mm	3800x1600		4600x1800		5000x1800
Side opening	mm	1100x800		1200x900		1200x900
Die cushion capacity	Ton	80		80		80

2. Technical Descriptions :

Features:
1)   Slider with Octahedral longer guide rails to guarantee operation precision.
2)   Hydraulic overload protection device stop the operation emergency when overload ,convenient for application;
3)   PLC electric interlocking control , with functions of Emergency stop, inch, single-stroke, and continuous operation;
4)   Dry pneumatic friction clutch is small in noise, large in clutching torque, small in braking angle, and convenient for maintenance;
5)   Body is closed structure, including beams, stand columns, and bases, pre-tighten by four tie bolts, with good rigidity .

Standard Configuration:
> Hydraulic overload protector
> Electric slider adjusting device
> Independent electrical control cabinet
> Movable Operating Platform
> Digital mould-height indicator
> Circulation centralization lubrication oil feeding device
> Power socket
> Over-run safety device
> Misfeed detection device
> Pre-determined counter (6 digits)
> Air-blast device 1/2" primary circuit
> Air source connector 1/2" secondary circuit
> Frequency converter

Optional Configuration:
> Die Cushion device
> Photo-electric safety device
> Knock out device on the slider
> Safety block and safety latch
> Anti-vibration device
> Die area lighting
> Quick die change device
> Movable working table
> Automatic feeding system

3. Company Introduction :

Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.

* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.

* Factory Area 200, 000.00 square meters.

* Staff of about 400 people

Main Products:

*Mechanical Press

* Coil Feeder

* Hydraulic Press

*Forging Hydraulic Press

* Special Purpose Customized Power Press.

Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.

Technology advantages:

* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.

* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China

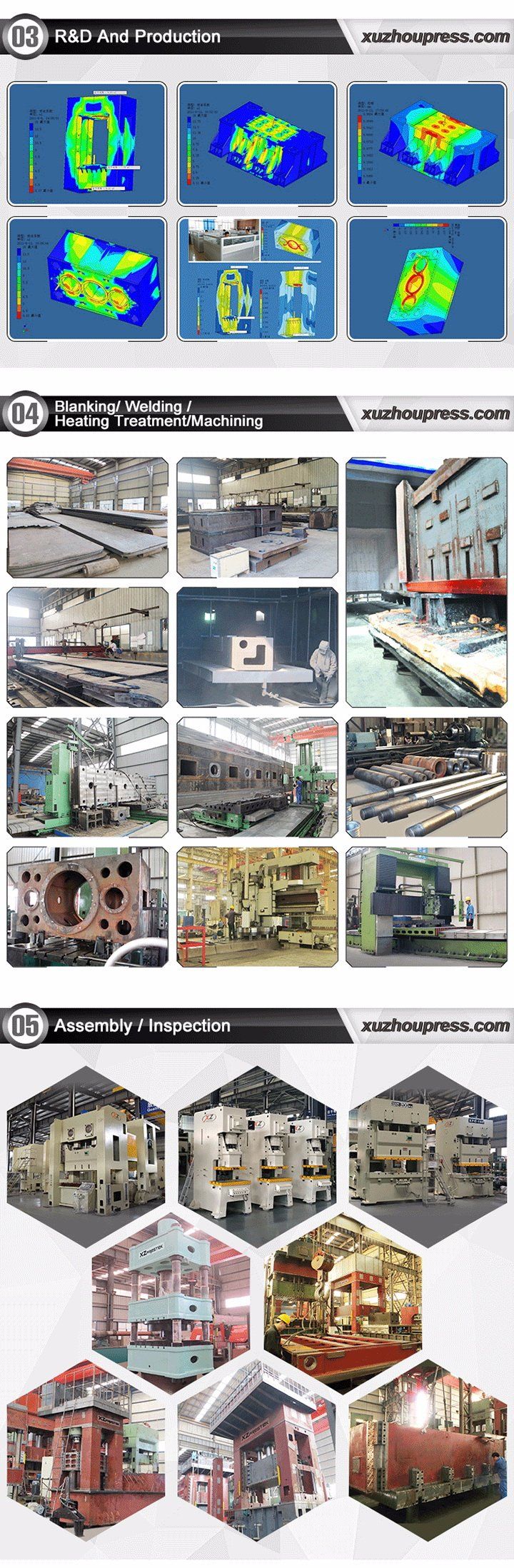

Manufacturing Strength:

*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.

*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.

Marketing:

* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.

*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
