| Prod Model: |
AWR3050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China |
| Machine Type: |
Wheel Repair Machine |
| Processing Type: |
Alloy Wheel |
| Precision Grade: |
High Precision |
| X,Z Axis Motor Type: |
Servo Motor |
| Warranty: |
One Year |
Product Description

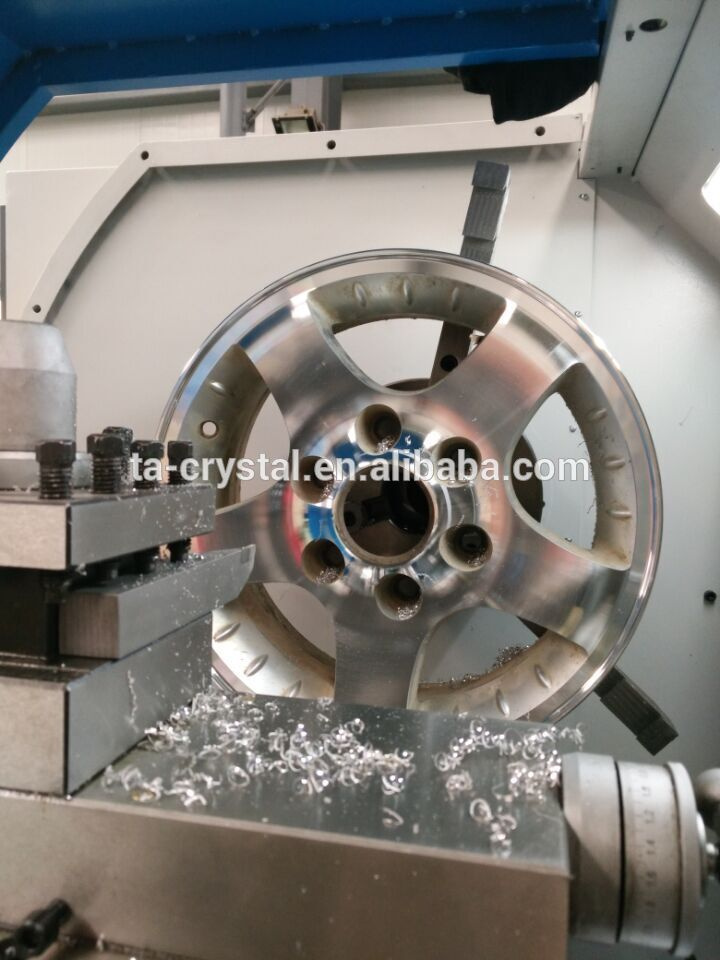

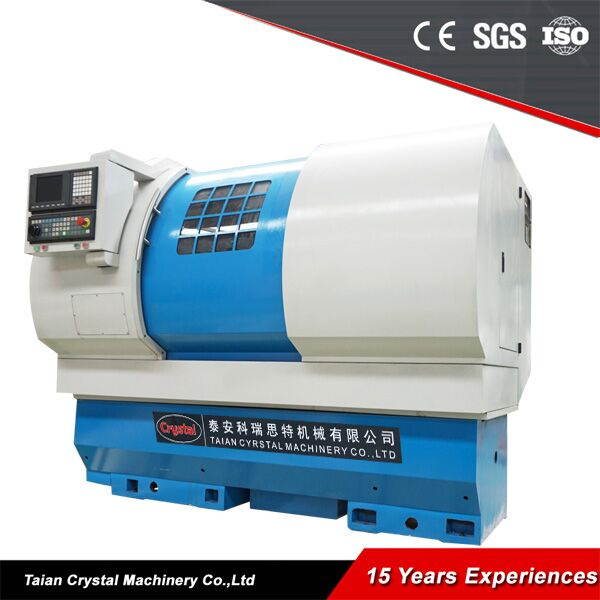

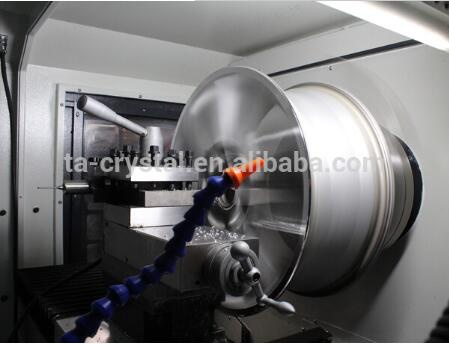

CNC Alloy Wheel Repair Machine Tools AWR3050Features Includes wheel profile optimising software package

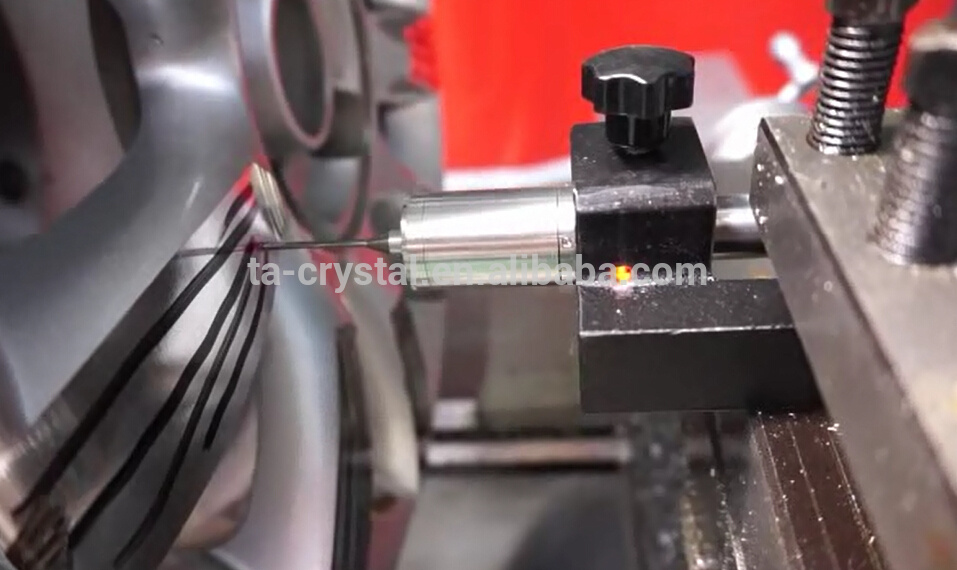

Automated self plotting digitisation probe system
Automatic electronic pump lubrication
Supply Repairing alloy wheel up to Max 28'

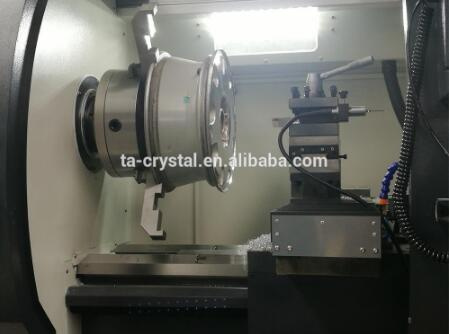

Manual chuck with soft jaws

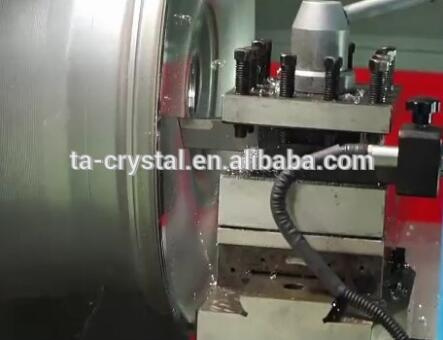

Four position manual tool holder
Automatic spindle speed control
Whole cast iron base and full-guarded
X & Z axis servo motors
Training & technical support
Fully CE compliant
7x12 hours email or telephone technology supply
Specifications
ITEMS |
Specifications |
Max. swim over bed |
Φ770 |
Max. swim over carriage |
Φ550 |
Max. Size of alloy wheel |
28' |
Cross slide travel (mm) |
360 |
Width of the machine |
400 |
Length of the rail |
1630 |
Size of three-jaw chuck |
15' |
Range of spindle speed |
50~1800 |
Spindle speed control |
Automatic |
Spindle bore |
Φ82 |
Taper of spindle bore |
1:20/ Φ 90 |
Taper of spindle nose |
D1-8 |
Stations of tool carrier |
4 position |
Max. size of tool post |
25×25mm |
Min. setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8 m/min,(X) cross 4 m/min |
Machine base |
Whole cast iron base |
Motor power |
7.5KW |
Packing size(length ×width ×height) |
2690×1850×2010 |
Net weight |
3000kg |
Make you satisfied is our business! The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
