Brief introduction:

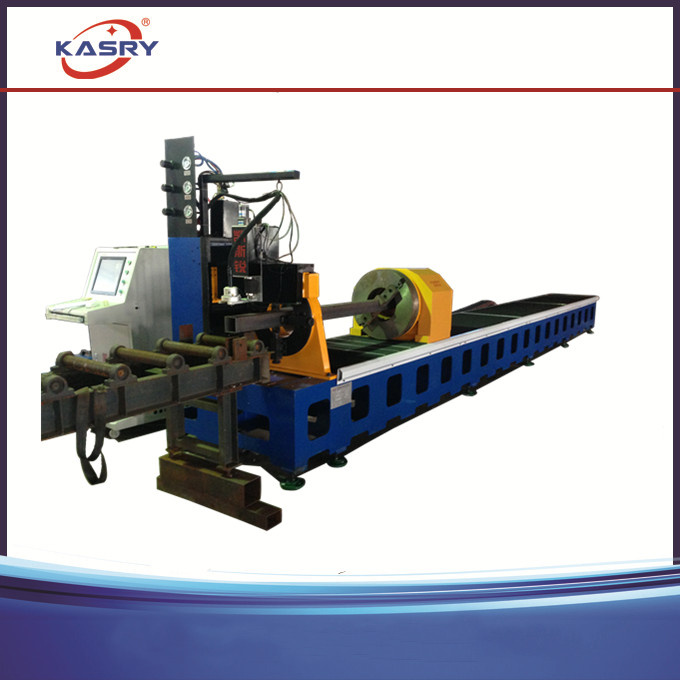

KR-XY4 CNC cutting machine for square tube, rectangular tube, oval tube and profile H ,L ,U,I type steel etc.
Features:
3D cutting of irregular pipe/tube such as square tube, rectangular tube, conical tube, polygonal tube, etc; other special shapes and cutting requirements can be customized upon customers demands.
User-friendly design and easy operation, cutting process can be well monitored and cutting accuracy well verified by computer, also, NC class DSTV specification can be provided.
Rich and extensible raw material library covering GB, JIS, ASTM; complete bevel types such as fixed angle, fixed point, fixed AWS ,etc.
Technical parameters and moving axis:
| Model | KR-XY4 Pipe CNC cutting machine |
| Cutting range | 6m ( customized ) |
| Machine size | 40mmx300mmx6000mm( customized ) |
| Cutting method | Plasma/Flame |
| Cutting thickness | Plasma: Depending on the plasma power Flame:6-160mm |
| Plasma cutting speed | 500-3500mm/min |
| Control system | Advantech industrial computer |
| Plasma Max. hole thickness | Depending on the plasma power |
| Plasma Max. edge cutting thickness | Depending on the plasma power |
| Plasma anti-collision system | Yes |
| Driving motor | Servo motor |
| Software | KASRY pipe apply software |
| Working condition | |
| Working pressure of compressed gas | Above 7mpa |
| Require gas flow of plasma | 4500L/H |
| Working environment | Ventilation ,no concussion |
| Power wattage | 5KW |
| Types of gas | Acetylene propane |
| Moving axis | Choosing axis | Rang of activities |

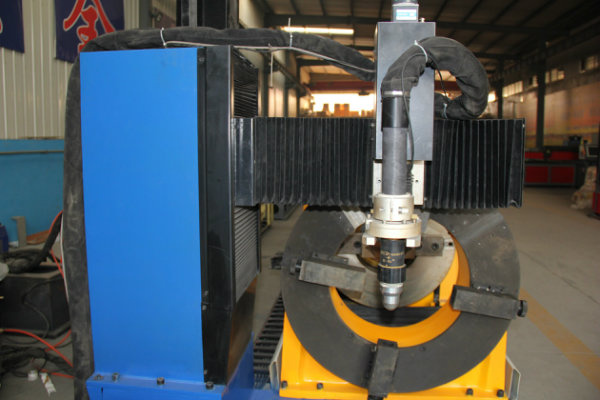

| X axis: | Pipe rotation axis | 360° free rotation |
| Y Axis: | The torch moving along the pipe horizontal axis | Maximum stroke (customer cut pipe length ) |
| Z axis: | The rise and fall vertical the tube axis | Max stroke is half of largest diameter adding 20mm |
| W axis | Torch along the tube axis radial movement | Depend on the pipe width |

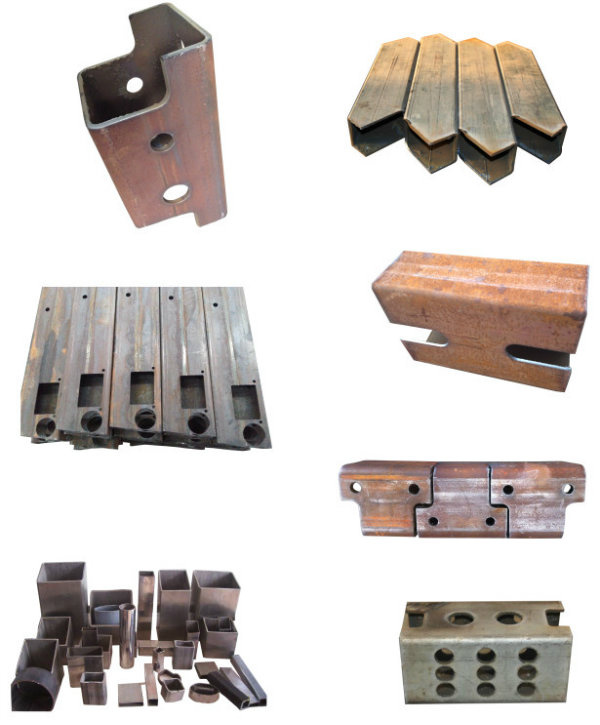

Applications:
1.Applies to all kinds channel, beam, angle, ball flat steel, square pipe and rectangular pipe etc.
2.Especially for steel construction, fitness equipment,shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.
Factory Visit:
Our Services
1.One year warranty,free maintenance throughout service time..
2.free technical support through Email and telephone.
3.Training and installation on-site if required.
Why choose us
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile
