CNC Plasma Tube Cutting Machine/Steel Pipe Cutter

CNC Plasma Tube Cutting Machine/Steel Pipe Cutter
Price: US $ 20000-30000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KR-XY5

Product Description

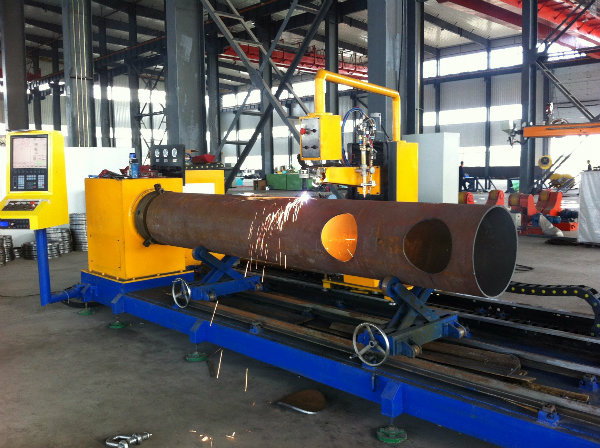

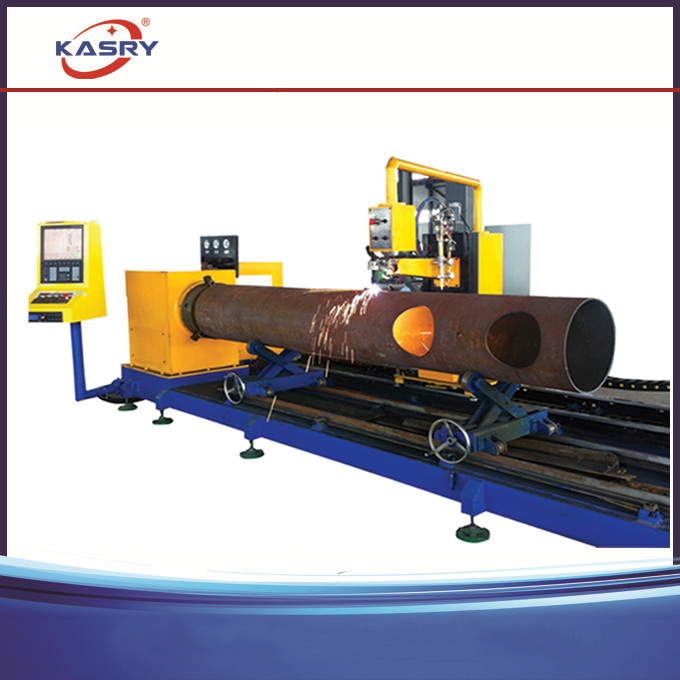

KASRY KR-XY3 Pipe CNC cutting machine

Brief introduction

Pipe CNC cutting machine for round pipe. It can cut carbon steel, stainless steel and other material. It is widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

Features

1,Adopt welding platform, heavy rail and improve the overall bearing weight, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.

2,Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, oversized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs

3,Taiwan's Advantech industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness By KASRY professional pipe cutting applications for a seamless connection.
Technical parameters and moving axis


ModeKR-XY3 Pipe CNC cutting machine
Cutting range6m 9m 12m( customized )
Machine size7800*1800*1650mm( customized )
Cutting methodFlame/plasma
Flame cutting speed20-700mm/min
Plasma cutting speedDepending on the plasma power
Control systemAdvantech industrial computer
Plasma cutting thicknessDepending on the plasma power
Flame cutting thickness6-160mm
Plasma torch anti-collision systemyes
Driving modeservo
SoftwareKASRY pipe apply software
Nesting softwareSTARCAM/FASTCAM
                                 Working condition
Working pressure of compressed gasAbove 7mpa
Required gas flow of plasma4500L/H
Working environmentVentilation, no concussion
Power wattage 5KW
Types of gasAcetylene propane

Moving axisChoosing axis Rang of activities
X axis:Pipe rotation axis360° free rotation
Y Axis:The torch moving along the pipe horizontal axis Maximum stroke (customer cut pipe length )
Z axis:The rise and fall perpendicular
     the pipe axis
The axis is not involved in the linkage.
Max stroke is  half of the largest diameter adding 20mm

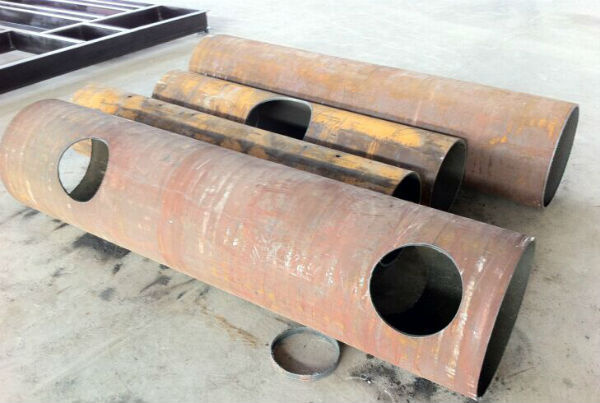

Cutting sample:



Factory Visit:


Our Services
1.One year warranty,free maintenance throughout service time..
2.free technical support through Email and telephone.
3.Training and installation on-site if required.

Why choose us

1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile



Contact information

KASRY sales manager

named:  Tom Zhou

mob: +8618560027001




Welcome your join us , we are sure to be your best supplier !

Company Profile

Shandong Kasry Intelligent Equipment Co., Ltd. is a collection of scientific research, design, production and sales as one of the high-tech enterprises, is committed to CNC intelligent equipment for the world's industrial intelligent factory: Material budget - logistics - - Group of welding the overall design solutions, with advanced technology, improve the service system, strong capital strength and rich industry experience, and the formation of a global sales network.

Company culture

KASRY keeps the employment system to let the people who have the mind to do career have opportunity, to give them the stage who have ability and hard work. Let them who succeed in KASRY have the status, uphold the "perfect as the ultimate goal" as a work attitude, all of this makes Kasry breakthrough, in a Leap-style development into the international standard track, to become a world-class manufacturing enterprises.

Industry prospects

The development increasing of social labor costs the production process enhanced degree of automation more higher. Future industry 4.0 pace is getting closer, no man factory will be in every corner of the world. To install brain to the machine makes the device more intelligent, KASRY has been on this road to exploring the growth.

With the continuous improvement of the degree of global industrialization, modern industrial process automation equipment will be the next decade the development trend.

KASRY research and development of intelligent software system core technology had reached the international advanced level, we will work with our partners for the world industrial development do efforts! After win the market can win the future!
