| Price: | US $ 60000-80000SET |
|---|---|
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | KR-XF8 |
|---|---|
| Name: | Pipe Tube Cutting Machine |
| Color: | Blue, Can Be Customized |
| Pipe Diameter: | 50-630mm, Can Be Customized |
| Tube Width: | 50-400mm, Can Be Customized |
| Length: | 6/9/12m |
| Control System: | Kasry |
| Pipe Nest Software: | Kasry |
| Weight: | 5t |
| Application: | Steel Fabrication, Oil and Pipeline |
| Function: | Cut and Bevel |
Working video :
Round Steel Pipe Plasma Cutting beveling machine working video :
https://youtu.be/IWPIp8007nU
Steel Sqaure tube plasma cutting beveling machine working video :
https://youtu.be/JfTvTQVB6mM
Brief of cnc pipe tube cutting machine :

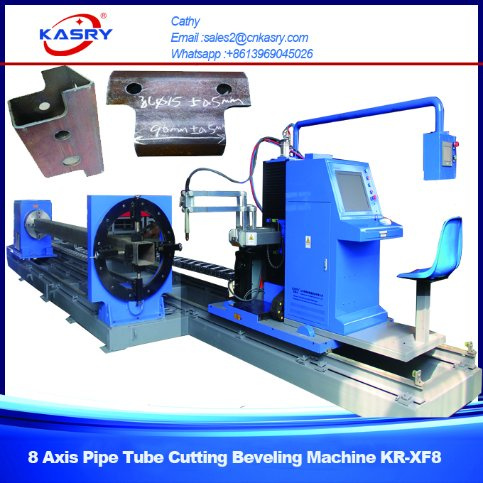

Hot sale product KR-XF8, a multifunction cnc pipe profile cutting machine. It can cut and bevel round pipe,sqaure tube and rectangular tube,also can cut channel,angle,h beam steel at one machine. It is fully automatic pipe cutting machine. Using gas cutting and plasma cutting method. This machine is special designed for steel structure construction,ship building ,marine engineering,offshore building ,etc.
Features of cnc pipe tube cutting machine:

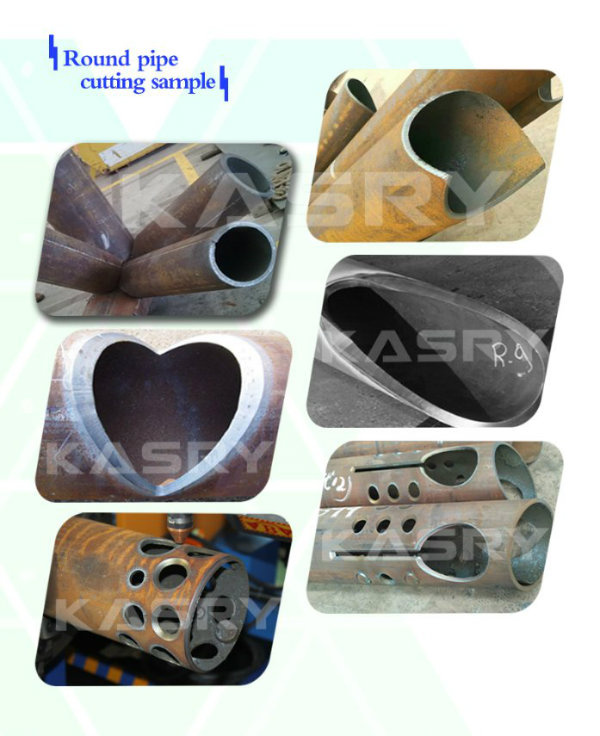

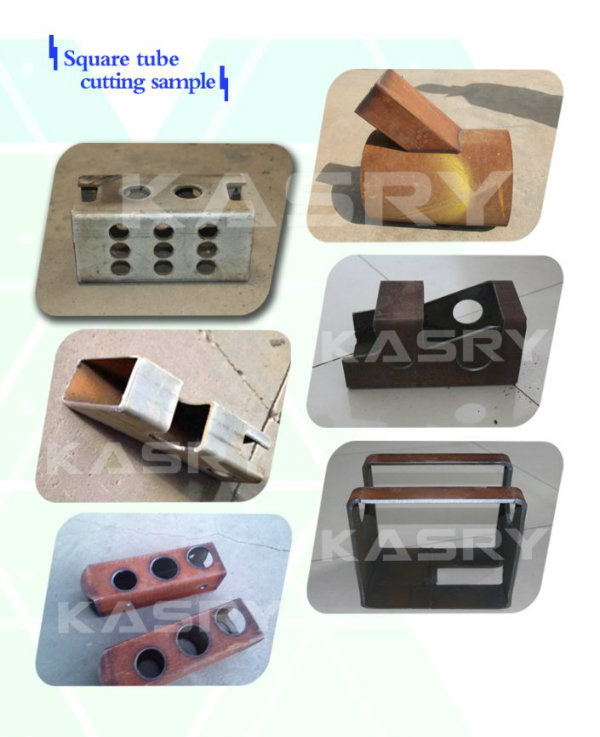

1.Cut shape :Round pipe , Square pipe , Rectangular pipe
2.Cutting method :plasma /flame /plasma and flame ,it depend on the cutting thickness
3.Range :Round pipe 50-600mm
Square pipe/ rectangular pipe 50-400mm
Length :6m/9m/12m , it can be customized
4.Function :cutting and beveling in one time
5.Kasry Control system and software advantage :
a:After you buy the machine can be upgraded lifetime ;
b:Good compability ,support Tekla , 3D ,3S ,STCAD ect ;
c:Easy to operate , modeling making is easy , only need from software through the centerline , easily creat pipe , arc tube , sqaure tube , rectangular tube , angle , channel , H beam and other components
d:rich graphic database in different industry , free offer to customer
e:Support Continuous cutting
f:Support one time input , read the file , generate a whole budget material chart ,can earlier know the pipe diamter , length and cutting process , can prepare earlier ,prevent waste the material
g :Optimize nesting ,prevent material waste
h :After nesting , can one time out put generate G code , cutting directly ,save staff , save time , save cost
i :support online and offline programming ,convinent
6.Cutting welding can be up to AWS .
| Moving axis | Choose cutting axis | Range of activities |
| Y1 axis : | Pipe rotary driving shaft | 360 ° free rotation |
| Y2 axis : | Pipe driven rotation shaft | 360 ° free rotationrotation |
| X1 axis | The spindle box moves back and forth along the length of the tube | The maximum stroke12000mm |
| X2 axis | The trolley moves along the length of the tube | The maximum stroke 13000mm |
| B axis | The torch swings along the length direction of the pipe | 55 degree |
| A axis | The torch swings along the radial direction of the tube | 60 degree |
| Z axis | Torch move up and down | Travel 420mm |
| U axis | The trolley moves along the radial direction of the tube | Move back and forth 300mm |
| Model | 8 axis round pipe & square tube cutting machine |
| Round Pipe | 50-630mm, can be customized |
| Sqaure Tube | 50-400mm |
| Rectangular | 50-400mm |
| Cutting range | 6m/9m/12m |
| Machine size | 17500x2200x2100mm |
| Cutting method | Flame / plasma |
| Cutting thickness | Flame :6-60mm Plasma :standard 2-14mm |
| Flame cutting speed | 20-700mm/min |
| Control system | Advantech industrial computer |
| Plasma max.hole thickness | 14mm |
| Plasma max.edge cutting thickness | 18mm |
| Plasma cutting speed | 500-3500mm/min |
| Plasma torch anti-collision protection system | Yes |
| Driving method | servo |
| software | KASRY PIPE apply software |
| Working condition | |
| Working pressure of compressed gas | Above 0.7mpa |
| Required gas flow of plasma | 4500L/H |
| Working environment | Ventilation, no concussion |
| Power | 5KW((not include plasma source power) |
| Types of gas | Acetylene Propane |
Why choose us?
1. We specialized in the production and sales of CNC cutting machine,plate cutting machine , pipe cutting beveling machine , h beam cutting machine ect .

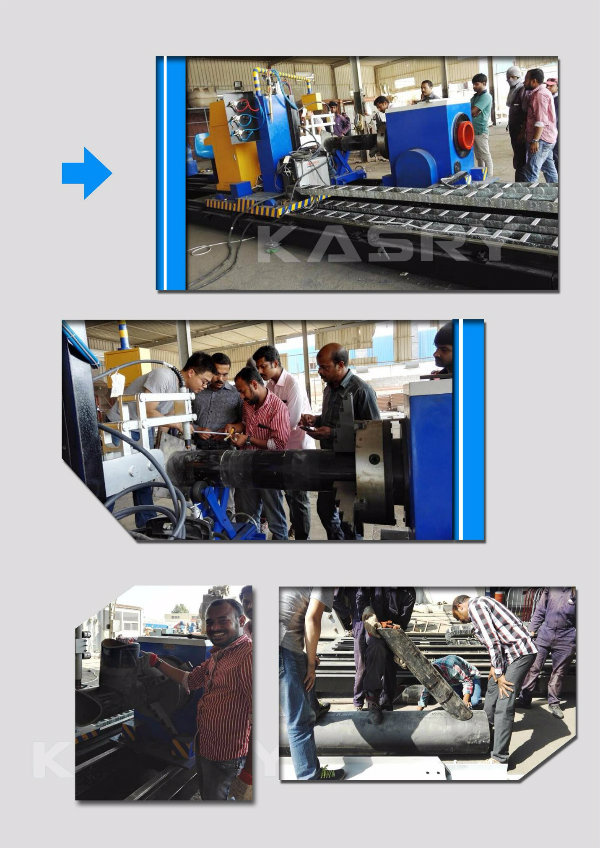

2. We have a professional sales and service team , can provide the installation and training

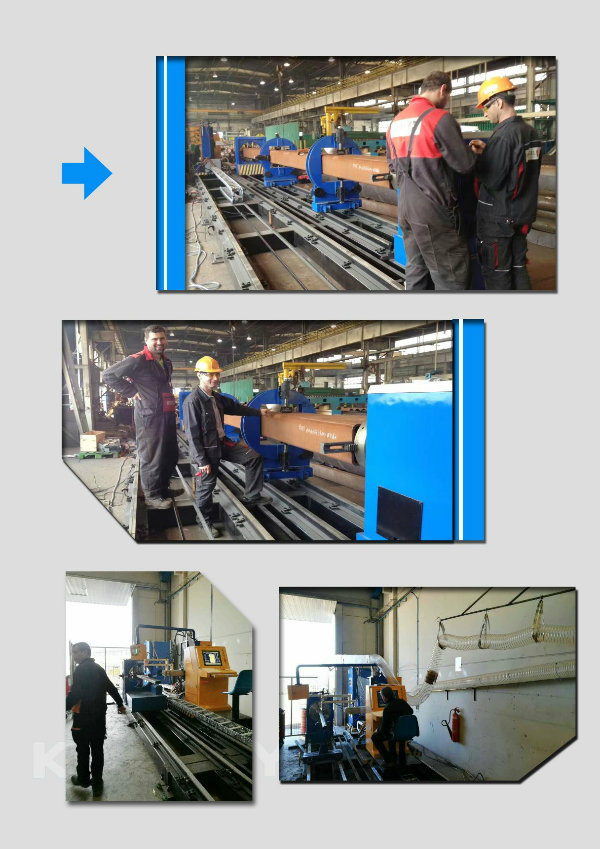

3.Our products, quality guarantee,CE certificate, they are exported to more than 40 countries around the world, Such as Hungary ,Poland ,Spain ,India ,Belgium. French. Indonesia. Korean. Australia . Romania. Russia. Iraq and so on.
4-Frame and software all Kasry own brand , delivery time and quality have enough guarantee
5-Two years global warranty
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself , quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas. (2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6. What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
Welcome to your inquiry , we will recommend the most suitable machine and improve your working efficiency .
Contact :Cathy
www.pipingcutting.com
