| Prod Model: |
HX5042 |
| Nesting Software: |
Fastcam |
| Design System: |
Auto-CAD, Caxa |
| Power Supply: |
USA Hypertherm or China Huayuan |
| Control System: |
Starfire, Flmc-F2300A, Start, Nc-Studio |
| File Transmission: |
USB |
| Cutting Thickness: |
Depend on The Power |
| Product Name: |
Plasma Cutting Machine |
| Type: |
Table Type |
Product Description

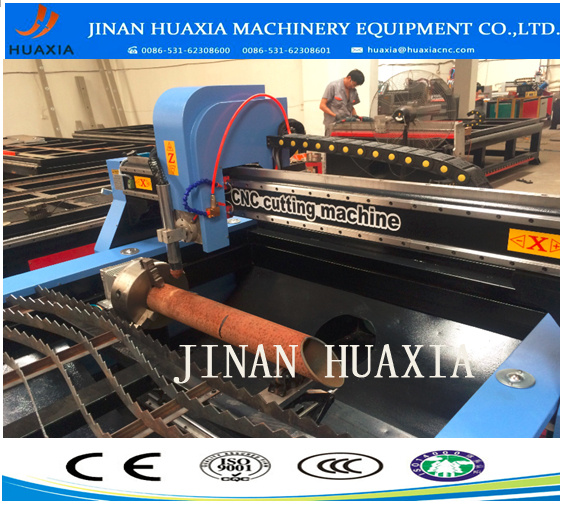

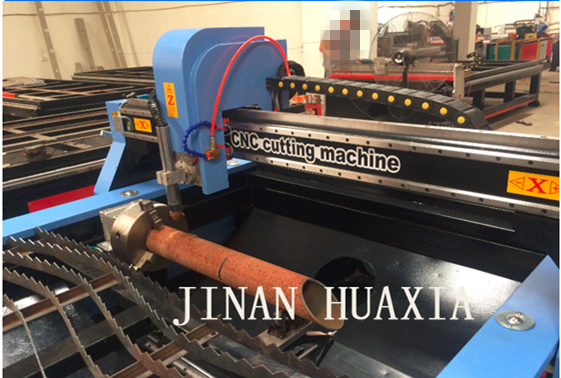

CNC Pipe Sheet Plasma Cutting MachinaThis machine can cut metal plate and metal pipe.
Technical parameters| 1 | cutting graphics | All kinds of plane figure |
| 2 | cutting speed | 0-4000mm/min |
| 3 | round tube speed | 0-4000mm/min |
| 4 | Cutting method | Plasma /flame |
| 5 | Cutting area | X:1500mm,Y:2500mm/3000mm |
| 6 | Cutting thickness | Flame :6-200mm,
Plasma :1.5-20mm(according to the plasma power supply) |
| 7 | Thickness of circular tube | Flame :6-80mm,plasma1-20mm
(according to the plasma power supply) |
| 8 | Max tube diameter | 0-250mm(can be customized ) |
| 9 | Cutting length | According to different machine size |
| 10 | cutting precision | ±0.5mm |
| 11 | NC programming | Support AUTOCAD/TYPE3/CAXA/SOLIDWORKS etc. |
| 12 | file transfer | U disk |
| 13 | power supply voltage | 220V 50HZ /plasma:380V |
| 14 | work environment temperature | temperature:-10ºCto +60ºC,
relative humidity:0-95%No condensation |

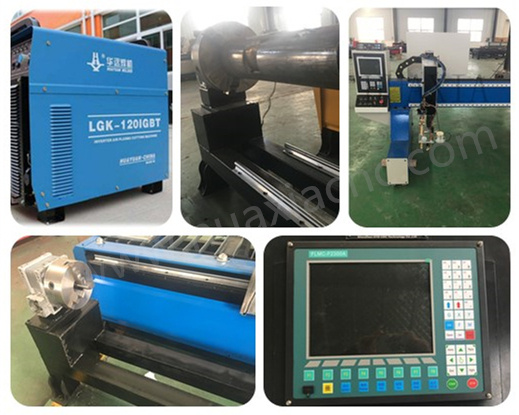

Production details

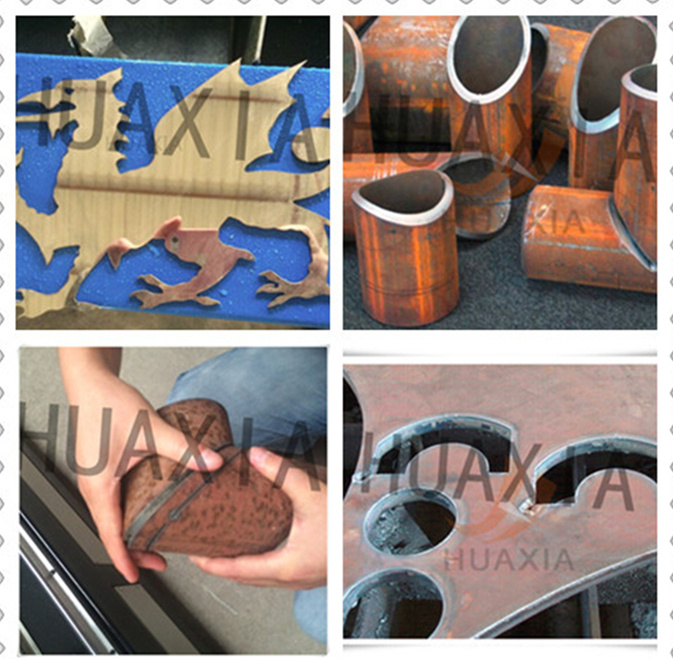

Sample
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect.
3.How about of your shippng?With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When receive your payment, we produce the machine, when we finished the machine, will help you book the ship, the shipping to you. Contact:Jinan Huaxia Machinery Equipment Co.,Ltd
Connect Person:Claire
Tel: (+86)0531-62308600
Mail:claireat huaxiacnc com
Whatsupp:008618340056306
Imo: +8618340056306
Website:http://www.huaxiacnc.com/en/

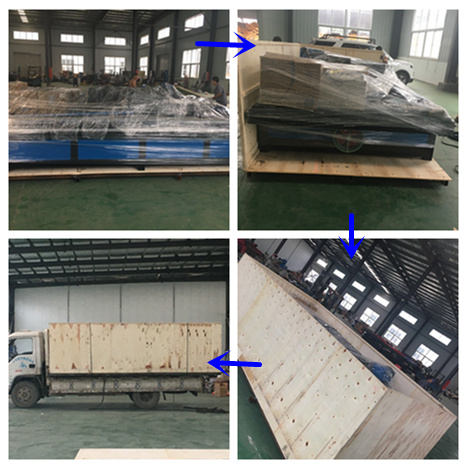

Packaging Details:plywood case after packed by Wrapping filmDelivery Detail:within 15 working days after recieved the deposit
