| Prod Model: |
HX4032 |
| Design System: |
Auto-CAD, Caxa |
| Nesting Software: |
Fastcam |
| Power Supply: |
China Huayuan or USA Hypertherm |
| File Transmission: |
USB |
| Voltage: |
380V/220V |
| Control System: |
Starfire, Flmc-F230A, Start, Nc-Studio |
Product Description

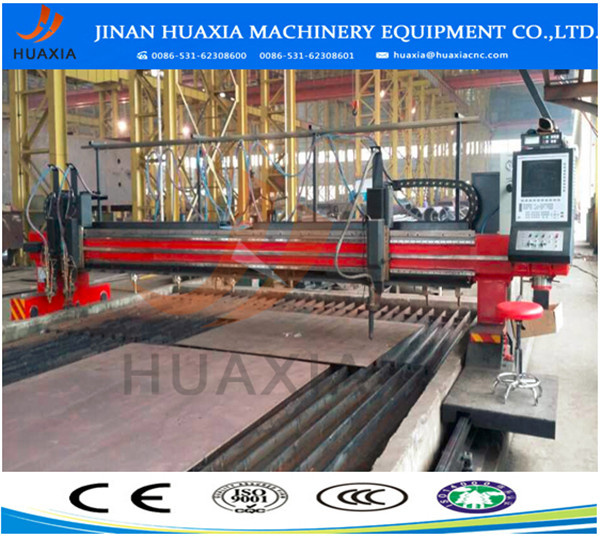

CNC Ganrty Plasma Cuttng Machine
Product introduction:1, the gantry type CNC cutting machine can equip with different plasma flame more cutting torch according to customer different configuration.2, CNC flame / plasma cutting machine is a kind of high efficiency, energy saving cutting equipment. Precision cutting work is suitable for all kinds of thickness of carbon steel, stainless steel and non-ferrous metal plate blanking, improving utilization of material, saving time and material . CNC flame cutting machine can max cut 5 - 300mm thickness with of high quality for carbon steel material.
3, gantry type beam, it's bearing capacity is good, suitable for wide span, effective bilateral drive, compact structure, whole temper, sufficient to eliminate welding stress, stable and reliable performance.
4, the X axis guide rail with domestic or imported linear guide rail, high precision, good guide. The Y axis guide rail adopts traits, the surface by grinding processing, has the very high mechanical precision and wear resistance.Gantry Plasma machine fit to thick plate .
Parameter| Guide length(mm) | 3000 | 4000 | 5000 | 6000 | 7000 |
| Working width(mm) | 2200 | 3200 | 4200 | 5200 | 6200 |
| Control system | SHANGHAI FLMC-F2300A/BEIJING STARFIRE or customed |
| Flame cutting torch | The special NC flame cutting torch |
| Plasma power supply | According to the customer requirement |
| Torch distance(mm) | 200 |
Travelling speed
(mm/min) | 0-10000 |
| Cutting speed(mm/min) | 0-6000 |
| Flame cutting thickness(mm) | 5-300 |
| Plasma cutting thickness(mm) | According to the plasma power |
| Gas type | Acetylene, propane or natural gas
|
| Cutting Table and Base | we will supply darwing of cutting table
Base (H-beam )and cutting table are not supplied |
Rail:

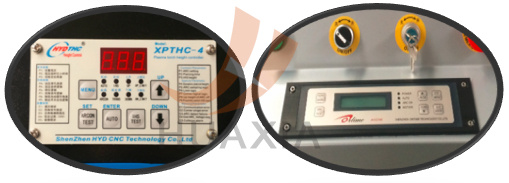

THC

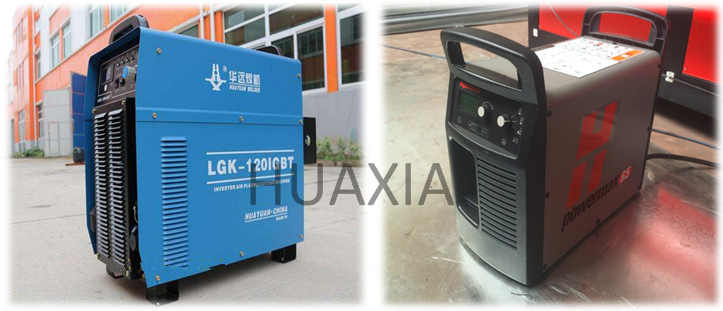

Power
China HUAYUAN power USA Hypertherm power

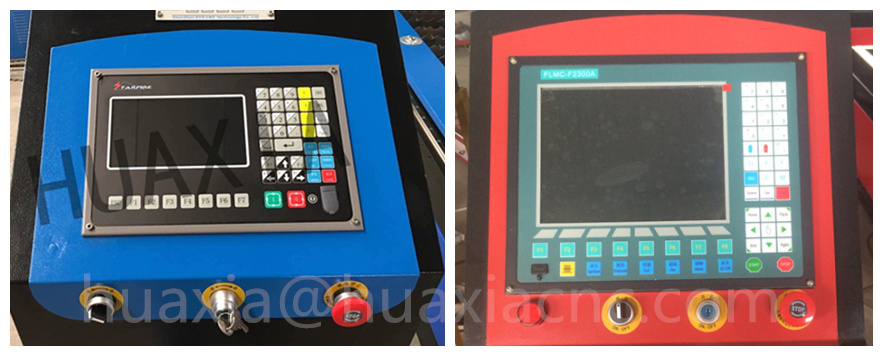

Control systerm STARFIRE Control Systerm FLMC-F2300A Control Systerm

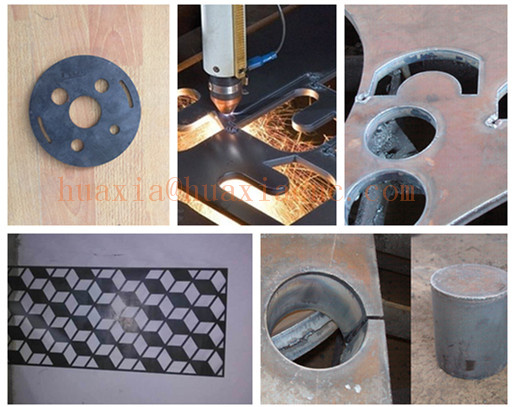

Sample1.The Suitable material:
Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.
2.The application industries:
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect.
3.How about of your shippng?With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When receive your payment, we produce the machine, when we finished the machine, will help you book the ship, the shipping to you. Contact:Jinan Huaxia Machinery Equipment Co.,Ltd
