Product Description

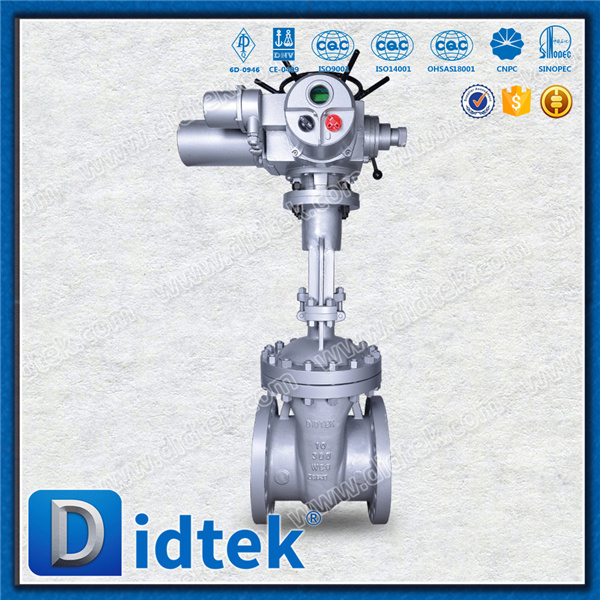

Didtek DIN EN1092-1 Flange Rising Stem Gate Valve
Application & Function:
Didtek Cast steel Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.
Technical Specification
Brand: DIDTEK
Size Range: DN150
Pressure Rating: PN16
Material: A216 WCB
Temperature Range: -29°C~350°C
Applicable Standards:
Design: EN 10434
Face to face: EN 558-1
End Flanges: EN 1092-1
Butt welded ends: EN 12627
Inspection and test: EN 12266-1
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 15 - 30 days
Valve Sample: Sample Available by Didtek Valve
Valve Color: Customer request
Valve Packing: Plywood Case for Gate Valve
MOQ: 1 Set
Valve Certificate: API 6D, CE1521, PED Model H 2014/68/EU, ISO9001: 2008, ISO14001, CU-TR 010/032, EAC
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C, D/A, D/P, T/T, Western Union

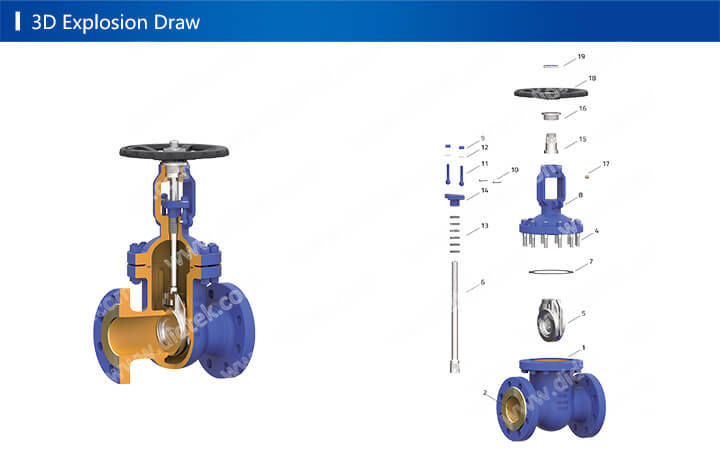

| Parts name | Part Name | Carbon Steel to DIN | Stainless Steel to DIN |
| 1 | Body | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 2 | Seat | GS-C25/1.0619/GP240GH+13Cr | 304 | 316 |
| 3 | Nuts | A194 2H | A194 8 | A194 8M |
| 4 | Bolts | A193 B7 | A193 B8 | A193 B8M |
| 5 | Disc | GS-C25/1.0619/GP240GH+13Cr | A351 CF8 | A351 CF8M |
| 6 | Stem | A182 F6a | F304 | F316 |
| 7 | Gasket | SS Spiral Wound W/graphite,or SS Spiral Wound W/PTFE,or Reinforced PTFE |
| 8 | Bonnet | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 9 | Nuts | A194 2H | A194 8 | A194 8M |
| 10 | Gland Eyebolt Pin | A29 1035 | A276 304 |
| 11 | Eyebolt | A193 B7 | A193 B8 | A193 B8M |
| 12 | Washer | AISI 1045 | F304 | F304 |
| 13 | Packing | Braided graphite,or Die-formed graphite ring or PTFE |
| 14 | Gland Flange | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 15 | Stem Nut | Copper alloy or A439 D2 |
| 16 | Yoke Cap | AISI 1045 | 1.4308 | 1.4408 |
| 17 | Zurt Fitting | Copper Alloy/A439 D2/GGG40.3 |
| 18 | Hand wheel | Ductile iron /Malleable Iron |
| 19 | H.W.Lock Nut | Carbon Steel | Stainless Steel |
Main Outline Dimensions | PN16 |
| Valve Size | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 |
| Face to Face | L1:RF | 160 | 180 | 240 | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 |
| L3:BW | 160 | 180 | 240 | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 |
| Valve Height(H) | 25 | 270 | 305 | 325 | 350 | 415 | 465 | 545 | 610 | 775 | 905 |
| Valve Height(H1) | - | - | - | - | - | - | - | - | - | - | 1220 |
| Lever Diameter(W) | 160 | 180 | 200 | 200 | 200 | 250 | 280 | 300 | 360 | 360 | 400 |
| Handwheel Diameter(W1) | - | - | - | - | - | - | - | - | - | - | 310 |
| Weight(Kg) | 10 | 15 | 18 | 25 | 25 | 38 | 45 | 72 | 97 | 169 | 258 |
Remark: More details from 300LB to 2500LB data please check our catalogs.
