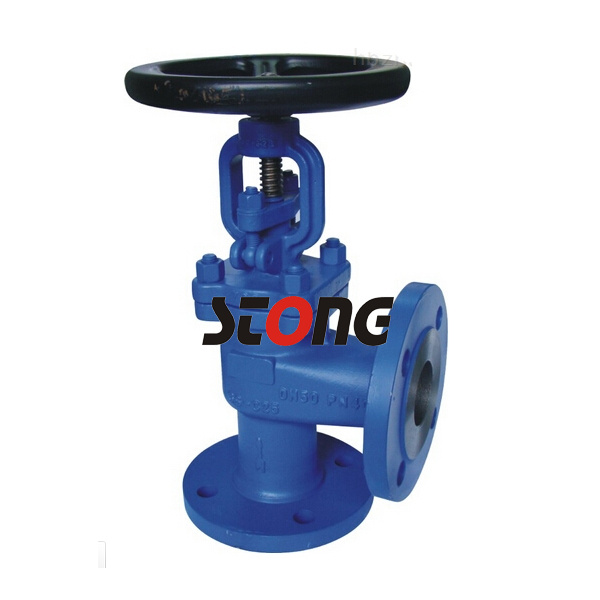

DIN Angle Type Bellow Seal Globe Valve
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
JZ |
| Operation: |
Manual & Gear |
| Structure: |
Angle Type Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Plunger Type Globe Valve |
| Standard: |
ANSI |
Product Description
DIN Angle Cast Steel Bellow Seal Globe ValveProduct Description
Specifications
Bellow Seal Globe Valve
With ISO9001, CE, TS, 3.1B certificate
With high quality and reasonable price.
Bellow Seal Globe Valve
1) Size:
Flanged: 2"~ 48" / DN50~DN200
2) Pressure class: PN10 ~PN40
3) Temperature: -29° C ~ 425° C
Design Standard: GB/DIN
Flanged Standard: GB/DIN 2543-DIN2546
Face to Face Standard: DIN 3202
Inspection and testing Standard: DIN3230-75
4) Suitable medium: Water, oil, gas.
5) Body material: WCB, CF8, CF8M.
6) Operation: Manual control, gear operated, motor actuated.
| Structural formation | Bolt-jointed bonnet outside stem yoke structure |
| Driving manner | Hand-operated |
| Design standard | ASME B16.34/BS1873 |
| Face to face | ASME B16.10 |
| Flanged ends | ASME B16.5 |
| Test &inspection | API598 |
No.
Accessory Name | Material | |
| 1- Body | ASTM A216-WCB
ASTMA217-WC1\WC6\WC9\C5
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M |
| 2-Nut | ASTM A194-2H\A194-8\A194-8M |
| 3-Bonnet | ASTM A216-WCB
ASTMA217-WC1\WC6\WC9\C5
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M |
| 4-Disc | ASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L |
| 5-Gasket | Graphite+Stainless Steel |
| 6-Stud | ASTM A193-B7\A320-B8\A193-B8M |
| 7-Flat cover | ASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L |
| 8-Stem | ASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L |
| 9-Packing | Graphite |
| 10-Packing press-sleeve | ASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L |
| 11-Packing gland | ASTM A216-WCB
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M |
| 12-Valve stem nut | Copper alloy |
| 13-Handwheel | ASTM A47-32510 |

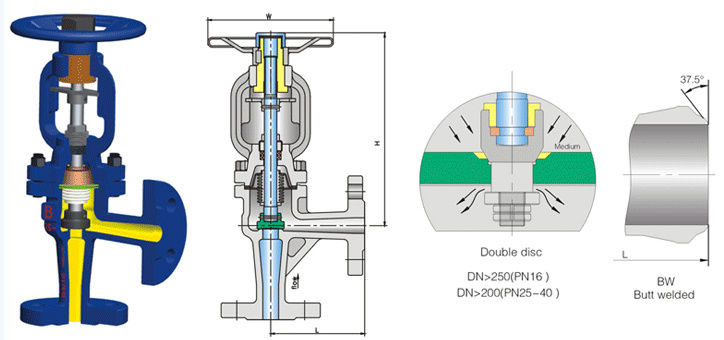

| Model | GAWJ44/GADWL44 |
| Pressure | 1.6/2.5/4.0Mpa. |
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 |
| H | 166 | 166 | 172 | 175 | 193 | 195 | 213 | 227 | 294 | 325 | 355 | 440 | 580 | 620 | 785 |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
