| Prod Model: |
8200010001 |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
| Material: |
UPVC |
| Connection Form: |
Socket |
| Function: |
Liquid Control |
Product Description
Jiangsu Huasheng Plastic Co., Ltd is one of the biggest PVC manufactuer in water supply field which has powerful abilities both in opening model and R&D
| Description: | |

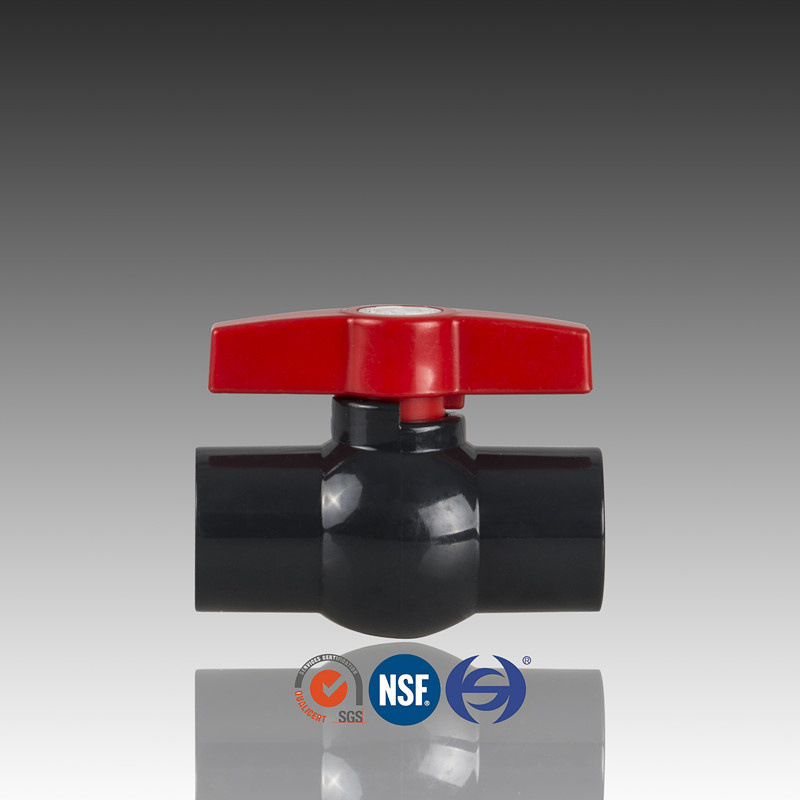

| Items Name | PVC Socket Ball Valve |
| Material | PVC-U |
| Size | 20~110 mm |
| Color | Light Grey /Dark Grey/Blue/White |
| connection | Socket or thread |
| Pressure | PN10/PN16 |
| Power methods | Manual |
| Standard | DIN, ANSI, CNS, JIS; NPT, BSPT, BS |
| Certification | ISO14001,SGS,CE, SO9001 |
| Temperature of Media | Normal Temperature |
| Usage | for water supply, drainage or aquaculture |
Advantage:
1.Good price,low installation cost
2.Light material,easy to installation,save time
3.Corrosion resistant,stability
4.The wall is bright and clean
5.No heat transfer
6.Non-conductive,inflaming retarding

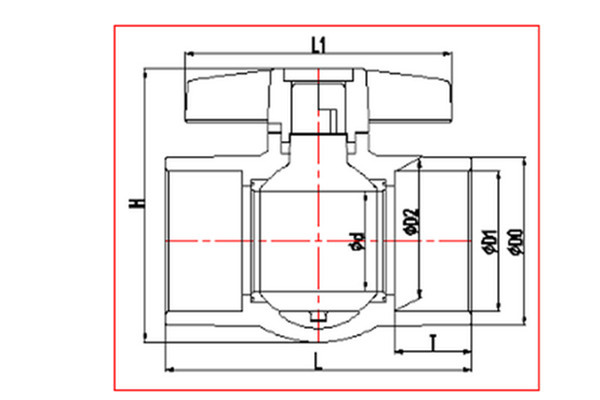

| (DIN)VALVE |
| Dimension(mm) |
| Size(De) | D0 | D1 | D2 | d | T | H | L1 | L |
| 20 | 30.00 | 19.96 | 20.24 | 15.00 | 17.00 | 60.00 | 70.00 | 74.00 |
| 25 | 35.00 | 24.95 | 25.24 | 20.00 | 19.50 | 68.00 | 80.00 | 85.00 |
| 32 | 43.00 | 31.95 | 32.25 | 25.00 | 23.00 | 80.00 | 92.00 | 98.00 |
| 40 | 52.00 | 39.95 | 40.28 | 30.00 | 27.00 | 90.00 | 112.00 | 112.50 |
| 50 | 63.00 | 49.94 | 50.33 | 34.00 | 32.00 | 105.00 | 114.00 | 128.00 |
| 63 | 76.00 | 62.93 | 63.34 | 45.00 | 38.50 | 123.00 | 134.00 | 154.00 |
| 75 | 90.00 | 74.93 | 75.35 | 55.00 | 44.50 | 156.00 | 190.00 | 176.00 |
| 90 | 105.00 | 89.93 | 90.38 | 67.00 | 52.00 | 178.00 | 220.00 | 203.00 |
| 110 | 128.50 | 109.92 | 110.42 | 93.00 | 62.00 | 208.50 | 250.00 | 260.00 |
| Packing Details |
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Socket ball
valve | De20 | 200 | 91.11 | 34.5 | 32 | 32.5 |
| 2 | De25 | 160 | 122.09 | 36.5 | 31.5 | 37 |
| 3 | De32 | 90 | 207.27 | 42.5 | 29 | 32 |
| 4 | De40 | 60 | 317.02 | 39 | 29 | 36 |
| 5 | De50 | 40 | 485.09 | 45 | 32 | 27.5 |
| 6 | De63 | 20 | 754.07 | 38.5 | 29 | 32 |
| 7 | De75 | 15 | 1129.05 | 50.5 | 44.5 | 25.5 |
| 8 | De90 | 10 | 1980.04 | 54 | 40.5 | 29.5 |
| 9 | De110 | 6 | 3140.80 | 51 | 37 | 35 |
Application Area:
1. construction, buildings, swimming pool, hot spring;
2. food&beverages, glucose, citric acid, starch, soda;
3. microelectronic industry, PCB, TFT-LCD, LED, wafer;
4. water treatment, clean water, waste water;
5. chemical, Chlor Alkaline, Copper, Aluminium, Steel; 6. Medical;
7. etc.
| Professional terms |
| PVC | polyvinyl chloride |
| CPVC | chlorinated polyvinyl chloride |
| UPVC | unplasticized polyvinyl chlorde |
| DIN | Deutsches Institut für Normung e.V. |
| ANSI | America National Standard Institute |
| JIS | Japanese Industrial Standards |
| CNS | Chinese National Standards |
| GB | National mandatory national standards |
| ISO | International Standards Organization |
| AU | Australia Standard |
| ASTM | American Society for Testing and Materials |
| SGS | Societe Generale de Surveillance S.A. |
| | National Sanitation Foundation |
Jiangsu Huasheng Plastic Co., Ltd was founded in 1988, which specialized in moulding, Precision Injection, UPVC, CPVC pipe, fittings and Valves in DIN, ISO, ASTM standard on water supply and industry with NSF, CE, ISO, SGS etc certificates

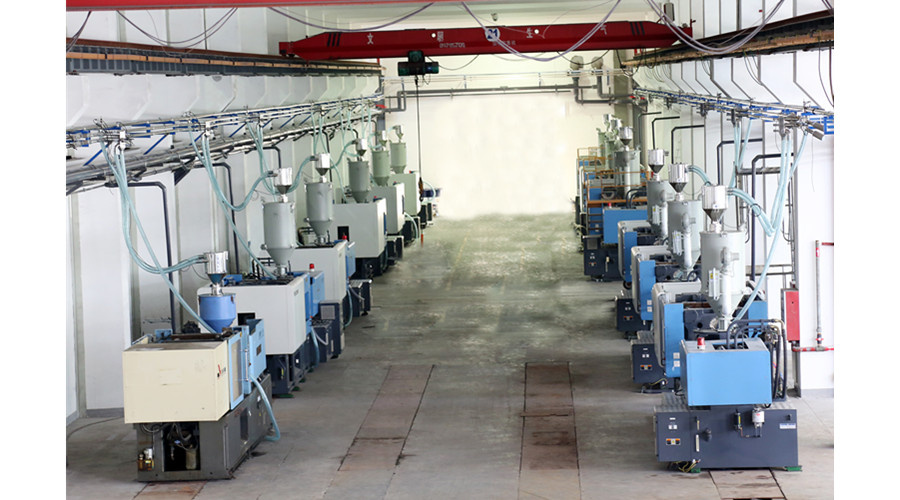

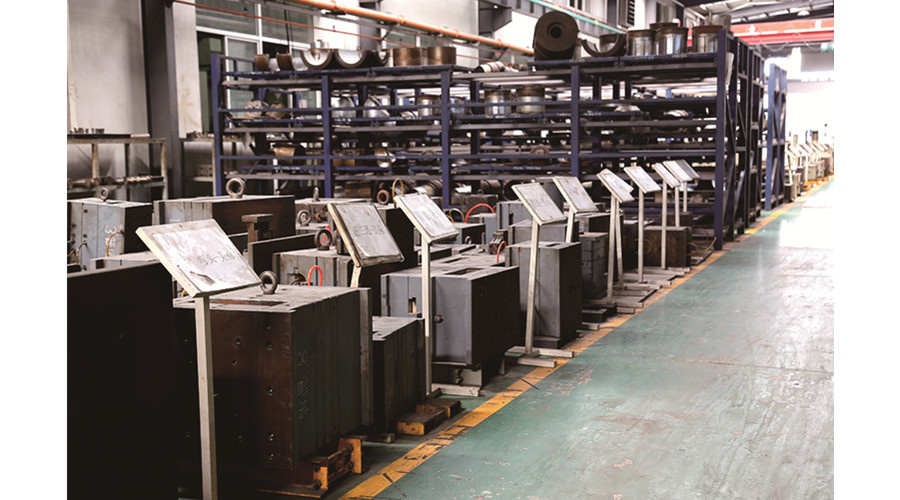

Currently, the annual production has reached a sales turnover of USD 30, 000, 000, covering 250, 000 square meters of two factories, over 170 injection machines, 20 pipe extruding lines, 80 mechanical processing equipments and more than 500 laborers.
The annual production capacity has exceeded over 60, 000 tons and storage has been over 10, 000, 000 USD. Huasheng has already exported products to U. S. A, Japan, Korea, Dubai, Pakistan, India, Philippines, Turkey, Southeast Asia area, etc.
Jiangsu Huasheng Plastic Co., Ltd has been the expert in plastic industry for over 28 years, Huasheng is one of the biggest PVC manufacturers in water supply field who has powerful abilities both in opening model and R&D.
Now Huasheng is engaging in opening global markets. The team is powerful, possitive and professional.
We firmly believe one day, we will make our dream come ture.
