Prod Model: |
8214010201 |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Household Usage |
Material: |
UPVC |
Function: |
Liquid Control |
Product Description
Jiangsu Huasheng Plastic Co.ltd is founded in 1988 ,which specialized in moulding,Precision injection,UPVC,CPVC pipe, fittings and Vales in DIN,ISO,ASTM standard on water supply and industry with CE,ISO,SGS etc certificate

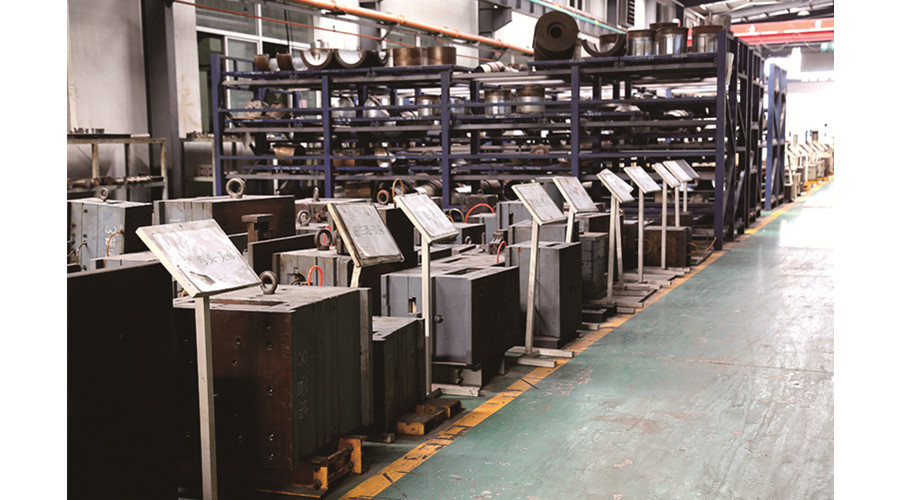

Currently, Our annual production have reached a sales turnover of USD 30,000,000, covering 250,000 square meters two factory , over 170 injection machines, 20 pipe extruding lines,80 mechanical processing equipment and more than 500 laborers
and our annual production capacity have been exceeded over 60,000 tons,our storage is over 10,000,000 USD, we have already exported our products to Pakistan, India,Philippines,Turkey, Southeast Asia area , Dubai
Description: | |

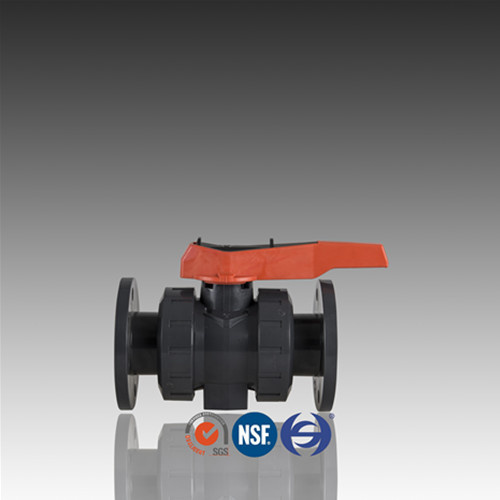

Item Description | PVC Flanged True Union Ball Valve |
Valve Material | Polyvinyl chloride |
Dimension range | DN15~DN100 |
Color details | Blue/White/Dark Grey/Light Grey |
How to connect | Socket/thread/cement/thread |
Pressures | 150psi |
Media | Water |
Standard | DIN, BS, ANSI, JIS; NPT, BSPT, CNS |
Certifications | ISO14001,ISO9001,SGS, CE |
Brand Name | Huasheng |
Packing | carton, polybag or customized |
connection | flange/Socket/cement/thread |
(DIN)VALVE |

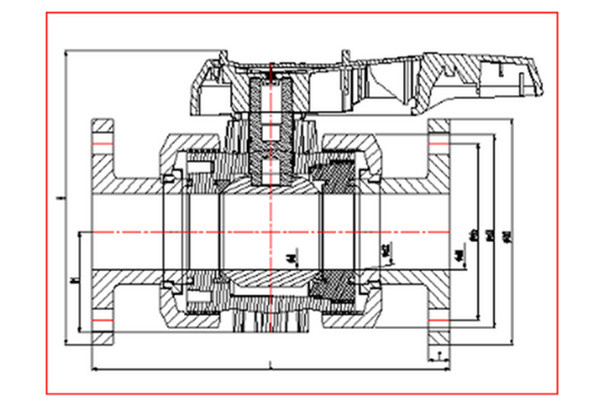

Dimension(mm) | Working Pressure (kg/cm2) |
SizeDN (De) | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L |
15(20) | 95.00 | 65.00 | 20.30 | 19.95 | 51.50 | 15.50 | 26.30 | 103.90 | 13.00 | 143.00 | 10 |
20(25) | 105.00 | 75.00 | 25.30 | 24.95 | 59.00 | 20.50 | 30.60 | 114.66 | 14.00 | 172.00 | 10 |
25(32) | 115.00 | 85.00 | 32.30 | 31.90 | 70.00 | 26.00 | 39.10 | 127.56 | 15.00 | 187.00 | 10 |
32(40) | 140.00 | 100.00 | 40.35 | 39.90 | 85.40 | 33.00 | 44.20 | 157.51 | 15.00 | 190.00 | 10 |
40(50) | 150.00 | 110.00 | 50.35 | 49.90 | 98.90 | 39.00 | 52.20 | 166.00 | 17.00 | 212.00 | 10 |
50(63) | 165.00 | 125.00 | 63.40 | 62.90 | 122.20 | 51.00 | 71.30 | 197.50 | 17.00 | 234.00 | 10 |
65(75) | 185.00 | 145.00 | 75.40 | 74.90 | 158.60 | 64.00 | 82.80 | 241.20 | 18.00 | 290.00 | 10 |
80(90) | 200.00 | 160.00 | 90.50 | 89.90 | 192.10 | 81.00 | 99.30 | 261.20 | 18.00 | 310.00 | 10 |
100(110) | 220.00 | 180.00 | 110.60 | 109.90 | 223.60 | 99.00 | 115.20 | 286.68 | 18.00 | 372.00 | 10 |
(ASTM)VALVE |
Dimension(mm) | Working Pressure (kg/cm2) |
Size (") | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L |
1/2" | 95.00 | 70.00 | 22.40 | 19.95 | 51.50 | 15.50 | 26.30 | 103.90 | 13.00 | 143.00 | 10 |
3/4" | 100.00 | 75.00 | 26.45 | 24.95 | 59.00 | 20.50 | 30.60 | 114.66 | 14.00 | 172.00 | 10 |
1" | 125.00 | 90.00 | 32.55 | 31.90 | 70.00 | 26.00 | 39.10 | 127.56 | 15.00 | 187.00 | 10 |
1-1/4" | 135.00 | 100.00 | 38.60 | 39.90 | 85.40 | 33.00 | 44.20 | 157.51 | 15.00 | 190.00 | 10 |
1-1/2" | 140.00 | 105.00 | 48.70 | 49.90 | 98.90 | 39.00 | 52.20 | 166.00 | 17.00 | 212.00 | 10 |
2" | 155.00 | 120.00 | 60.80 | 62.90 | 122.20 | 51.00 | 71.30 | 197.50 | 19.00 | 234.00 | 10 |
2-1/2" | 175.00 | 140.00 | 76.80 | 74.90 | 158.60 | 64.00 | 82.80 | 241.20 | 20.00 | 290.00 | 10 |
3" | 185.00 | 150.00 | 89.60 | 89.90 | 192.10 | 81.00 | 99.30 | 261.20 | 20.50 | 310.00 | 10 |
4" | 210.00 | 175.00 | 114.70 | 109.90 | 223.60 | 99.00 | 115.20 | 286.68 | 21.00 | 372.00 | 10 |
(JIS)VALVE |
Dimension(mm) | Working Pressure (kg/cm2) |
Size DN (De) | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L |
15(20) | 95.00 | 70.00 | 22.40 | 19.95 | 51.50 | 15.00 | 26.30 | 103.90 | 15.00 | 145.00 | 10 |
20(25) | 100.00 | 75.00 | 26.45 | 24.95 | 59.00 | 20.00 | 30.60 | 114.66 | 15.00 | 175.00 | 10 |
25(32) | 125.00 | 90.00 | 32.55 | 31.90 | 70.00 | 25.00 | 39.10 | 127.56 | 15.00 | 190.00 | 10 |
32(40) | 135.00 | 100.00 | 38.60 | 39.90 | 85.40 | 30.00 | 44.20 | 157.51 | 16.00 | 195.00 | 10 |
40(50) | 140.00 | 105.00 | 48.70 | 49.90 | 98.90 | 40.00 | 52.20 | 166.00 | 17.00 | 220.00 | 10 |
50(63) | 155.00 | 120.00 | 60.80 | 62.90 | 122.20 | 50.00 | 71.30 | 197.50 | 21.00 | 234.00 | 10 |
65(75) | 175.00 | 140.00 | 76.80 | 74.90 | 158.60 | 63.00 | 82.80 | 241.20 | 23.00 | 300.00 | 10 |
80(90) | 185.00 | 150.00 | 89.60 | 89.90 | 192.10 | 80.00 | 99.30 | 261.20 | 23.50 | 320.00 | 10 |
100(110) | 210.00 | 175.00 | 114.70 | 109.90 | 223.60 | 100.00 | 115.20 | 286.68 | 23.50 | 387.00 | 10 |
MATERIAL TABLE |
No. | Parts | Quantity | Material |
01 | Lever | 1 | PVC-U/PP+GF30% |
02 | Shaft | 1 | PVC-U/PVC-C |
03 | Nut | 2 | PVC-U/PVC-C |
04 | One piece flange | 2 | PVC-U/PVC-C |
05 | Body | 1 | PVC-U/PVC-C |
06 | Ball | 1 | PVC-U/PVC-C |
07 | Ball seat | 2 | PTFE/TPE+PP |
08 | O-ring1 | 2 | EPDM/FPM |
09 | Seal-Carrier | 1 | PVC-U/PVC-C |
10 | O-ring2 | 2 | EPDM/FPM |
11 | O-ring3 | 1 | EPDM/FPM |
12 | Fixed snap ring | 2 | PVC-U/PVC-C |
13 | O-ring4 | 2 | EPDM/FPM |
Packing Details |
No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
1 | Flanged true union ball valve | DN15 | 24 | 273.46 | 43 | 34 | 36 |
2 | DN20 | 18 | 395.23 | 38 | 37 | 39 |
3 | DN25 | 18 | 561.00 | 42.5 | 42 | 38.5 |
4 | DN32 | 8 | 855.14 | 44.5 | 33 | 34.5 |
5 | DN40 | 12 | 1290.19 | 46.5 | 39.5 | 57.5 |
6 | DN50 | 8 | 1846.13 | 50 | 37 | 42 |
7 | DN65 | 2 | 3801.16 | 42.5 | 42 | 38.5 |
8 | DN80 | 2 | 5198.38 | 42.5 | 42 | 38.5 |
9 | DN100 | 1 | 7857.96 | 47 | 33 | 40 |
Application
1. Water project in construction.
2. Water treatment for swimming pool.
3. Water project in pisciculture.
4. Irrigation for agriculture.
Service Advantage:
1. nearly 30 years in manufacturing and exporting PVC/CPVC piping system
2. Professional technical support and solution by Engineering department.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Professional service, according customer's requirement, listen to customer suggestion

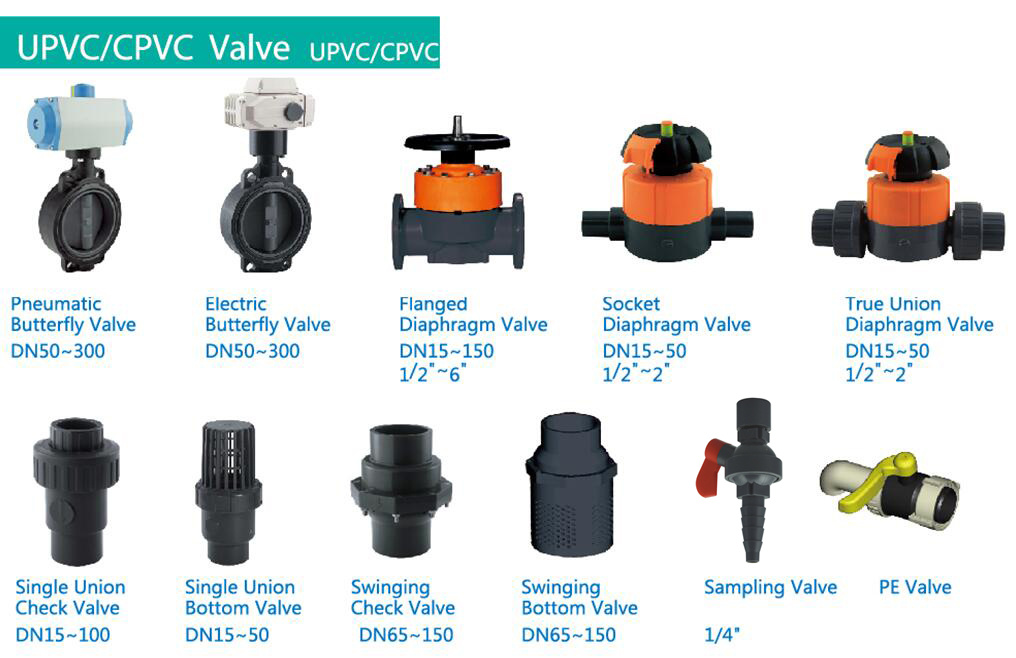

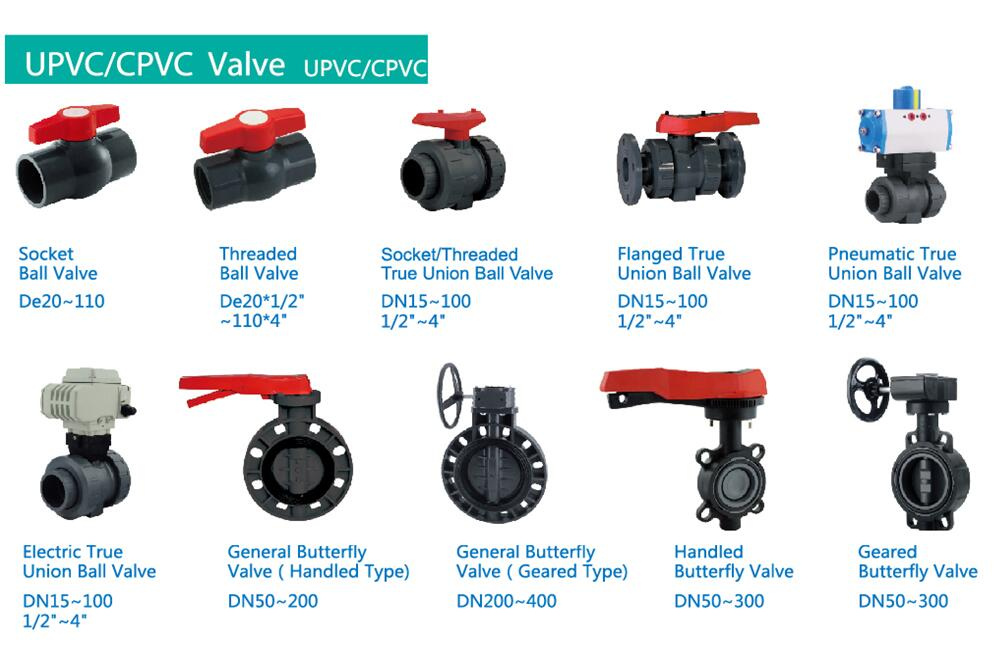

6. Full range of piping product, pipe, fitting and valve, of DIN, JIS, ANSI, etc. size from 20mm to 800mm
7. We can provide your the samples before mess order
Jiangsu Huasheng Plastic Co., Ltd was founded in 1988, which specialized in moulding, Precision Injection, UPVC, CPVC pipe, fittings and Valves in DIN, ISO, ASTM standard on water supply and industry with NSF, CE, ISO, SGS etc certificates

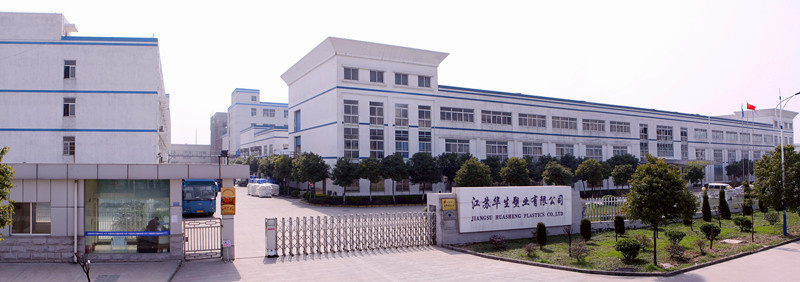

Currently, the annual production has reached a sales turnover of USD 30, 000, 000, covering 250, 000 square meters of two factories, over 170 injection machines, 20 pipe extruding lines, 80 mechanical processing equipments and more than 500 laborers.
