| Price: | US $ 1/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 8200010101 |
|---|---|
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Fixed Ball Valve |
| Application: | Household Usage |
| Material: | UPVC |
| Function: | Liquid Control |

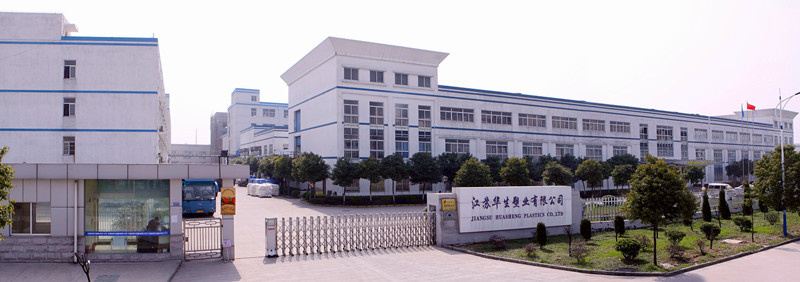

Jiangsu Huasheng Plastic Co.ltd is founded in 1988 ,which specialized in moulding,Precision injection,UPVC,CPVC pipe, fittings and Vales in DIN,ISO,ASTM standard on water supply and industry with CE,ISO,SGS etc certificate

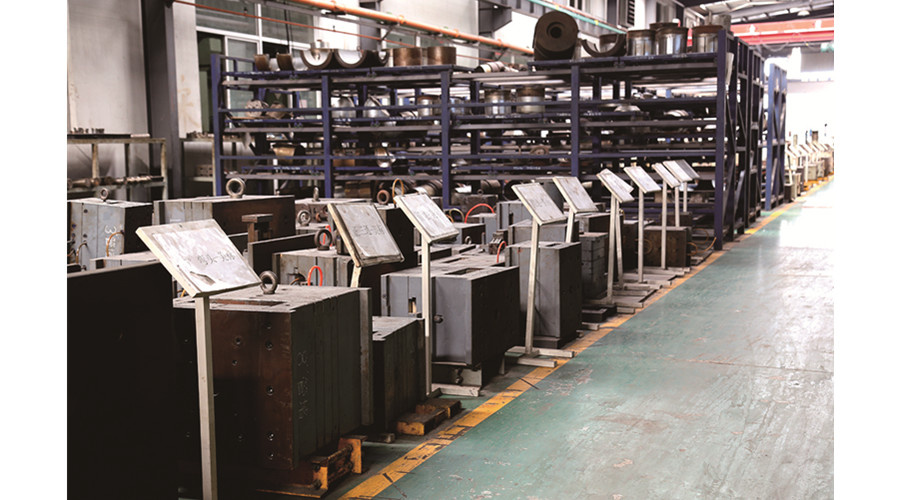

Currently, Our annual production have reached a sales turnover of USD 30,000,000, covering 250,000 square meters two factory , over 170 injection machines, 20 pipe extruding lines,80 mechanical processing equipment and more than 500 laborers
and our annual production capacity have been exceeded over 60,000 tons,our storage is over 10,000,000 USD, we have already exported our products to Pakistan, India,Philippines,Turkey, Southeast Asia area , Dubai
| Description: | |

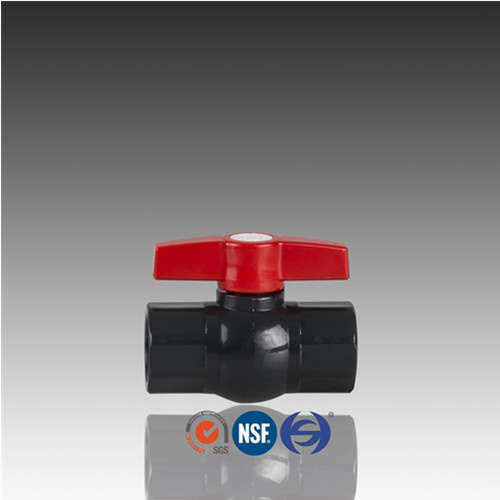

| Name of product | PVC Threaded Ball Valve |
| Materials | PP/UPVC/TPE+PP |
| Dimension | 1"~4" |
| Valve Color | Dark Grey/Light Grey /Blue/White |
| connect | female thread, BSPT |
| Pressure data | 10kg/16kg |
| Usage area | for water supply, drainage or aquaculture |
| Standards | DIN, BS, ANSI, CNS; NPT, BSPT, JIS |
| Name of Certification | ISO9001,SGS,CE, ISO14001 |
| Temperature Range | -20ºC~60ºC |
| Delivery | 3~20 days after receiving the deposit, depends on the quantity |

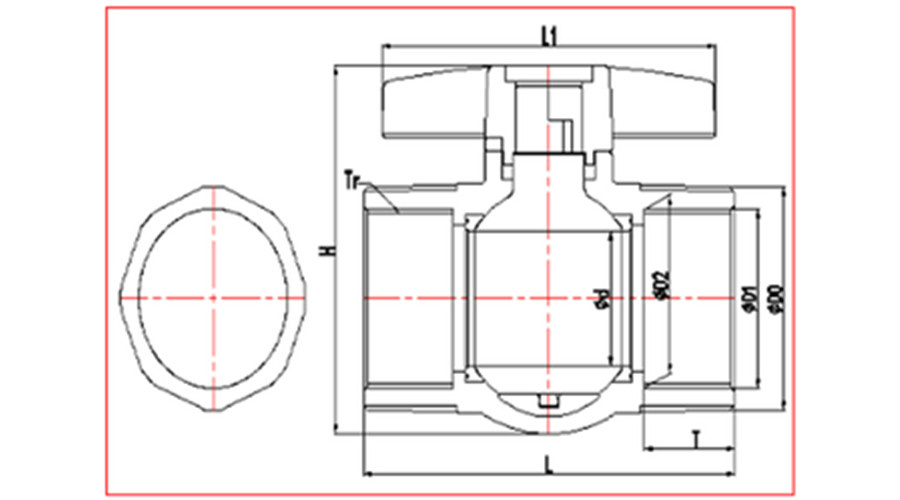

| (DIN)VALVE | |||||||||
| Dimension(mm) | |||||||||
| Size(De*") | D0 | D1 | D2 | d | T | H | L1 | L | Tr |
| 20*1/2" | 31.60 | 18.35 | 18.76 | 15.00 | 17.00 | 60.00 | 70.00 | 74.00 | 1/2" |
| 25*3/4" | 37.70 | 23.90 | 24.10 | 20.00 | 19.50 | 68.00 | 80.00 | 85.00 | 3/4" |
| 32*1" | 45.50 | 30.70 | 31.00 | 25.00 | 23.00 | 80.00 | 92.00 | 98.00 | 1" |
| 40*1-1/4" | 54.80 | 39.10 | 39.60 | 30.00 | 27.00 | 90.00 | 112.00 | 112.50 | 1-1/4" |
| 50*1-1/2" | 62.00 | 44.50 | 45.00 | 34.00 | 32.00 | 105.00 | 114.00 | 128.00 | 1-1/2" |
| 63*2" | 74.80 | 56.10 | 56.60 | 45.00 | 36.00 | 123.00 | 134.00 | 149.00 | 2" |
| 75*2-1/2" | 92.20 | 71.96 | 72.20 | 55.00 | 40.00 | 156.00 | 190.00 | 168.00 | 2-1/2" |
| 90*3" | 106.70 | 54.40 | 85.10 | 67.00 | 48.00 | 178.00 | 220.00 | 195.00 | 3" |
| 110*4" | 135.20 | 109.50 | 110.00 | 93.00 | 54.00 | 208.50 | 250.00 | 244.00 | 4" |
| Packing Details | |||||||
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Threaded ball valve | De20 | 200 | 98.98 | 34.5 | 32 | 32.5 |
| 2 | De25 | 160 | 128.09 | 36.5 | 31.5 | 37 | |
| 3 | De32 | 90 | 205.59 | 42.5 | 29 | 32 | |
| 4 | De40 | 60 | 334.60 | 39 | 29 | 36 | |
| 5 | De50 | 40 | 444.56 | 45 | 32 | 27.5 | |
| 6 | De63 | 20 | 692.77 | 38.5 | 29 | 32 | |
| 7 | De75 | 15 | 1140.22 | 50.5 | 44.5 | 25.5 | |
| 8 | De90 | 10 | 1863.48 | 54 | 40.5 | 29.5 | |
| 9 | De110 | 6 | 3073.11 | 51 | 37 | 35 | |
Why choose HUASHENG?
1. We have each valve part and can manufacture them, so our price and quality are good, the lead time is short;
2. We have the ability to make mould, can provide OEM survice according to customer's requirements;
3. Many international well-known company have long-term cooperation relation with us;
4. We can guarantee the quality, because we have each valve tested before delivery;
5. We are the expert in piping manufacture and can provide the most professional and efficent service;
6. Make the change and improvement according the customer's requirement, provide eveyone the impressive service.
| Test before delivery | |||||||||
| Test item | Technical index | Test result | Single item result | ||||||
| Outside look | Valve body: the surface shoul d be smooth, no crack, no desquamate, no bur, no obvious cold spot, no obvious color difference or change | Valve body: the surface should be smooth, no crack, no desquamate, no bur, no obvious cold spot, no obvious color difference or change | Qualified | ||||||
| Oven test | No bubble, no crack in joint line | No bubble, no crack in joint line | Qualified | ||||||
| Drop test | Free fall from 1m high, no crack | Free fall from 1m high, no crack | Qualified | ||||||
Flattening test | By the 50mm/min+5mm/min speed, flatten the valve socket by 10% shape change, no crack | By the 50mm/min+5mm/min speed, flatten the valve socket by 10% shape change, no crack | Qualified | ||||||
| Seal test | 1.The valve is off, under 1.6MPa pressure, keep this condition for 5minutes, no leakage from two sockets and o-ring of handle 2. The valve is on, under 1.6MPa pressure, keep this condition for 5 minutes, no leakage from o-ring of handle | 1.The valve is off, under 1.6MPa pressure, keep this condition for 5minutes, no leakage from two sockets and o-ring of handle 2. The valve is on, under 1.6MPa pressure, keep this condition for 5 minutes, no leakage from o-ring of handle | Qualified | ||||||
| Final result | Qualified | ||||||||
