DIN ASTM Standard Pneumatic Actuated PVC Ball Valve with Union

Name: DIN ASTM Standard Pneumatic Actuated PVC Ball Valve with Union
Brand: tool-buy.com
SKU: 796367265
Availability: InStock
Rating: 4.5 (25 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

HUASHENG PIPELINE TECHNOLOGY CO., LTD.

Showroom Product Company Profile

Prod Model:	8214012001
Channel:	Straight Through Type
Structure:	Fixed Ball Valve
Type:	Fixed Ball Valve
Application:	Household Usage
Material:	UPVC
Connection Form:	Union
Function:	Liquid Control

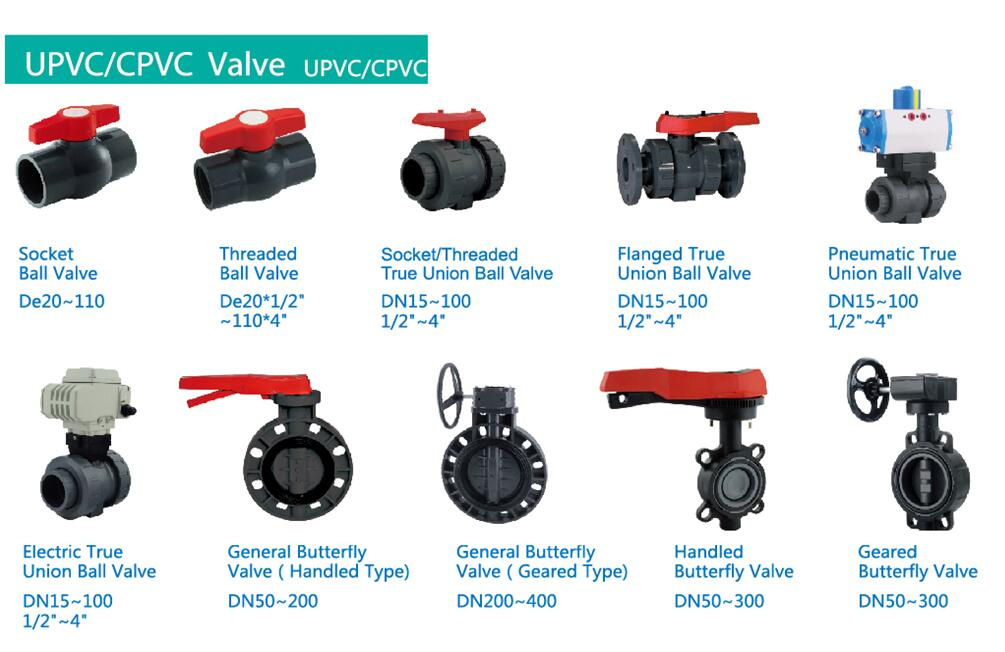

Product Description

Jiangsu Huasheng Plastic Co.ltd is founded in 1988 ,which specialized in moulding,Precision injection,UPVC,CPVC pipe, fittings and Vales in DIN,ISO,ASTM standard on water supply and industry with CE,ISO,SGS etc certificate

Currently, Our annual production have reached a sales turnover of USD 30,000,000, covering 250,000 square meters two factory , over 170 injection machines, 20 pipe extruding lines,80 mechanical processing equipment and more than 500 laborers

and our annual production capacity have been exceeded over 60,000 tons,our storage is over 10,000,000 USD, we have already exported our products to Pakistan, India,Philippines,Turkey, Southeast Asia area , Dubai

Description:
Items	PVC Pnuematic Ball Valve
Material parts	UPVC/TPE/EPDM/FPM/STEEL/IRON
Range of Size	20mm~110 mm
Color range	Light Grey
connecting methods	Socket/thread/true union
Pressures	10bar/16bar/1.0mpa/1.6mpa
Power	pneumatic actuate
Standard name	DIN, BS, ANSI, CNS, JIS; NPT, BSPT
Certification	ISO14001,ISO9001,SGS,CE
Place of Origin	Jiangsu, China (Mainland)
Packing	carton, polybag, color box or customized

(DIN )VALVE

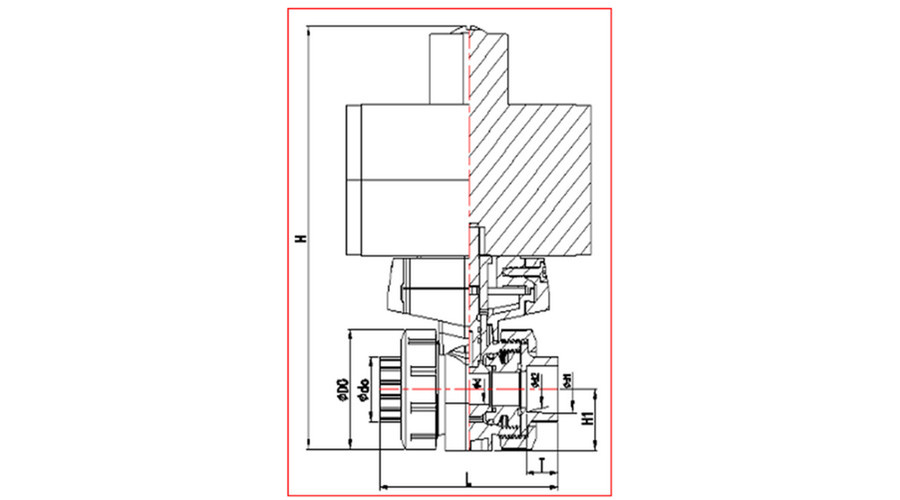

Dimension (mm)										Working Pressure (kg/Cm2)
Size DN (De)	D0	d0	d1	d2	d	H1	H	T	L	Working Pressure (kg/Cm2)
15(20)	51.50	27.40	20.30	19.95	15.50	26.30	156.50	17.00	95.50	10
20(25)	59.00	32.70	25.30	24.95	20.50	30.60	194.00	19.50	109.10	10
25(32)	70.00	41.30	32.30	31.90	26.00	39.10	210.00	23.00	122.60	10
32(40)	85.40	49.60	40.35	39.90	33.00	44.20	243.40	27.00	147.30	10
40(50)	98.90	60.20	50.35	49.90	39.00	52.20	268.90	32.00	158.80	10
50(63)	122.20	76.00	63.40	62.90	51.00	71.30	301.20	38.50	182.80	10
65(75)	158.60	89.60	75.40	74.90	64.00	82.80	373.60	44.50	234.00	10
80(90)	192.10	105.40	90.50	89.90	81.00	99.30	430.10	52.00	255.00	10
100(110)	223.60	128.40	110.60	109.90	99.00	115.20	493.60	62.00	297.00	10

(ASTM)VALVE
Dimension (mm)										Working Pressure (kg/Cm2)
Size (")	D0	d0	d1	d2	d	H1	H	T	L	Working Pressure (kg/Cm2)
1/2"	51.50	27.40	21.54	21.23	15.50	26.30	156.50	23.22	107.90	10
3/4"	59.00	32.70	26.87	26.57	20.50	30.60	194.00	26.40	122.90	10
1"	70.00	41.30	33.66	33.27	26.00	39.10	210.00	29.57	135.70	10
1-1/4"	85.40	49.60	42.42	42.04	33.00	44.20	243.40	32.75	158.80	10
1-1/2"	98.90	60.20	48.56	48.11	39.00	52.20	268.90	32.00	166.80	10
2"	122.20	76.00	60.63	60.17	51.00	71.30	301.20	39.10	182.80	10
2-1/2"	158.60	89.60	73.38	72.85	64.00	82.80	373.60	44.50	236.00	10
3"	192.10	105.40	89.31	88.70	81.00	99.30	430.10	48.60	249.00	10
4"	223.60	128.40	114.76	114.07	99.00	115.20	493.60	58.15	289.00	10

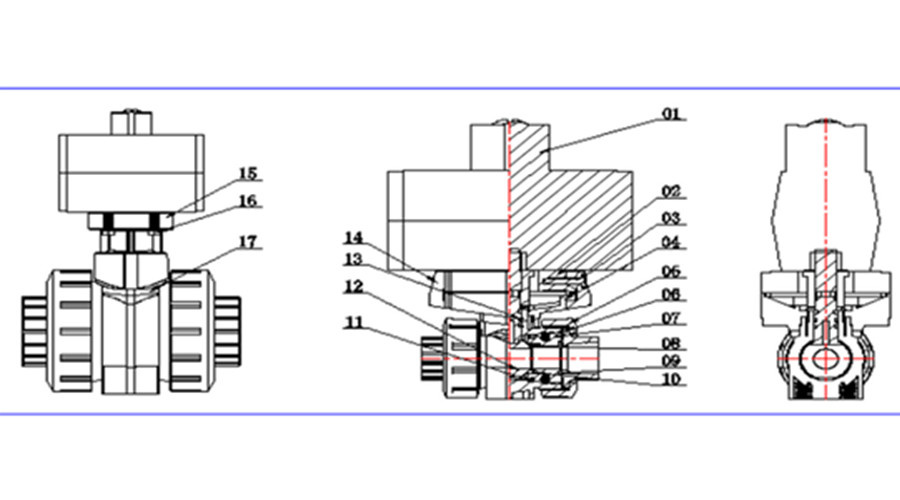

No.	Parts	Quantity	Material
01	Pneumatic actuator	1	aluminum alloy
02	Connector top cover	1	PP+GF30%
03	Bolt	2	Stainless Steel
04	Connector bottom cover	1	PP+GF30%
05	Nut	2	PVC-U/PVC-C
06	Faucet	2	PVC-U/PVC-C
07	Seal-carrier	1	PVC-U/PVC-C
08	Ball seat	2	PTFE/TPE+PP
09	O-ring 1	2	EPDM/FPM
10	O-ring 2	2	EPDM/FPM
11	O-ring 3	1	EPDM/FPM
12	Ball	1	PVC-U/PVC-C
13	O-ring 4	2	EPDM/FPM
14	Fixed buckle	2	PP+GF30%
15	Connection	1	PP+GF30%
16	Bolt	4	Stainless Steel
17	Body	1	PVC-U/PVC-C

No	Description	Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
1	Pneumatic ture union ball valve	DN15	4	1275.78	42	29	22
2		DN20	4	1337.38	42	29	22
3		DN25	4	1450.68	62	55	21
4		DN32	4	1638.12	62	55	21
5		DN40	4	1885.40	62	55	21
6		DN50	4	3211.45	62	55	21
7		DN65	1	4822.40	50	35.5	24
8		DN80	1	6167.70	50	35.5	24
9		DN100	1	8899.00	54	40	28
