| Prod Model: |
HX1540 |
| Design System: |
Auto-CAD, Caxa |
| Nesting Software: |
Fastcam |
| Power Supply: |
USA Hypertherm, China Huayuan |
| Control System: |
Starfire, Flmc-F230A, Start, Nc-Studio |
| File Transmission: |
USB |
| Voltage: |
380V/220V |
Product Description
Double type CNC plasma cutting and drilling machine,table type and gantry type plasma cutterProduct introduction:1. CNC plasma and pipe cutting machine is a precision mechanical transmission device with thermal cutting technology combined with a high efficiency, high precision, high reliability. With inimitable man-machine interface, operation is simple and easy , can cut out various shapes of complex sheet metal quickly and accurately, especially suitable for automatically, thin steel non-ferrous metals, stainless steel and carbon steel plate cutting. It adopts an integrated modular design, quick installation, convenient movement.
2, the whole bed adopts steel structure welding after finishing, whole temper, sufficient to eliminate welding stress, stable and reliable performance. The beam and the end beam used aluminum after finishing, good movement performance. Y axis with bilateral synchronous drive system. To ensure the machine speed and accuracy.
3, X and Y axis guide rail with domestic or imported linear guide rail, high precision, good guide. Drive rack, gear by the professional manufacturer of custom, The surface carburizing and quenching, high precision.
4, LCD screen, all of the use of Chinese /english characters display. Below the display show the operation method at any time, so the operator only needs simple training, the operation can be carried out, using very easy to understand.
5, the drive system can choose servo drive or stepping driving, according to the requirement of customers can choose the world's top brand from Japan -- Panasonic AC servo or stepper motor drive, can be more stable running speed, a wider range of speed transmission, short acceleration time;
6, the machine has a smoke dust removal device and exhaust type unique cutting worktable and the slag storage device, to create a good working environment.
7, With high response sensitivity torch height control,it can adjust automatically choose the best cutting distance, in order to ensure the accuracy of the work piece cutting effect .
8, according to user requirements can be equipped with a variety of plasma cutting power supply, to meet the different metal materials.
Parameter:| |
| Model | 1325 | 1330 | 1340 | 1530 | 1540 | 1560 |
| Cutting width(mm) | 1300 | 1300 | 1300 | 1500 | 1500 | 1500 |
| Cutting length(mm) | 2500 | 3000 | 4000 | 3000 | 4000 | 6000 |
| Control system | SHANGHAI FLMC-F2300A/BEIJING STARFIRE or customed |
| Cutting thickness | According to the plasma power supply |
Travelling speed
(mm/min) | 20000 |
| Cutting speed(mm/min) | According to the material thickness |
| Cutting table | Remove dust |
Feature
One machine
Two function

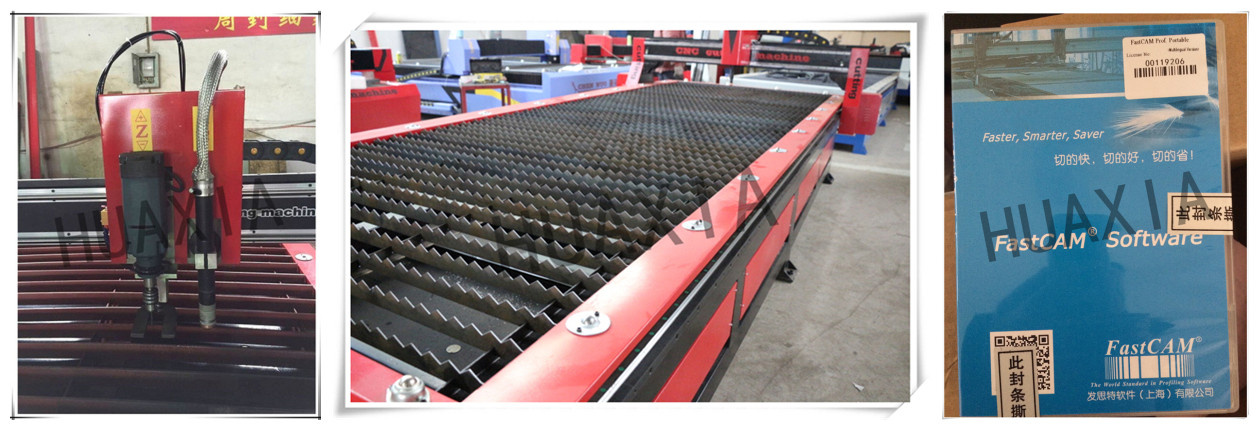

Drilling bit and plasma torch Sawtooth table FASTCAM software

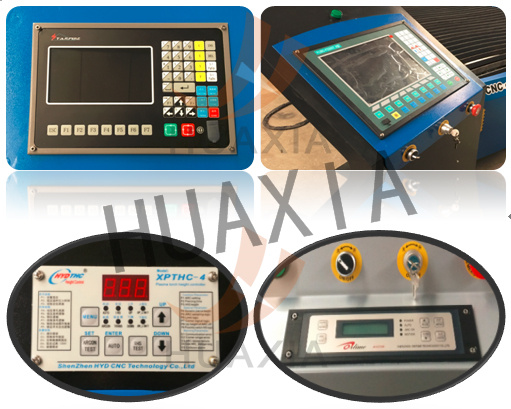

Control systerm and Height controller

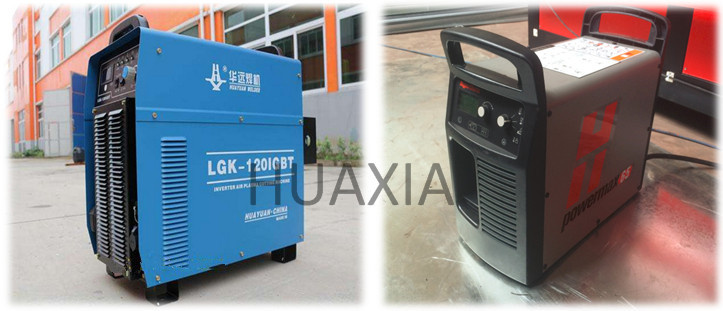

Power supply

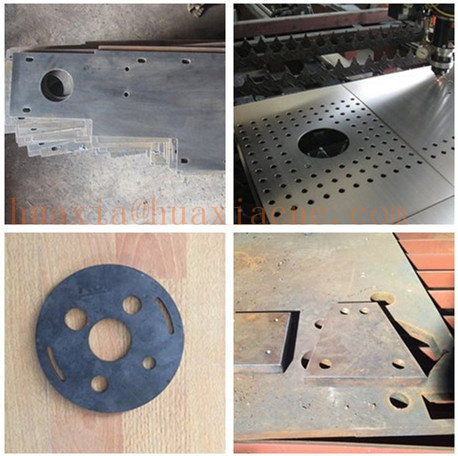

Sample
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect.
3.How can i get the machine? CIF:Almost finish production →order shipment and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destination.
FOB:Almost Finish production→tell us your shipping agent contacts and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destination.
DDP:Almost finish production →order shipment and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destination-clearance-delivery machine to your place.Contact:Jinan Huaxia Machinery Equipment Co.,LtdConnect Person:ClaireTel: (+86)0531-62308600 : +8618340056306Imo: +8618340056306Website:http://www.huaxiacnc.com/en/Packaging Details:Packing:plywood case after packed by Wrapping filmDelivery Detail:within 15 working days after recieved the deposit
