H Beam CNC Coping Machinery Plasma Metal Cutter

H Beam CNC Coping Machinery Plasma Metal Cutter
Price: US $ 140000-165000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: KR-XH
Plasma Cutting Thickness: 2-40mm
Flame Cutting Thickness: 6-60mm
H Beam Size: 100-1000mm
Angle Beam Size: 75-400mm
Channel Beam Size: 75-400mm
Plasma Bevel Angle: ±45°
Flame Bevel Angle: ±55°
Motor: Japan Servo Motor
Electrical Components: France Schnider
Control System: Kasry Pip

Product Description

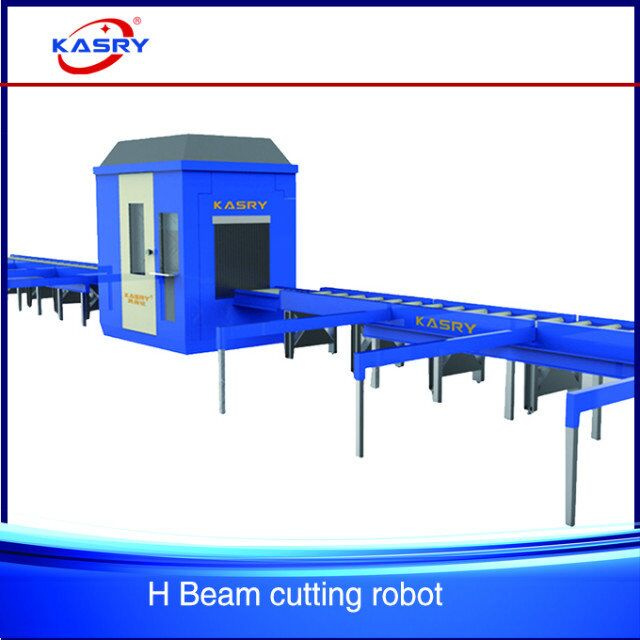

KR-XH H Beam Plasma Cutting Machine CNC with SGS



 Brief introduction

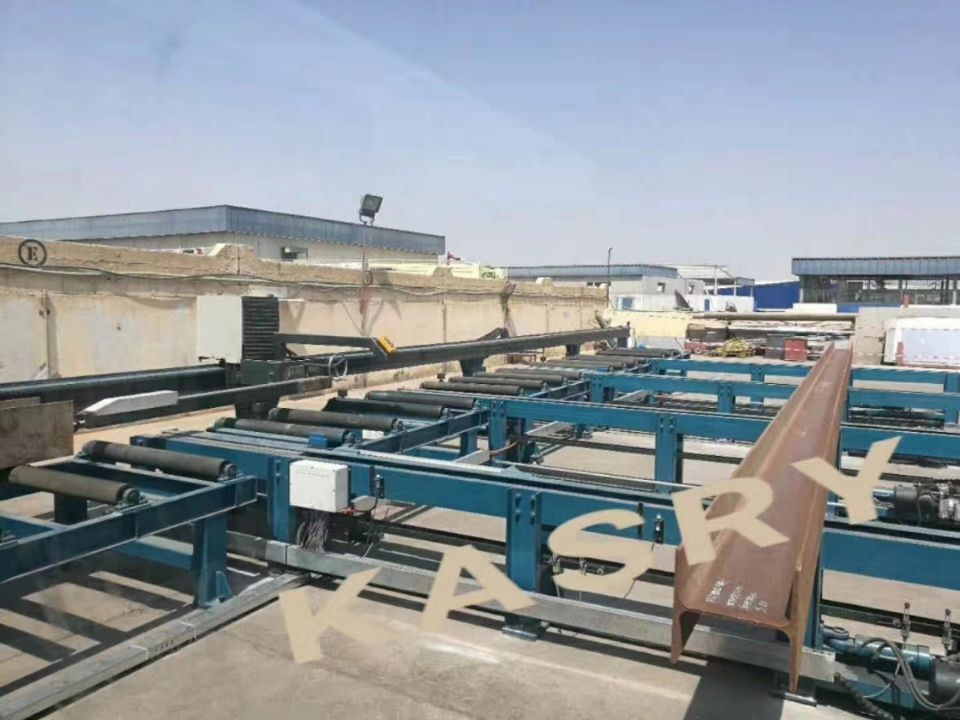

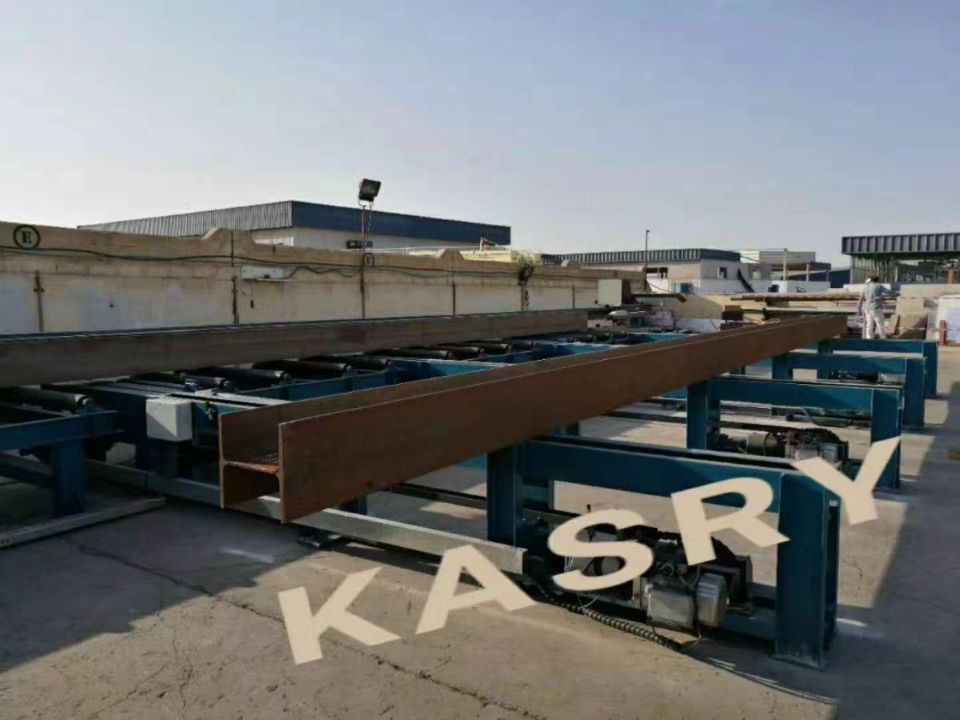

KR-XH professional beam cutting line consists of storage rack,material-feeding equipment,feeding convoyer roller bed,
convoyer clamp,convoyer liner guide,cutting
unit,material discharge platform,finished products rack and separate control
system
platform etc.

Material-feeding equipment transport material from storage rack to feeding convoyer roller bed and direct to cutting unit
under the direction of liner guide and convoyer clamp.


When cutting done,material direct to finished products rack on roller bed and parts towards to material discharge plateform.


Application


Material :Carbon steel , stainless steel ,aluminum
Type :H beam , channel beam , angle beam;
Industry :Especially for steel structure construction, shipbuilding, marine engineering, web structure, building walls, bridges, towers and mechanical engineering industries.


Parameters
H beam100-1000mm(customized according to customer demands)
Angle beam100-400mm(customized according to customer demands)
Channel beam 100-400mm(customized according to customer demands)
Cutting methodplasma+oxygen cutting
Effective cutting length12000mm
Cutting length deviation±1.5mm
Workpiece cutting processFixed-length straight cutting;fixed-length inclined cutting and end socket function
Plasma power sourceHypertherm or Kjellburg
Oxygen cutting thickness6-60mm
Plasma cutting speed3500mm/min
Plasma bevel thicknessDepends on plasma power
Oxygen beveling thickness6-40mm
control systemKASRY
ComputerTaiwan advantech industrial computer
Driving motorJapan panasonic servo motor with reducer
SoftwareKASRY PIP
Load5T
                         Weight and size
Size26000mm*6000mm*900mm(customized)
Shiping2*40HC
Weight17T
                        Working condition
Working pressure of compressed airAbove 7mpa
Required gas flow of plasma4500L/H
Working enviromentVentilation,no concussion
Acceptable temperature around-20°-50°
Voltage220v  50/60HZ
Types of gasPlasma cutting:Air;
Oxygen cutting:Oxygen+Acetylene/Oxygen+prop

Configuration of machine
No.Main parts of machineBrand&modelBrand belong
1Equipment bodyKASRYChina
2Industrial PCAdvantechTaiwan,China
3Control system&softwareKASRYChina
4Servo drive motorPanasonicJapan
5ReducerNewstartChina
6Plasma power sourceHypertherm or KjellburgUSA or Germany
7Electrical componentsSchniderFrance
8CableShuangyingGermany
9Flame torchLongtengChina
10Dust collecting systemKASRYChina

Cutting samples




Videos library
https://www.facebook.com/100011440222713/videos/507528189638517?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D   (H beam plasma cutting video)

https://www.facebook.com/100011440222713/videos/489969841394352?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D     (KR-XF8 square tube plasma cutting video)

https://www.facebook.com/100011440222713/videos/489992804725389?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D    (KR-XY5 pipe plasma cutting video)

https://www.facebook.com/100011440222713/videos/485824325142237?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D   (KR-XY5 big diameter roller bench type plasma cutting video)


https://youtu.be/FIsoRaSbXUU?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D  (square tube plasma cutting with automatically material feed-in/out roller)

https://www.facebook.com/100011440222713/videos/405886636469340/?lipi=urn%3Ali%3Apage%3Ad_flagship3_profile_view_base_recent_activity_details_shares%3BsxYWlODzRm2DaMxo899M5A%3D%3D   (High-difinition type plasma machine for thick plate cutting)


After-sale service


1.During warranty time,KASRY will provide free replacement parts when default happend.
2.Engineers will provide technical support through Email or Phone within 3 days
3.Engineers can go to customer work site for technical support if in need but  Tickets&Accommodation will be on customer side.
