| Prod Model: |
KR-XH H beam cutting robot |
| Gas: |
Oxygen Acetylene Propane |
| Voltage: |
AC220V AC380V |
| Cutting Speed: |
0-5000mm/Min |
| Cutting Thickness: |
1-50mm |
| Control Type: |
CNC |
| Cutting Width: |
<2500mm |
Product Description

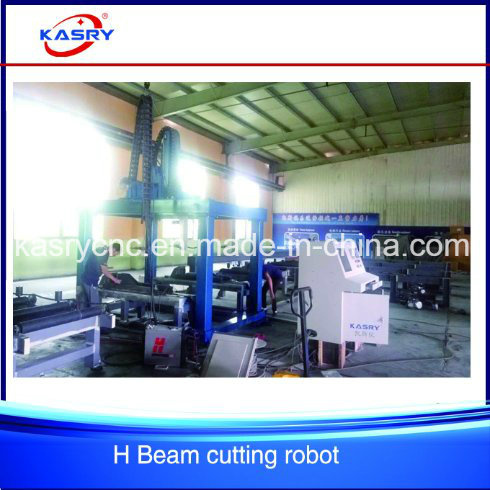

KR-XH H beam cutting robot
Machine video:
https://youtu.be/L3BaU7HDZE4
Application :
Material :Carbon steel, Stainless steel and other alloys.
Type :H beam , channel beam , angle beam;
Industry :Especially for steel structure construction, shipbuilding, marine engineering, web structure, building walls, bridges, towers and mechanical engineering industries.
Equipment parameters:
| H beam | 110mm-1000mm Can be customized |
| Angle beam | 100mm-400mm Can be customized |
| Channel beam | 100mm-400mm Can be customized |
| Cutting length | 12m , Can be customized |
| Cutting method | Flame + Plasma (200A) |
| Cutting Thickness | Flame:6-60mm;Plasma:1-30mm |
| Moving speed | 20-6000mm/Min |
| Cutting speed | 10-6000mm/Min |
| Plasma torch anti-collision protection system | Yes |
| Driving method | Servo |
| Cutting length accuracy | ±1.5mm |
| Repeatability X,Y,Z | 0.02mm |
| Max weight of pipe | 3500 KG |
| Power | AC380V/ 50HZ three-phases |
| Input Power | Acetylene ,Propane |

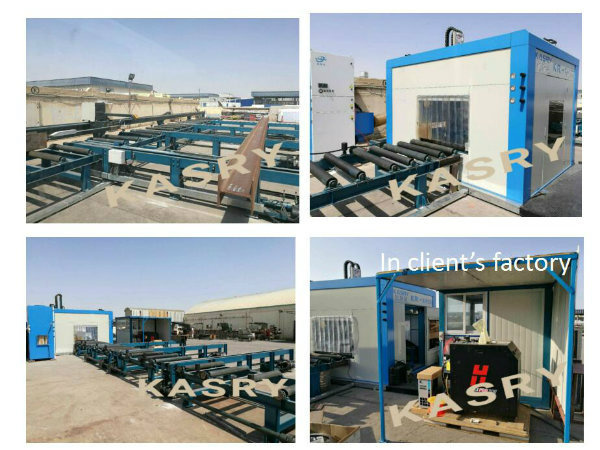

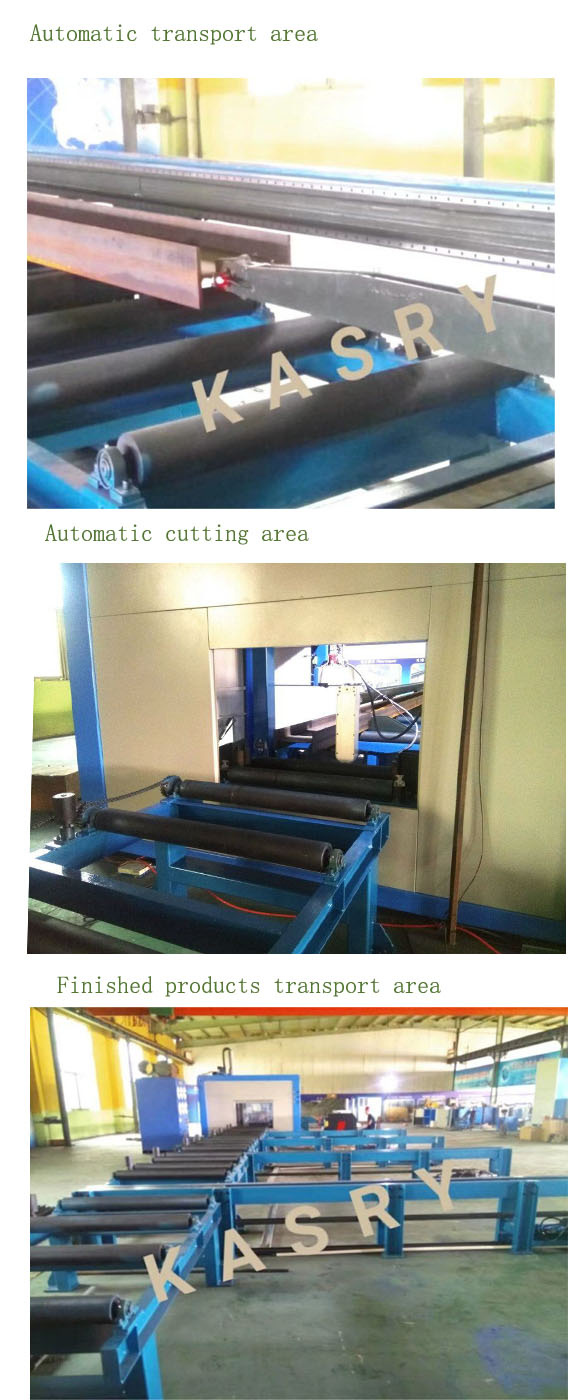

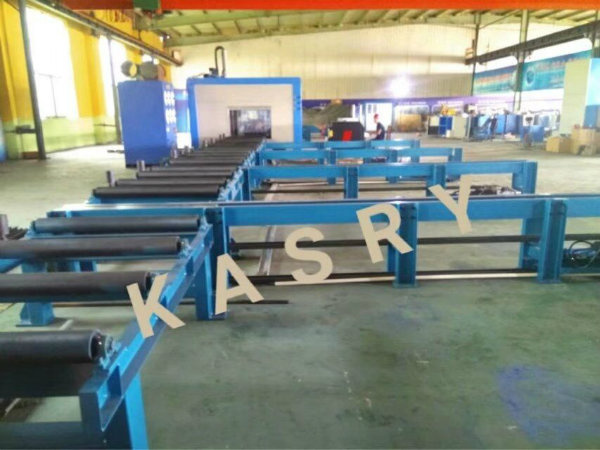

Machine introduction--1 .The cutting line can be automatic feeding, automatic cutting and automatic output finished workpieces. In the past, the work required at least 3 people,now it could easily be done by 1person,reduced manpower costs greatly.2 .The total length of the whole production line is 26m, in which the cutting station 2m and feeding roller table are 14m,to ensure the max cutting length is 12m, so as to avoid waste of raw materials.3 .Support TEKLA and AUTOCAD, only need to input simple parameters, can be online and offline programming, just need 2 seconds to generate G code, which greatly improves the cutting efficiency.4 . 3D analog image, you can quickly automatic positioning, pause, add and subtract speed, it can also follow the original path back cutting, big way to improve cutting accuracy.Machine detail

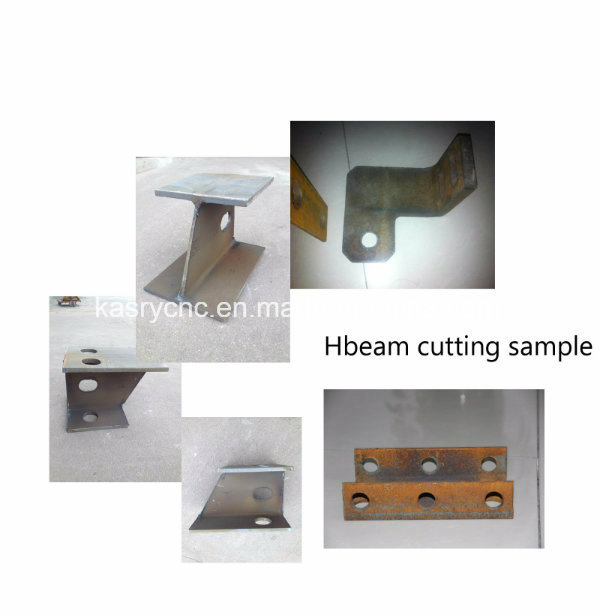

Samples
Cutting machines usually produce much smoke and dust. But don't worry~
For the health of our employees and local environment, we have a special dust removal device to protect them.
Use of the cutting machine chuck port directly air-pumping way of dust removal, when beveling processing, smoke spill will increase, at this time in the cutting head is best to add a suction hood, in order to ensure the dust removal effect.
Quality assurance and service
(1) Two years warranty period after receiving and checking correctly.
(2) After purchasing, we can install and train workers overseas,and give solutions within 6 hours after receiving feedback.
